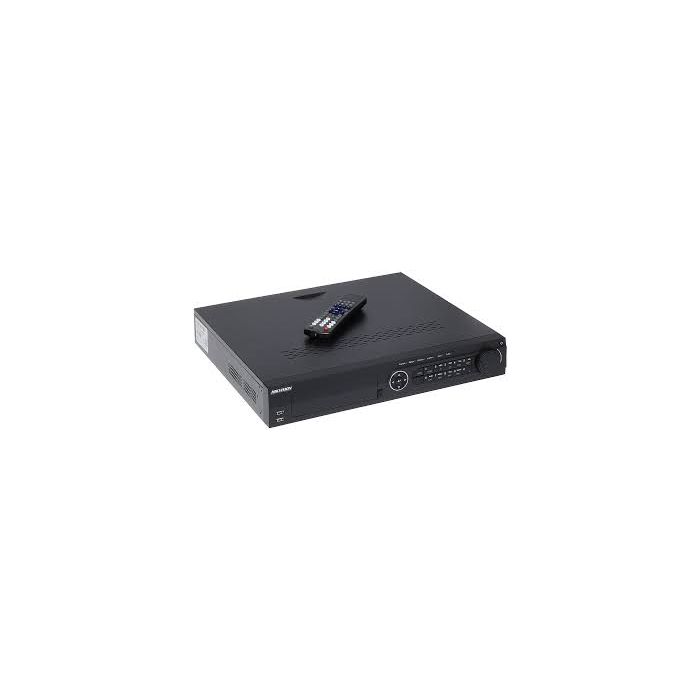

Hikvision DS-7332HQHI-K4 32-channel Turbo HD DVR
Features and Key points :
Model: DS-7332HQHI-K4
Connectable to HD-TVI, AHD, IP, CVI & analogue cameras
Up to 2ch 4MP ONVIF conformant IP cameras input
Internal HDD SATA: Up to 10 TB
Supports HDCVI/AHD/TVI/CVBS/IP
Installation with expert Technician
Best price in Bangladesh
Call for Discount / Price Match policy
Buy Hikvision DS-7332HQHI-K4 32-channel Turbo HD DVR with best Price in Bangladesh
Hikvision DS-7332HQHI-K4 is a 32-channel CCTV DVR capable of recording surveillance video in HD-TVI, HD-CVI, AHD, CVBS and IP standards. The 32 channels can record images from 4 MP Lite (1280 x 1440), 1080p or 720p cameras at 15 fps. In the case of channels 1, 2, 3 and 4, the maximum recording resolution is 3 MP @ 15 fps. For VGA / WD1 / 4CIF / CIF resolutions, the maximum frame rate goes up to 25 fps. Additionally, the DVR can support up to 8 IP cameras (if the analog channels are switched off, the number of IP channels can be increased to 40)..
Can also support 4MP analogue cameras but only on channels 1 to 8
Don't forget that all Hikvision DVRs are now hybrid, meaning they can accept BNC type analogue cameras and IP cameras which have Ethernet type connection and use CAT5e cable. You will need a separate PoE switch if you wish to use IP cameras on any channel of the DS-7332HQHI-K4
This 32 channel Hikvisdion DVR can accept 2 hard drives at 10Tb each. We recommend you use Seagate surveillance or Western Digital Purple hard drives.
Features and Key
- HD-TVI video recording with resolutions of 4 MP Lite (1280 x 1440) or 1080p at 15 fps and 25 fps for 720p and lower resolutions,
- HD-CVI, AHD video recording with the resolution of 2 MP at 15 fps,
- Channels 1, 2, 3, and 4 additionally support 3 MP cameras at 15 fps,
- 1080p lite recording mode: 1280 x 1440 at 15 fps and 960x1080 at 25 fps,
- Support for 32 HD-TVI, AHD, or CVBS cameras and 8 IP cameras (max. 6 MP, Hikvision or Onvif-compliant),
- Analog channels can be replaced by IP channels in a 1:1 ratio,
- Enhanced IP mode (which interferes with VCA functions): 16 IP channels (or 48 with analog channels switched off),
- H265 and H265+ video compression,
- Management via the IE browser
- Channel 0 - possibility to monitor all cameras with minimum network bandwidth use,
- Parallel operation of HDMI1 and VGA outputs up to 1920 x 1080 @ 60 Hz and an independent HDMI2 output (4K @ 30 Hz / 2K @ 60 Hz),
- CVBS video output,
- Searching recordings by alarm events,
- VCA functionality,
- Digital zoom during live monitoring and playback,
- Synchronous playback from 16 channels,
- Support for IPv4, IPv6,
- Monitoring the statuses of LAN, cameras, and hard drives
- Support for POS.
Hikvision DS-7332HQHI-K4 32 Channel Specifications
| Model | DS-7332HQHI-K4 | |
| Recording | ||
| Video compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 | |
| Encoding resolution | When 1080p Lite mode not enabled:4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF When 1080p Lite mode enabled:4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF | |
| Frame rate | Main stream:When 1080p Lite mode not enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/ CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p/WD1/4CIF/VGA/CIF@15fpsFor 1080p stream access: 1080p/720p@15fps; WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled:For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p lite/WD1/4CIF/ VGA/CIF@25fps (P)/30fps (N)For 3 MP stream access: 3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF@15fps For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) | |
| Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) | ||
| Video bit rate | 32 Kbps to 6 Mbps | |
| Dual stream | Support | |
| Stream type | Video, Video & Audio | |
| Audio compression | G.711u | |
| Audio bit rate | 64 Kbps | |
| Video and Audio | ||
| IP video input | 16-ch (up to 48-ch) | |
| Up to 6 MP resolution | ||
| Support H.265+/H.265/H.264+/H.264 IP cameras | ||
| Analog video input | 32-ch | |
| BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection | ||
| HDTVI input | 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60*: The 3 MP signal input is only available for channel 1/2/3/4. | |
| AHD input | 4 MP, 1080p25, 1080p30, 720p25, 720p30 | |
| HDCVI input | 1080p25, 1080p30, 720p25, 720p30 | |
| CVBS input | PAL/NTSC | |
| CVBS output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 | |
| HDMI1/VGA output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | |
| HDMI2 output | 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 ×1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | |
| Audio input | 4-ch, RCA (2.0 Vp-p, 1 KΩ) | |
| Audio output | 1-ch, RCA (Linear, 1 KΩ) | |
| Two-way audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (independent) | |
| Synchronous playback | 16-ch | |
| Network | ||
| Remote connections | 128 | |
| Network protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™,HTTPS, ONVIF, SNMP | |
| Network interface | 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface | |
| Interfaces | ||
| SATA | 4 SATA interfaces | |
| eSATA | Support | |
| Capacity | Up to 10 TB capacity for each disk | |
| Serial interface | RS-232, RS-485 (full-duplex), Keyboard | |
| Alarm in/out | 16/4 | |
| USB interface | Front panel: 2 × USB 2.0Rear panel: 1 × USB 3.0 | |
| General | ||
| Power supply | 100 to 240 VAC | |
| Consumption(without HDD) | ≤ 45 W | |
| Working temperature | -10 °C to +55 °C (+14 °F to +131 °F) | |
| Working humidity | 10% to 90% | |
| Dimensions (W × D × H) | 440 × 390 × 70 mm (17.3 × 15.4 × 2.8 inch) | |
| Weights (without HDD) | ≤ 7 kg (15.4 lb) | |
DVR to Cameras Connection Diagram
HD video signals transfer over coax cables to the DVR (Digital Video Recorder). HD Camera are powered by plugging in the power supply. The DVR then converts the analog signal to digital, compresses it then stores it on a Hard Disk. The information is built into the DVR to handle scheduling, motion detection and digital zooming. To view the footage, monitors are connected to the DVR or you could use an internal network for viewing on PCs. DVR's can also be set up to broadcast over the internet and set up to be password protected. The video for all of the cameras are transmitted as one stream, one IP address.
What is our after-sale service System?
We offer 100% guarantee on our product after sales service. We provide one year service warranty free and we provide life time service just for service fee.
What is the price of Hikvision DS-7232HQHI-K4 32-CH Turbo HD DVR in Bangladesh?
The latest price of Hikvision DS-7332HQHI-K4 32-CH Digital Video Recorder in Bangladesh is 32,000৳. - 40,000৳ You can buy the Hikvision DS-7332HQHI-K4 Digital Video Recorder at best price from our website or visit any of our showrooms.
We Provide Solution of Surveillance System in BD. |
|
|
|
We successfully installed Survillance System to Many Banks and corporate in Bangladesh, some of the projects are: |
||
Banks |
Corporates |
|
…Other many more Projects |
…Other many more Projects |
|
| Call for Price | Yes |
|---|---|
| audio_input | 4ch |
| Brand | Hikvision |
| esata | Yes |
| HDD | 4 SATA |
| Support_resolution | 4k |
| technology | Hybrid |
| video_chanel | 32 Port |
-
