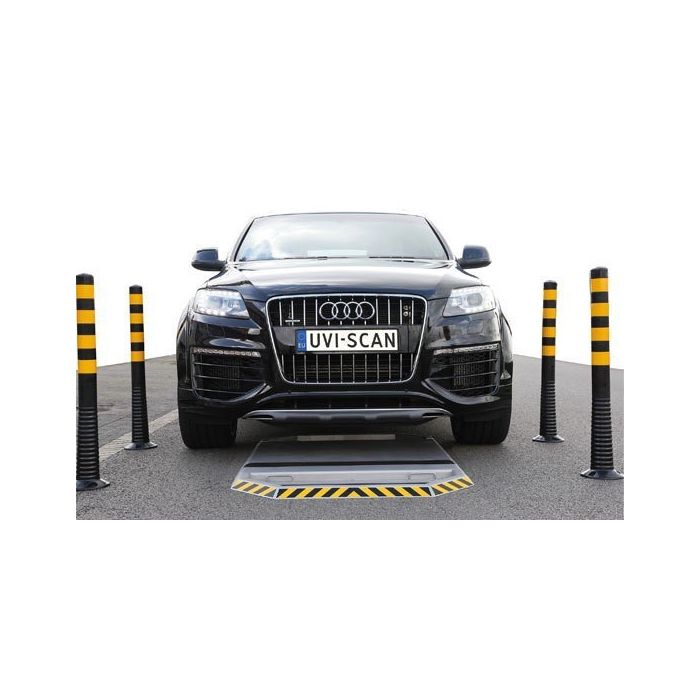

Under Vehicle Scanner Surveillance System (UVSS) in Bangladesh

Under Vehicle Scanner Surveillance System (UVSS) in Bangladesh:

Vehicle inspection is critical to prevent illegal items from entering places with high security. UVSS (Under Vehicle Surveillance System) uses machine vision technology to grab the full and high-resolution image of vehicle chassis. It works with industrial line scan camera.

Under Vehicle System Quick Details:

Place of Origin: Germany

Brand Name: Varito

Model Number: AT3300

Resolution: 5000*2048 pixels

Camera: Sensor: line scan CCD

Power Supply: 24VDC, 3A

Dimension: 1200 x 350 mm

Storing Temperature: Range -25 degree to +70 degree

Scanning Technology: Line scanning

Viewing Angles: ≥170°

Vehicle Speed: 1-65 km/h

Warranty: 1 Year

Under Vehicle Surveillance Features:

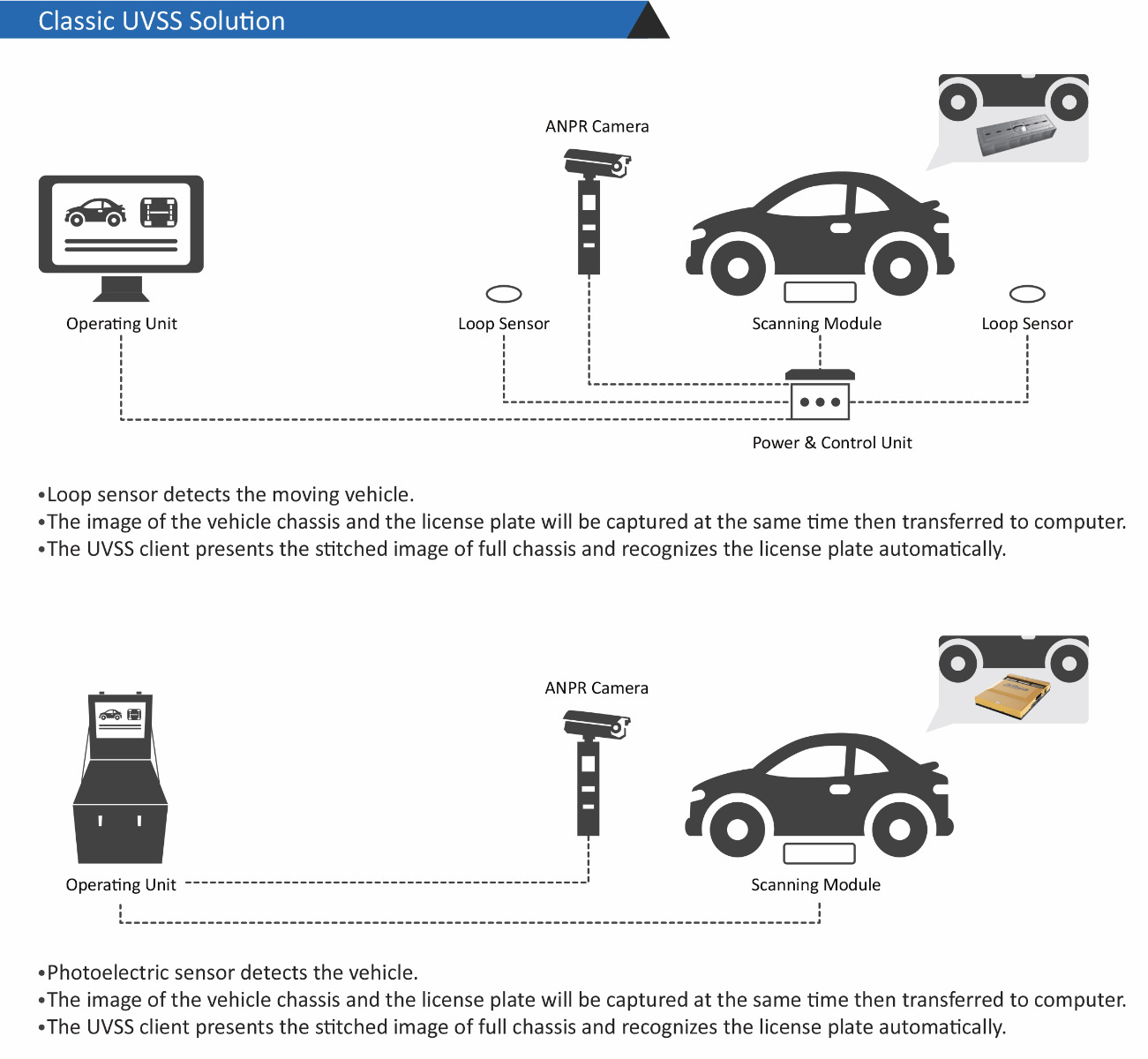

 Under Vehicle System Configuration:

Benefits of Under Vehicle Scanning System

Clear and Sharp Image
• High resolution with 2K per line, max image resolution up to 20MP.

• Low image distortion, high image grey level up to 11.

Full Integration

• Supports automatic number-plate recognition for various countries with ANPR camera.

• Supports barrier integration and centralized management system.

High Efficiency

• Supports max 80km/h vehicle speed.

• Less than 1s to synthesize a whole image.

High Reliability

• Wide working temperature -35°C ~ + 70°C.

• IP68 dustproof and waterproof.

Key Products:

Stationary UVSS Scan Module

Field of view: 180°

Compatibility: Chassis height: ≥60mm(0.19ft)

Chassis width: ≤4500mm(14.8ft)

Load-Bearing: 50t(110000lb)

Illumination: 480W dynamic LED array

Weight: 50kg(110lb)

Dimensions: 1200mmx322mmx290mm (47.2”x12.7”x11.4”)

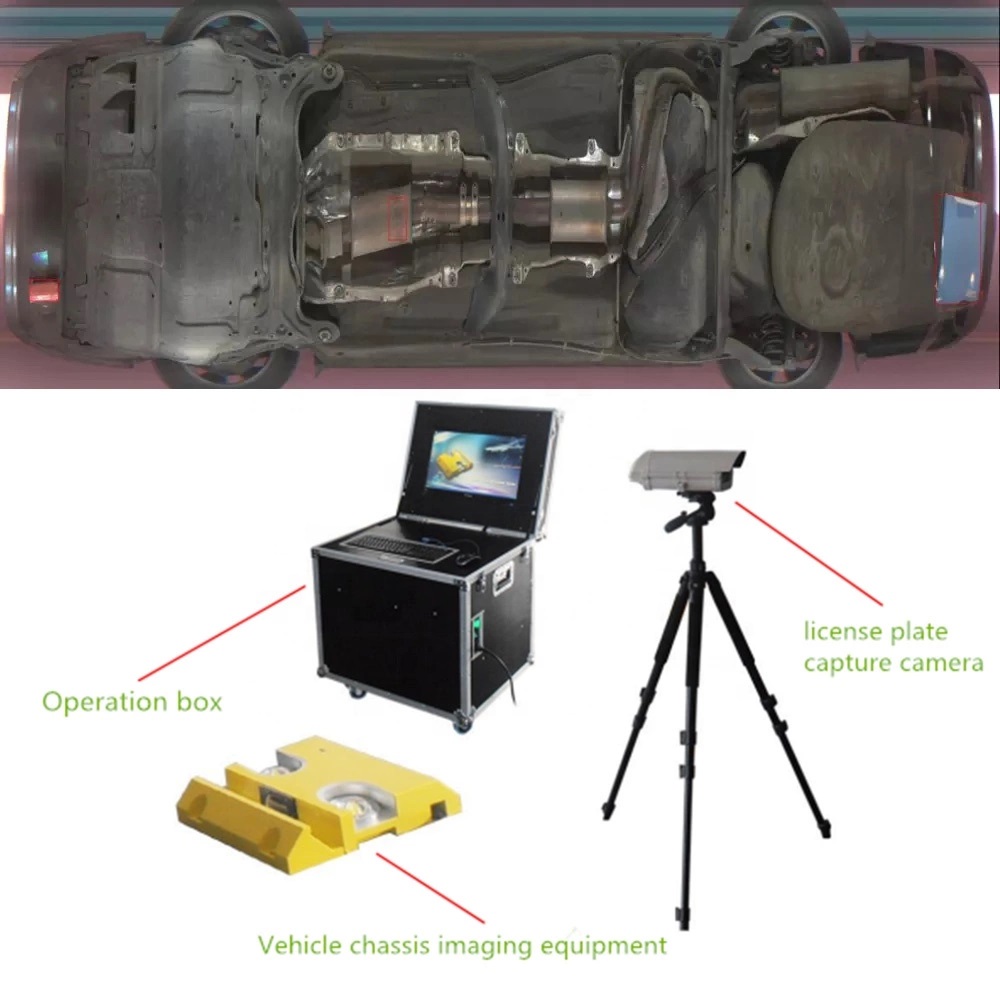

Portable UVSS Scan Module

Field of view: 170°

Compatibility: Chassis height: ≥80mm(0.26ft)

Chassis width: ≤4500mm(14.8ft)

Load-Bearing: 10t(22000lb)

Illumination: 250W dynamic LED array

Weight: 15kg(33lb)

Dimensions: 490mmx398mmx88mm (19.3”x15.7”x3.5”)
