VARITO F-VA-UVSS-6800 Under Vehicle Inspection System
VARITO Under Vehicle Inspection System
Brand: VARITO
Model: F-VA-UVSS-6800
Scan Technology: Line-scan HD Color Camera
Resolution: 2048 × 5000 Pixels
Scan Speed: Up to 60 km/h
Lighting System: High-intensity LED matrix illumination
Camera Housing: IP68 Waterproof
Trigger Mode: Inductive loop / photoelectric / manual
Image Stitching: Real-time automatic image composition
License-Plate Recognition: Integrated ANPR software

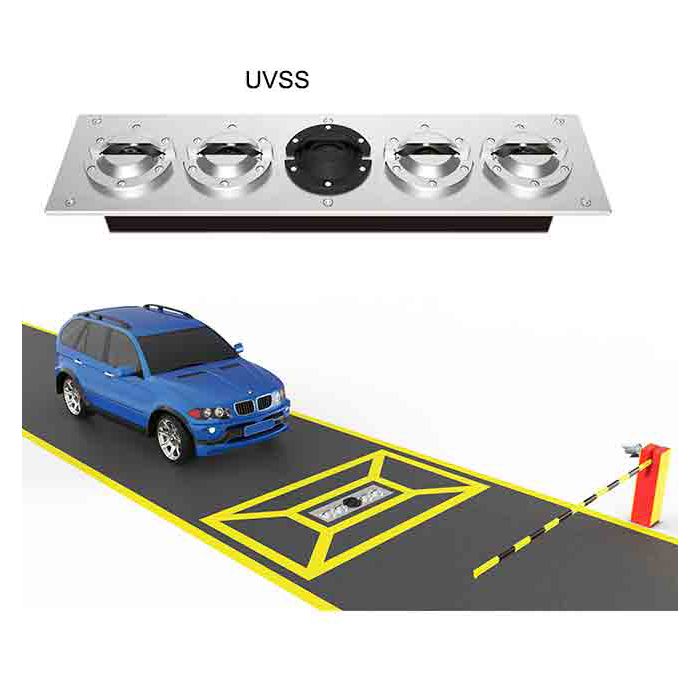

VARITO F-VA-UVSS-6800 Under Vehicle Inspection System
The VARITO F-VA-UVSS-6800 Under Vehicle Inspection System delivers advanced real-time scanning for vehicle undercarriage security. Equipped with a high-definition line-scan camera, automatic image stitching, and license-plate recognition, it provides precise inspection for checkpoints, border control, airports, military bases, and parking facilities.
Key Features
-
High-definition linear-scan camera captures complete undercarriage images in real time.
-
Automatic image stitching creates a full under-vehicle composite image within seconds.
-
Automatic license-plate recognition (ANPR) synchronization for vehicle identity verification.
-
Intelligent software detects modifications, foreign objects, and threats between scans.
-
LED array illumination ensures sharp imaging under all lighting conditions.
-
Supports high-speed vehicle scanning up to 60 km/h for efficient throughput.
-
Rugged IP68-rated camera housing and anti-corrosion stainless-steel body for outdoor durability.
-
Multi-user workstation interface for centralized monitoring and data recording.
-
Optional vehicle database storage and comparison mode for historical inspection analysis.
-
Ideal for military, customs, prison, embassy, hotel, and industrial premises requiring strict vehicle-security control.
Technical Specifications
|
Specification |
Details |
|
Model |
VARITO F-VA-UVSS-6800 |
|
Scan Technology |
Line-scan HD color camera (progressive scan) |
|
Resolution |
2048 × 5000 pixels (per frame composite) |
|
Scan Speed |
Up to 60 km/h vehicle movement |
|
Lighting System |
High-intensity LED matrix illumination |
|
Camera Housing |
IP68 waterproof stainless-steel enclosure |
|
Trigger Mode |
Inductive loop / photoelectric / manual |
|
Image Stitching |
Real-time automatic image composition |
|
License-Plate Recognition |
Integrated ANPR software (optional) |
|
Operating Temperature |
−20 °C to +60 °C |
|
Operating Humidity |
≤ 95% RH (non-condensing) |
|
Power Supply |
AC 220 V ± 10%, 50 Hz |
|
System Interface |
TCP/IP network connection |
|
Data Storage |
Local + server database (configurable) |
|
Installation Method |
Fixed or embedded roadway type |
|
Applications |
Border checkpoints, airports, police stations, industrial gates, VIP parking |
Advantage of UVSS:
- Linear CCD scanning technology dynamic imaging; Scanning Mode: linear scan, ground coil trigger
- No need to park vehicle, can bear speed below 30km/h
- Time of image display after scan <1s
- Image automatic save and automatic delete when hard disk is full
- Time of image saving or loading:<1s
Aim of GCTL
GCTL are known for Best Quality, wholesaling, importing and trading high-grade Under Vehicle Surveillance System scanner and Surveillance Systems in Bangladesh. Moreover, provide installation and maintenance services for offered Product Under Vehicle Surveillance System, Under Vehicle Inspection System, Under Vehicle Scanning System, Under Vehicle Search Mirror in Bangladesh with Attractive Price at any Sector. Please Contact with US About Any query or support anytime.
