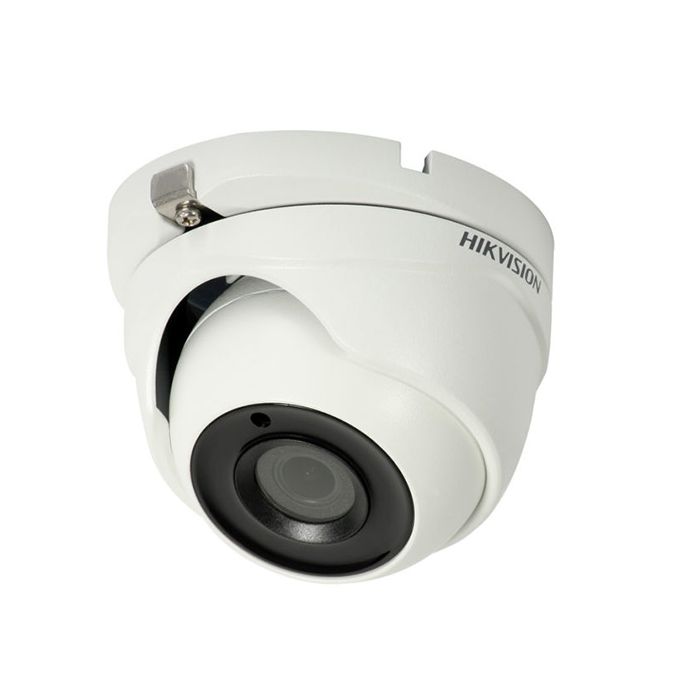

HIKVISION DS-2CE56F7T-IT3Z HD-TVI 3MP Motorized VF EXIR DOME Camera
HIKVISION DS-2CE56F7T-IT3Z HD-TVI 3MP DOME Camera
Brand : HIKVISION
Model : DS-2CE56F7T-IT3Z
Image Sensor: 3MP CMOS Image Sensor
Effective Pixels: 2052(H)*1536(V)
Min. illumination: 0.01 Lux @ (F1.2,AGC ON)
Shutter Time: 1/25(1/30)s to 1/50,000s
Lens: Motorized VF lens; 2.8 - 12 mm
Angle of view: 26.8°-83°
Lens: Mount φ14 Day & Night ICR
Angle Adjustment Pan: 0°- 360°; Tilt:0°- 75°
HIKVISION DS-2CE56F7T-IT3Z HD-TVI 3MP Motorized VF EXIR DOME Camera
HD-TVI TURBO HD camera Hikvision DS-2CE56F7T-IT3Z M7518 has been designed for use in CCTV systems based on HD-TVI DVRs. The camera provides 3 MP video (1920x1536) at 18 fps or 1080p video (1920×1080) at 35 fps. With high sensitivity (0.01 lx) and built-in IR illuminator with range up to 40 m, the camera ensures high quality image in low light or even no-light conditions. The camera can be used in various environments, thanks to IP66 rating and very wide operation temperature range.
Features
Key Features
-
3-Megapixel high-performance CMOS sensor with analog HD output up to 3 MP resolution.
-
Motorised vari-focal lens (2.8-12 mm) allows zooming and focusing remotely for narrow or wide field-of-view.
-
True Day/Night (ICR) functionality ensures colour video by day and black/white clarity by night.
-
True WDR up to 120 dB handles extreme back-lighting or high-contrast scenes.
-
EXIR illumination technology supports up to ~40 metres of night-vision in low-light or full darkness.
-
Weather-proof, outdoor-rated housing (IP66) for reliable performance in harsh environments.
-
On-Screen Display (OSD) menu access and Smart IR enable fine-tuning of camera parameters and better image quality.
Technical Specification
|
Specification |
Details |
|
Image Sensor |
1/2″ high-performance CMOS (3 MP) |
|
Maximum Resolution |
|
|
Lens |
|
|
Minimum Illumination |
|
|
IR Distance |
|
|
Wide Dynamic Range (WDR) |
|
|
Day/Night Function |
ICR (true Day/Night) |
|
Video Output |
Analog HD (HD-TVI) up to 3MP; CVBS support dependent on variant |
|
Smart Features |
OSD menu, Smart IR, DNR, BLC |
|
Housing / Protection |
|
|
Operating Conditions |
|
|
Power Supply & Consumption |
12 V DC; Max power ~6 W |
| Call for Price | No |
|---|---|
| Brand | Hikvision |
| case_type | Dome |
| ir_distance | 31-50 Meter |
| Lens Type | Fixed Lens |
| power_supply | DC12V |
| resolution | 3 Mega Pixel |
| technology | AHD |
| weather_protection | For Indoor |
