Selective RF Detector
The device provides detection of:
• cellular phones of GSM900/1800, UMTS(3G), CDMA450 standards;
• DECT phones;
• Bluetooth and Wi-Fi devices;
• wireless video cameras;
• radio transmitters with analogue modulation (AM, FM, PM);
• radio transmitters with digital modulation and continuous carrier (FSK, PSK, etc.);
• radio transmitters with wideband modulation up to 10 MHz bandwidth.

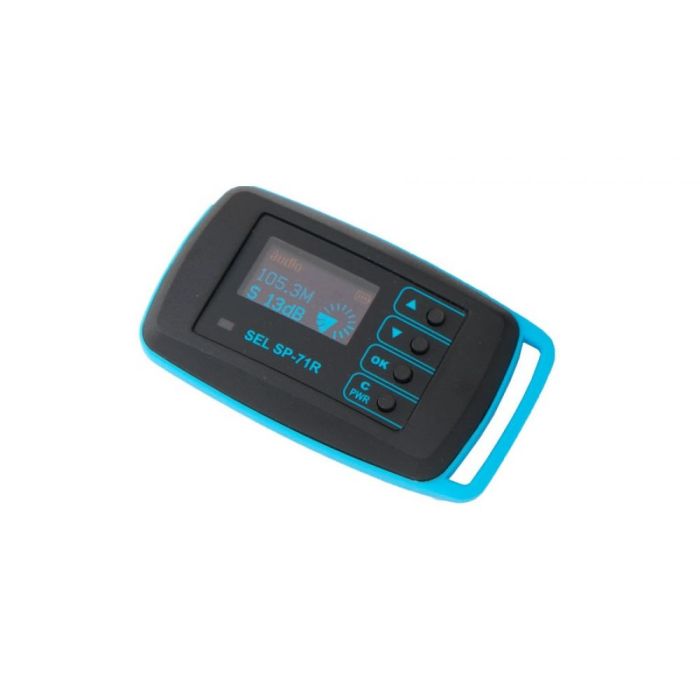

Selective RF Detector
Operating as a selective radio frequency meter RAKSA SEL SP-71R is designed to detect and locate in a near zone most surveillance devices using radio frequencies between 40 MHz and 3.8 GHz
The device provides detection of:
• cellular phones of GSM900/1800, UMTS(3G), CDMA450 standards;
• DECT phones;
• Bluetooth and Wi-Fi devices;
• wireless video cameras;
• radio transmitters with analogue modulation (AM, FM, PM);
• radio transmitters with digital modulation and continuous carrier (FSK, PSK, etc.);
• radio transmitters with wideband modulation up to 10 MHz bandwidth.
Distinctive features:
• selective reception of radio signals;
• detection of wideband and digital signals;
• signals listening;
• metering of signals’ frequency and level;
• an alert log;
• silent alert signal (vibration mode);
• no external antenna.
Delivery set includes:
1. Device SEL SP-71R
2. Charger from mains of 220V
Digital standards in the world:
|
Technical characteristics: |
|
|
Frequency range |
40-3800 MHz |
|
Typical sensitivity |
70 mV/m |
|
Dynamic range |
50 dB |
|
Pass bandwidth |
10 MHz |
|
Battery life in a watchdog mode |
4-12 h |
|
Battery life while in other working modes |
3 h |
|
Display |
OLED 128 х 64 |
|
Overall dimensions |
77 х 43 х 18 mm |
|
Mass |
35 g |
