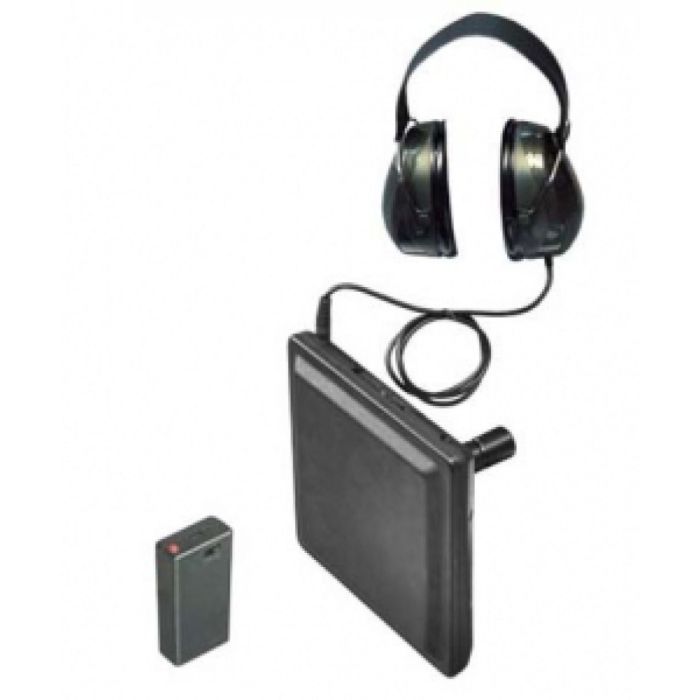

Clockwork Explosive Devices Detector

The Clockwork Actuated Explosive Devices Detector is a specialized security instrument engineered for the detection and identification of mechanically timed or clock-driven explosive devices. It combines advanced magnetic, acoustic, and vibration sensing technologies to identify mechanical ticking or winding mechanisms used in time-delay detonators.

Designed for use by bomb disposal units, defense forces, airports, and high-security installations, this detector enables safe and accurate detection without direct contact with suspicious packages. Its compact, rugged and field-ready design ensures reliable performance under extreme operational conditions.

Technical Specifications:

Characteristics:
Detection range:
Mechanical and electromechanical timer of alarm clock type	Up to 5 meters
Electromechanical wristwatch	Up to 0,8 meters
Electronic desktop clock	Up to 1.2 meters
Electronic wrist watch	Up to 0,9 meters
Electronic controlled device	Up to 1,5 meters
Specifications
Main unit
Operational frequency	2.45±0,01 Ghz
Emitted UHF power (max)	10 mW
Antenna polarization	Linear
Power supply	6xAA cells
Current consumption	Not more 200 mA
Continuous operation time with one set of fresh cells	Not less than 20 h
Dimensions without handle	200x200x35 mm
Operating temperature	From +5 up to +40 °C
Relative humidity (under 25 °C)	Not more 80%
Weight with batteries	600 g
Standard test unit
Power supply	2xAA cells
Current consumption	Not more 4 mA
Operation time with one set of fresh cells	Not less than 500 h
Dimensions	72x34x21 mm
