Portable Radio Noise Generator
Portable Radio Noise Generator
A jammer which provides:
concealment of informative emanating spurious transmissions of computers and peripheral devices;
suppression of receivers used for radio remote control.
Portable Radio Noise Generator
A jammer which provides:
- concealment of informative emanating spurious transmissions of computers and peripheral devices;
- suppression of receivers used for radio remote control.
Shtora-4 is a powerful wideband generator creating electromagnetic interference within the range of 0.1 to 2500 MHz with the integral output power of up to 35 W.

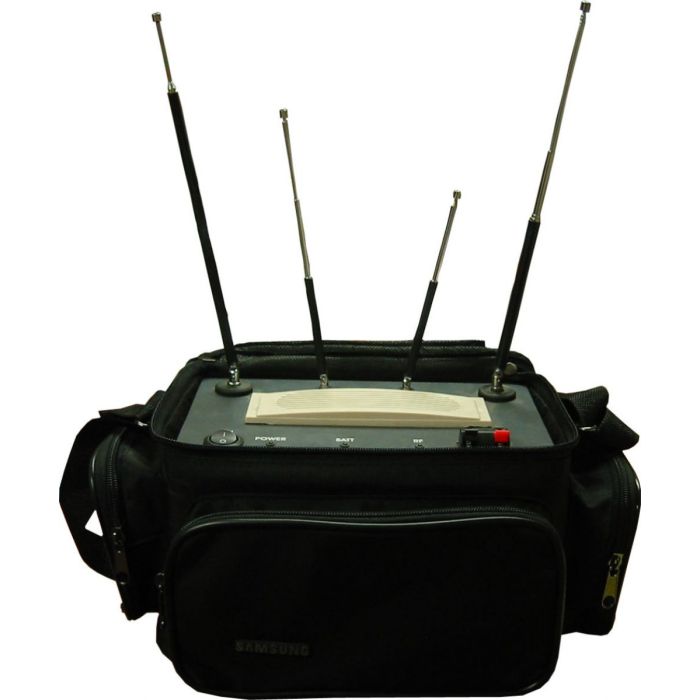

The generator is made in the metal body which is camouflaged in a bag.
The modification Shtora-4M provides more power for the suppression of radio microphones operating in the 400-450 MHz band.
Visual difference between unprotected and protected radio channel from information leakage. Protection is done by Portative Radio Noise Generator Shtora-4M. The measurement was done by Multi-purpose Search Device
|
Characteristics: |
|
|
Frequency range |
0.1 – 2500 MHz |
|
Integral output power |
35 W |
|
Spectral density of the electric component of electromagnetic noise field emitted by telescopic antennas at the distance of 5 m (relative to 1 µV/(m х √ kHz)), not less than: |
|
|
0.1-30 MHz |
55 dB |
|
30-100 MHz |
45 dB |
|
100-650 MHz |
55 dB |
|
650-850 MHz |
45 dB |
|
850-1000 MHz |
25 dB |
|
1000 - 2500 MHz |
20 dB |
|
Power supply |
from 220 V AC, 50 Hz network |
|
|
from 12 V DC (in a car) |
|
Consumption power |
not more than 100 W |
|
Operation mode establishment time |
not more than 10 s |
|
Operating temperature |
+5Co... +40Co |
|
Dimensions of the metal case |
220 х 135 х 35 mm |
|
Weight |
not more than 4 kg |
