Handheld Selective Inductive Mine Detector

This Handheld Selective Inductive Mine Detector is a rugged, portable instrument designed for the detection and localisation of buried mines, improvised explosive devices (IEDs) and metallic anomalies. Utilising selective inductive sensing technology, the unit discriminates target signatures in real time, enabling rapid scanning of terrain, roadways, construction zones or mine-affected areas. With ergonomic handheld design, adjustable sensitivity, digital output and long battery life, the detector supports field operations in harsh environments such as Bangladesh’s coastal, jungle or urban-perimeter contexts.

Key Features

High-sensitivity selective inductive sensor system capable of detecting metallic and ferrous mine components with depth-penetration.
Real-time digital signal processing (DSP) for target discrimination and noise-rejection in cluttered ground conditions.
Handheld, lightweight and field-durable with ergonomic carry design for prolonged survey missions.
Multi-mode operation (search, pinpoint, discrimination) allowing adaptable survey workflows.
Rechargeable battery pack with extended runtime and rugged case for transport/storage.
Digital output interface (USB/RS-232) to log detections, map coordinates and integrate with survey software.

Technical Specification

Specification	Typical Detail
Sensing Principle	Selective Inductive / Pulse-Induction mode for metallic anomaly detection
Depth Penetration	Detects standard buried metal mines or objects at typical depths up to ~300–500 mm (dependent on soil)
Sensitivity Modes	Multi-level sensitivity (high/medium/low) for different ground/target conditions
Discrimination Capability	Adjustable threshold and signal-filtering for distinguishing target types
Output & Indicators	Audible alarm, visual LED/LCD display, digital output logging capability
Power Supply	Rechargeable battery, typical runtime 6+ hours (field-configurable)
Weight & Dimensions	Lightweight handheld form factor (approx. < 2.5 kg)
Environmental Specs	Ruggedised construction, typical rating: IP54 (example)
Operating Conditions	Ambient temperature: −20 °C to +50 °C; humidity: < 90% non-condensing
Interfaces	USB or RS-232 output for data logging or computer connection
Applications	Mine-clearance, humanitarian de-mining, road/rail/airport infrastructure surveys, construction-site checks

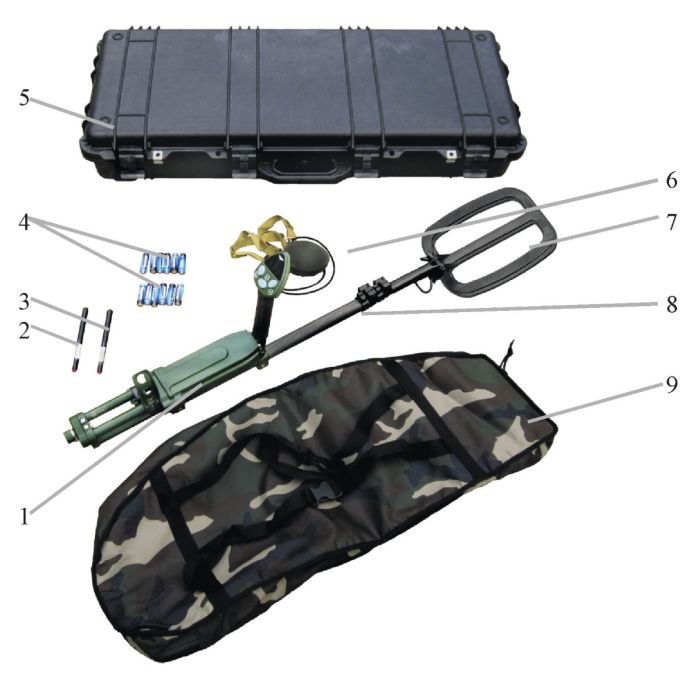

Handheld Selective Inductive Mine Detector – Portable Survey Tool
