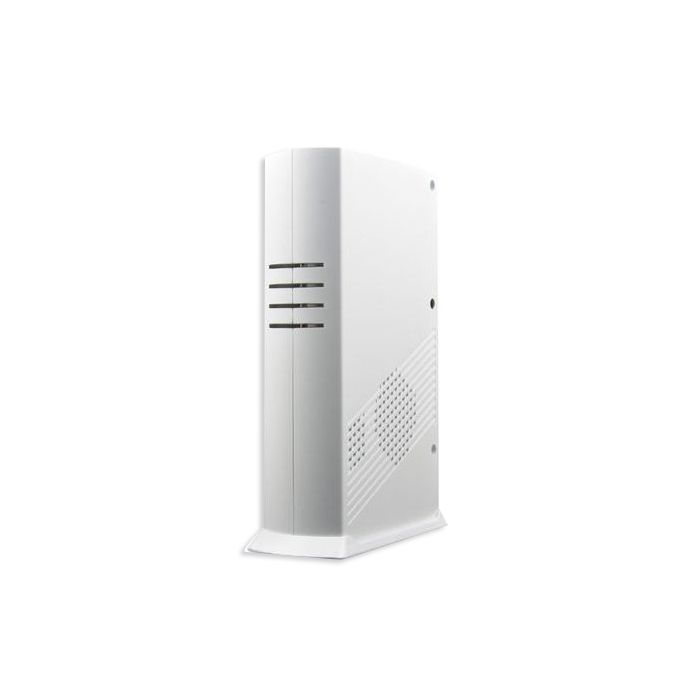

Universal gateway- combining Wi-Fi/Ethernet & GSM/GPRS options
Display 4 LEDs (Away/Home/Disarm/Data).Sensor Zones
total 288 zones
|
Input Power |
7VDC/850mA power adapter |
|
Standby Current: depending on modelRF |
433MHz, 868MHz or 915MHz, compliant with local regulations |
|
RF Power |
less than 10mW. |
|
Range |
about 100m to 300m or more @open field, 25℃ (Depends on sensors and Hardware version). |
|
Receiver Type |
super heterodyne. |
|
RF Security Code |
16,777,216 combinations with check sum for each type of sensors. More than 4 billion combinations in total. |
|
Communication Link |
Ethernet interface or optional wifi/ GSM/GPRS |
|
Event Log |
max. 512 records. |
|
Display |
4 LEDs (Away/Home/Disarm/Data). |
|
Sensor Zones |
total 288 zones. (Burglar zones x 128, Fire zones x 64, Controller zones x 32, Medical zones x 32, Special sensor zones x 32) |
|
Memory Back-up Time |
Min. 3 months after power break. |
|
Battery Back Up Operation Time |
from 4 hours to 12Hours standby. (Depends on back up battery type, only for the operation of the Base Unit with Ethernet Adaptor) |
|
3 Wire Sensor Inputs |
Each can be assigned as Panic, Burglar, Fire, Medical, Tamper or Controller. |
|
Alarm Out |
Open collector transistor output with 10 Ohm protection resistor, for 5V external siren or other alarm device, 300mA max. |
|
Delay Activation Time |
0- 255 seconds programmable. |
|
Digital Interfaces |
USB |
|
Automation Switch control |
RJ11 6-pin for control of 16 units X-10 switches or (XRM-01) Relay Modules. Wireless Socket: SW#1~SW#8. |
|
Preset Telephone Number |
5 GSM/SMS numbers, 2 CMS data links (With GSM option). |
|
Voice Recording |
120 seconds in total (With Voice Module). |
|
|
Emergency announcement in 6 segments, 13 seconds for common segment, 4 seconds each for Panic, Burglar, Fire, Medical, Special and Latchkey/ Power segments. |
|
GSM |
Contact ID with 2-way voice (With GSM Adaptor and Voice Module). |
|
Internet CMS protocol |
Proprietary Scientech Protocol (ST-I, ST-II), CSV and SIA ADM-CID IP Alarm protocol |
|
Clock Accuracy |
within 5 seconds daily. |
|
Operation Temp. |
-10℃~50℃. |
|
Storage Temp. |
-20℃~55℃. |
|
Humidity |
10-95%RH |
|
Size |
190x120x40 mm |
|
Event Log |
max. 512 records. |
|
Display |
4 LEDs (Away/Home/Disarm/Data). |
|
Sensor Zones |
total 288 zones. (Burglar zones x 128, Fire zones x 64, Controller zones x 32, Medical zones x 32, Special sensor zones x 32) |
|
Memory Back-up Time |
Min. 3 months after power break. |
|
Battery Back Up Operation Time |
from 4 hours to 12Hours standby. (Depends on back up battery type, only for the operation of the Base Unit with Ethernet Adaptor) |
|
3 Wire Sensor Inputs |
Each can be assigned as Panic, Burglar, Fire, Medical, Tamper or Controller. |
|
Alarm Out |
Open collector transistor output with 10 Ohm protection resistor, for 5V external siren or other alarm device, 300mA max. |
|
Delay Activation Time |
0- 255 seconds programmable. |
|
Digital Interfaces |
USB |
|
Automation Switch control |
RJ11 6-pin for control of 16 units X-10 switches or (XRM-01) Relay Modules. Wireless Socket: SW#1~SW#8. |
|
Preset Telephone Number |
5 GSM/SMS numbers, 2 CMS data links (With GSM option). |
|
Voice Recording |
120 seconds in total (With Voice Module). |
|
3 Wire Sensor Inputs |
Each can be assigned as Panic, Burglar, Fire, Medical, Tamper or Controller. |
|
Alarm Out |
Open collector transistor output with 10 Ohm protection resistor, for 5V external siren or other alarm device, 300mA max. |
|
Delay Activation Time |
0- 255 seconds programmable. |
|
Digital Interfaces |
USB |
|
Automation Switch control |
RJ11 6-pin for control of 16 units X-10 switches or (XRM-01) Relay Modules. Wireless Socket: SW#1~SW#8. |
|
Preset Telephone Number |
5 GSM/SMS numbers, 2 CMS data links (With GSM option). |
|
Voice Recording |
120 seconds in total (With Voice Module). |
|
|
Emergency announcement in 6 segments, 13 seconds for common segment, 4 seconds each for Panic, Burglar, Fire, Medical, Special and Latchkey/ Power segments. |
|
GSM |
Contact ID with 2-way voice (With GSM Adaptor and Voice Module). |
|
Internet CMS protocol |
Proprietary Scientech Protocol (ST-I, ST-II), CSV and SIA ADM-CID IP Alarm protocol |
|
Clock Accuracy |
within 5 seconds daily. |
|
Operation Temp. |
-10℃~50℃. |
|
Storage Temp. |
-20℃~55℃. |
|
Humidity |
10-95%RH |
|
Size |
190x120x40 mm. |
|
Models |
LS-20E (Ethernet Adaptor), LS-20GV (GSM/GPRS with Voice Module), LS-20EV (Ethernet Adaptor with Voice Module), LS-20EG (Ethernet Adaptor, GSM/GPRS & Voice Module), LS-20W (wifi), LS-20WV (wifi with Voice Module), LS-20WG (wifi, GSM/GPRS & Voice Module).
|
