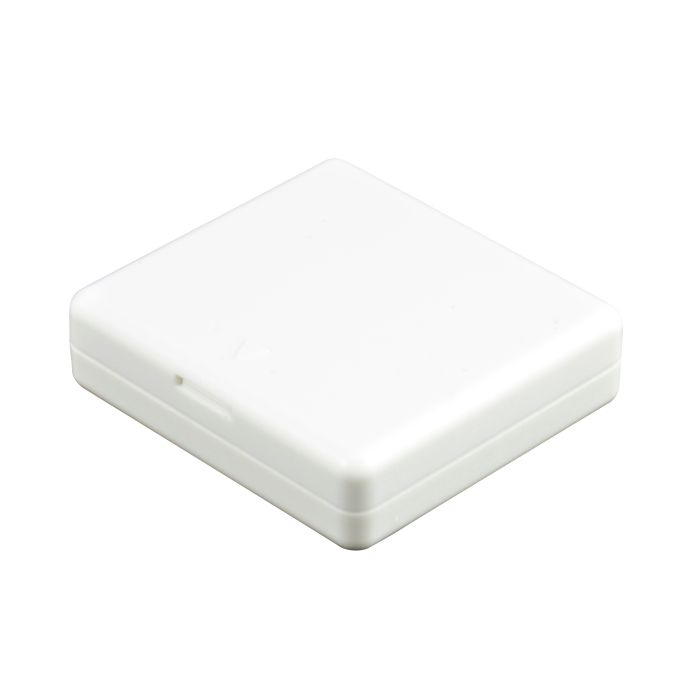

TX-3DS-VB Wireless vibration sensor
Vibration Sensor with Battery TX 3DS VB
Model: TX 3DS VB
Product Type: Wireless Vibration Sensor with Battery
Detection Type: Vibration / Shock / Tamper
Detection Method: Piezoelectric sensor element
Sensitivity Levels: Adjustable
Transmission Frequency: 433 MHz / 868 MHz
Wireless Range: Up to 100 m (open area)
Power Supply: Built-in Lithium Battery
Vibration Sensor with Battery TX 3DS VB
The Vibration Sensor with Battery TX 3DS VB is a smart, wireless vibration detection device designed to monitor shock, movement, or tampering in sensitive areas.
It detects vibration or impact on windows, safes, walls, or machinery and sends instant alerts to the connected control panel. Powered by a long-lasting battery, it ensures 24/7 protection even during power failures.
This sensor is ideal for banks, ATMs, warehouses, data centers and residential properties, where vibration or intrusion needs to be detected before a break-in occurs. Compact, reliable, and easy to install, the TX 3DS VB ensures enhanced perimeter and structural security.
Key Benefits
-
Early Threat Detection: Instantly senses vibration or shock before intrusion happens.
-
Wireless & Battery Powered: No wiring needed; operates even during power outages.
-
High Sensitivity: Adjustable detection levels for different environments.
-
Long Battery Life: Efficient power design offers years of reliable performance.
-
Tamper Protection: Sends alerts if the sensor is removed or opened.
-
Easy Integration: Works with standard security and alarm control systems.
-
Compact Design: Discreet installation on doors, windows, safes, or cabinets.
-
Low Maintenance: Minimal servicing required; quick battery replacement.
Technical Specifications:
| Category | Technical Details |
|---|---|
| Model | TX 3DS VB |
| Product Type | Wireless Vibration Sensor with Battery |
| Detection Type | Vibration / Shock / Tamper |
| Detection Method | Piezoelectric sensor element |
| Sensitivity Levels | Adjustable (Low / Medium / High) |
| Transmission Frequency | 433 MHz / 868 MHz (depending on version) |
| Wireless Range | Up to 100 m (open area) |
| Power Supply | Built-in Lithium Battery (replaceable) |
| Battery Life | Up to 3–5 years (typical usage) |
| Alarm Signal Output | Wireless transmission to control panel |
| LED Indicator | Event, Alarm, and Low Battery status |
| Tamper Switch | Built-in (anti-open and anti-remove detection) |
| Operating Temperature | –10 °C ~ +50 °C |
| Humidity Range | ≤ 95% RH (non-condensing) |
| Housing Material | High-impact ABS plastic |
| Color | White / Off-white |
| Dimensions | Approx. 85 × 40 × 25 mm |
| Installation | Wall, Door, Window, or Equipment Surface Mount |
| Applications | ATM, Bank Vaults, Windows, Safes, Server Rooms, Industrial Equipment |
