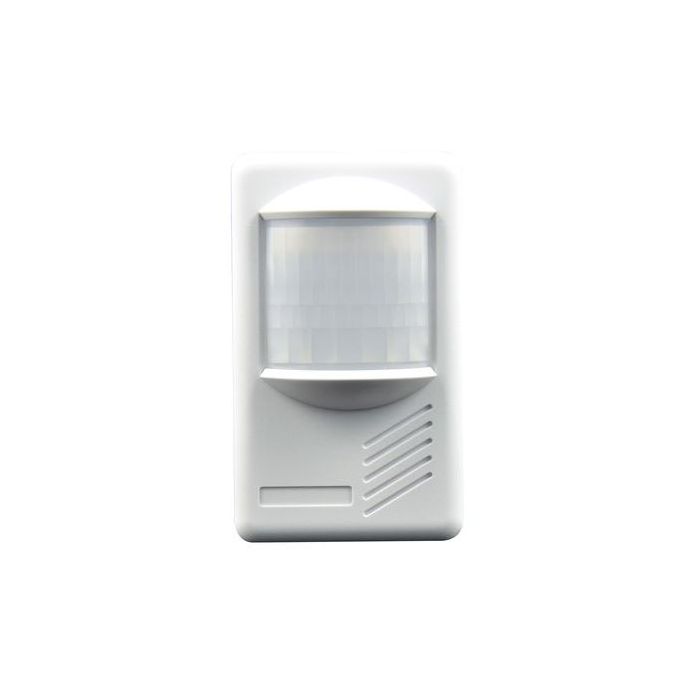

Tuya PIR Motion Sensor Alarm

Tuya PIR Motion Sensor for Smart Life Wifi Based Alarm System

The Tuya PIR Motion Sensor seamlessly integrates with the Smart Life/Tuya ecosystem to add motion-based security and automation to your home. It uses passive infrared detection to monitor human/animal movement, sends real-time alerts to your phone, triggers smart scenes, and supports battery or USB power. With a 128° field of view, up to ~10 metres detection range and wide compatibility for smart home applications, it’s an ideal sensor for indoor smart alarm systems.

Features

Smart trigger: When motion is detected, the sensor sends a push notification through the Smart Life/Tuya app and can trigger other connected devices (lights, alarms, cameras).
Passive Infrared (PIR) detection: No emission of light or RF, detects based on body heat of people or animals passing by.
Wide-angle & long-range coverage: ~128° side view, ~128° downward view, detection distance up to ~10 m.
Low-battery alert: Built-in battery level monitoring sends you a notice in the app when battery is low, ensuring continuous protection.
Flexible installation: Mount via adhesive tape or screws for wall placement; takes LR-3/AAA batteries or USB power.
WiFi connectivity (2.4 GHz): Connects directly to your home WiFi network without needing a separate hub.

Technical Specification

Specification	Detail
Model	PIR Motion Sensor (Tuya Smart Life version)
Wireless Type	WiFi 2.4 GHz (IEEE 802.11 b/g/n)
Detection Angle	Side view ~128°; Down view ~128°
Detection Distance	Up to ~10 metres
Power Supply	Two LR-3 / AAA 1.5 V batteries (not included)
Working Temperature	0 °C to +40 °C
Working Humidity	20%-85% RH non-condensing
Indoor Communication Range	> 20 metres (in open indoor space)
Mounting Options	Adhesive tape or screws (bracket adjustment supported)
Weight	Approx. 0.095 kg
