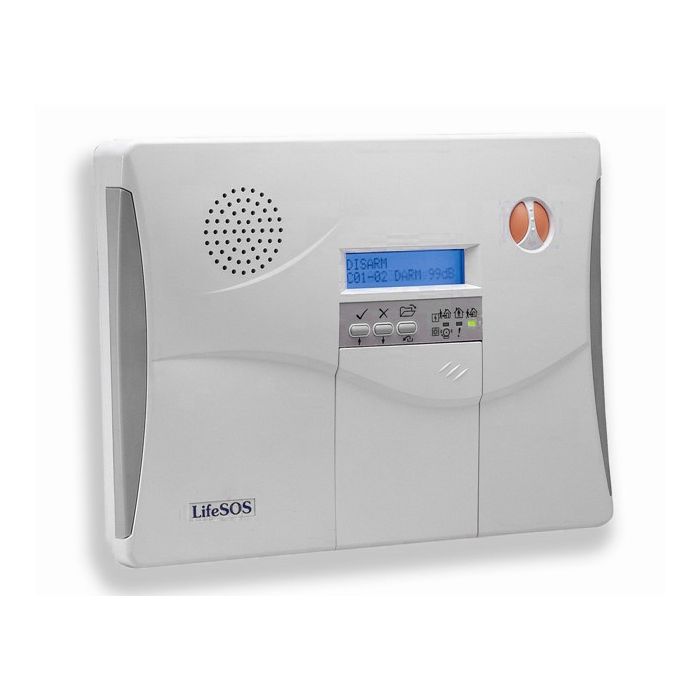

LS-30 IP-Base all-in-one smart secutity system
Security and home automation.IP based design with computer and Internet interface.
Interactive programming with 16 x 2 LCD display
Features:
- Detailed 512 events log with time tag.
- 288 sensors/ zones can be accommodated.
- 16 programmable X-10 switches.
- Receiving RF signal strength indication and jamming detection.
- Robust multi-million RF coding and special transmission timing design avoiding interferences.
- Responds to panic, burglary, fire, medical alarm and environmental hazards.
- Supervised sensors with heart beat check.
- Door and window open/ close detection.
- Selects partial arming when at home.
- Special monitoring mode to record all the activities in the protected area.
- Temperature, humidity and other sensors for environment monitoring.
- 9 partial arm zones, working independently of the main zones, make LS-30 operate as 10 independent systems.
- Built-in voice dialer stores up to 10 phone numbers, 1 pager and 2 CMS data links.
- Switch & Operation by scene control or time scheduling.
- Dial-out voice alarm message with event type and zone number.
- Hands-free speaker-phone, two-way voice communication and silent monitoring.
- Dial-in control of listen-in, arm, disarm, event report and switch control.
- Latchkey function to inform parents when kids leave or return home.
- Inform user when AC power loss or restore happens immediately
- Inactivity monitoring to take care of the elderly or physically challenged.
- 3 Aux. Wire Inputs.
- GSM communication module for where land line is not available.
- Sending alarm message, activity report and temperature/humidity reading through data port (RS-232 or TCP/IP) in real time.
- Operation Frequency and RF Power: 868MHz, 433MHz, 426MHz (for Japan only), Less than 10mW.
Specifications
|
Input Power |
15VDC/400mA regulated. |
|
Standby Current |
50mA. |
|
RF : Frequency |
426MHz, 433MHz, 868MHz and 915MHz as requested. |
|
Data Modulation |
Narrow-band FM or OOK, depending on RF. |
|
Power |
less than 10mW. |
|
Range |
about 100m to 350m @open field, 25℃ (Depending on sensors). |
|
Receiver Type |
super heterodyne. |
|
RF Security Code |
16,777,216 combinations with check sum for each type of sensors. More than 4 billion combinations in total. |
|
Communication Link |
PSTN (Telephone)/ GSM/ Ethernet |
|
Telephone Dialing |
Pulse/Tone selectable. |
|
Preset Telephone Number |
10 phone numbers, one pager, 5 GSM/SMS numbers, 2 CMS data links (both with PSTN and GSM numbers). |
|
Voice Recording |
120 seconds in total. |
|
|
Emergency announcement in 6 segments, 13 seconds for common segment, 4 seconds each for Panic, Burglar, Fire, Medical, Special and Latchkey/ Power segments. |
|
Event Log |
max. 512 records. |
|
Display |
3 LEDs, 2x16 LCD panel with blue color backlight. |
|
Sensor Zones |
total 288 zones. (Burglar zones x 128, Fire zones x 64, Controller zones x 32, Medical zones x 32, Special sensor zones x 32) |
|
Memory Back-up Time |
Min. 3 months after power break. |
|
Battery Back Up Operation Time |
about 15-26 hours standby. (depends on back up battery type, only for the operation of the Base Unit) |
|
Password |
14 passwords each with max. 8 digits. |
|
Wire Sensor Inputs |
3 sensor inputs, each can be assigned as panic, burglar, fire, medical or tamper. |
|
Alarm Out |
230V AC /3A rate relay contacts or DC output selectable. |
|
Delay Activation Time |
0- 255 seconds programmable. |
|
Digital Interfaces COM1(RJ9) |
UART (0-5V, 9600/ 8 bits/no parity/1stop bit) |
|
|
For RS-232 Adaptor, USB Adaptor, 10M/100M Ethernet Adaptor and Data Communication Module. |
|
Digital Interface COM2(RJ45) |
(for GSM module and X-10 switch control interface) |
|
GSM module |
UART (0-5V, 9600/ 8 bits/no parity/1stop bit). |
|
X-10 control |
X-10 protocol for the control of 16 units X-10 switches or Relay Modules. |
|
Remote Display Memory |
30 characters/set, total 10 sets. |
|
Internal Siren |
110dB at 30cm distance. |
|
CMS protocol |
Contact ID with 2-way voice. |
|
Clock Accuracy |
within 5 seconds daily. |
|
Telephone Line Cut Detection Voltage: |
20V+/- 4V. (this function may not be used in some countries.) |
|
Operation Temperature |
-10℃~50℃ |
|
Storage Temperature |
-20℃~55℃. |
|
Humidity |
10-95% RH. |
|
Size |
248x180x52 mm. |
|
Weight |
about 950 g |
|
Approvals |
CE, FCC, TELEC |
|
|
|
|
Security Grade |
EN50131, Class 2. |
|
LCD display and voice prompt |
Available in English, German, French, Spanish, Italian, Swedish, Dutch, Greek, Russian, Turkish, Portuguese, Czech, Polish, Slovenian and Japanese. |
