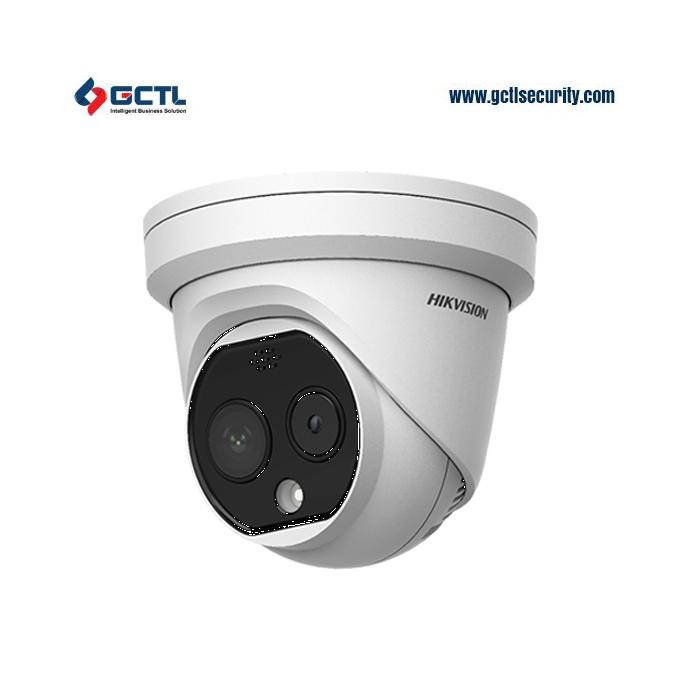

Hikvision DS-2TD1217B-3/PA 4MP Body Temperature Screening Dome Camera
GCTL Sales:
✓ Brand : Hikvision
✓ Model : DS-2TD1217B-3/PA
✓ Hikvision Thermal Bi-spectrum 4MP Network Dome Camera
✓ Fever screening thermal Solutions.
✓ Fever/Temperature Screening Camera.
✓ Body Temperature Measurement Camera.
✓ Thermal Network Hybrid Dome Coronavirus camera.
✓ Fever detection' cameras to Detect coronavirus.
Buy Hikvision DS-2TD1217B-3/PA Thermographic Turret Body Temperature Measurement Camera with Best price in Bangladesh - GCTL
Best price of Hikvision Body Temperature Measurement Camera in Bangladesh .
Body Temperature Measurement security cameras won't cost much, it will range price from BDT 425000 to BDT 4,75,000.00 . There are some consumer-level Thermographic cameras with improved Temperature Measurement designed for Office , Factory , Railway Station & Airport security, and most of them come at rather affordable price,
We believe security matters a lot and it should be easy for everyone. That's why we select our products professional, reliable, affordable and modern style
Hikvision DS-2TD1217B Thermographic Turret Body Temperature Measurement Camera is able to measure object's temperature at a high accuracy in real time. It is capable to discover and track people with higher body temperature among the crowded public area, it can be widely used in places such as customs, airport, school and hospital for inspection and quarantine.
Key Feature
- 160 × 120 resolution in thermal channel, high sensitivity sensor.
- Temperature range: 30°C to 45°C; temperature accuracy: ±0.5 °C
- Reliable temperature exception alarm function
- 3D DNR, image detail enhancement
- Audio alarm
Specification
|
Thermal Module |
|
|
Image Sensor |
Vanadium Oxide Uncooled Focal Plane Arrays |
|
Max. Resolution |
160 × 120 (the resolution of output image is 320 × 240) |
|
Pixel Interval |
17 μm |
|
Response Waveband |
8 μm to 14 μm |
|
NETD |
Less than 40 mK (25°C), F# = 1.1 |
|
Lens (Focal Length) |
3.1 mm |
|
IFOV |
5.48 mrad |
|
Field of View |
50° × 37.2° (H × V) |
|
Min. Focusing Distance |
0.2 m |
|
Aperture |
F1.1 |
|
Optical Module |
|
|
Max. Image Resolution |
2688 × 1520 |
|
Image Sensor |
1/2.7" Progressive Scan CMOS |
|
Min. Illumination |
Color: 0.0089 Lux @ (F1.6, AGC ON), B/W: 0.0018 Lux @ (F1.6, AGC ON) |
|
Shutter Speed |
1s to 1/100,000s |
|
Lens (Focal Length) |
4 mm |
|
Field of View |
84° × 44.8°(H × V) |
|
WDR |
120 dB |
|
Day & Night |
IR cut filter with auto switch |
|
Image Function |
|
|
Bi-spectrum Image Fusion |
Fusion view of thermal view and overlaid details of the optical channel |
|
Picture in Picture |
Combines details of thermal and optical image PIP, overlay thermal image on optical image |
|
Smart Function |
|
|
Temperature Measurement |
3 temperature measurement rule types, 21 rules (10 points, 10 areas, and 1 line). |
|
Temperature Range |
30 °C to +45 °C |
|
Temperature Accuracy |
± 0.5 °C |
|
Infrared |
|
|
IR Distance |
Up to 15 m |
|
IR Intensity and Angle |
Automatically adjusted |
|
Network |
|
|
Main Stream |
Visible Light: 50Hz: 25fps (2688 × 1520), 25fps (1920 × 1080), 25fps (1280 × 720) Visible Light: 60Hz: 30fps (2688 × 1520), 30fps (1920 × 1080), 30fps (1280 × 720) Thermal: 1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240 |
|
Sub-Stream |
Visible Light: 50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144) Visible Light: 60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120) Thermal: 704 × 576, 352 × 288, 320 × 240 |
|
Video Compression |
H.265/H.264/MJPEG |
|
Audio Compression |
G .711u/G.711a/G.722.1/MP2L2/G.726/PCM |
|
Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
|
Simultaneous Live View |
Up to 20 |
|
User/Host Level |
Up to 32 users, 3 levels: Administrator, Operator, User |
|
Security Measures |
User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering |
|
Integration |
|
|
Alarm Input |
1-ch inputs (0-5 VDC) |
|
Alarm Output |
1-ch relay outputs, alarm response actions configurable |
|
Alarm Action |
SD recording/relay output/smart capture/FTP upload/email linkage/audio alarm/white light alarm |
|
Audio Input |
1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10% |
|
Audio Output |
Linear level; impedance: 600 Ω |
|
Reset |
1 Reset Button |
|
Communication Interface |
1, RJ45 10M/100M Self-adaptive Ethernet interface. 1, RS-485 interface |
|
SD Memory Card |
Built-in MicroSD card slot, supporting MicroSD/SDHC/SDXC card (up to 256 G), supports manual/alarm recording |
|
Analog Video Output |
1.0 V [p-p]/75 Ω, PAL/NTSC |
|
Application Programming |
Open-ended API, supporting ISAPI, HIKVISION SDK, and third-party management platform |
|
Client |
iVMS-4200, Hik-Connect |
|
Web Browser |
IE9+, chrome31-44, Firefox 30-51, Safari 5.02+ (mac) |
|
General |
|
|
Menu Language |
32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
|
Power |
12 VDC ± 20%, two-core terminal block PoE (802.3af, class 3) |
|
Power Consumption |
12 VDC ± 20%: 0.5 A, max. 6 W PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 6.5 W |
|
Working Temperature/Humidity |
10 °C to 35 °C（Indoor and windless environment use only） 95% or less |
|
Protection Level |
IP66 Standard, TVS 6000V Lightning protection, surge protection, voltage transient protection |
|
Dimension |
138.3 mm × 138.3 mm × 123.1 mm (5.45 " × 5.45" × 4.85 ") |
|
Weight |
940 g (2.07 lb) |
How a IP Body Temperature Measurement Camera System Connection Works
BASIC PRINCIPLES OF THERMAL CAMERAS
Each type of radiation has a unique wavelength. Any object with a temperature above absolute zero emits a detectable amount of radiations. The higher an object’s temperature, the more radiations are is emitted. Taking advantage of the temperature differences between objects, thermal cameras make the invisible thermal radiation “visible” in the form of heat zone images.
The spectrum of visible light is actually only a small part of a large band of detectable signals, or waves, that travel through matter. The electromagnetic spectrum contains radiation from various invisible wave types, each with a unique wavelength. Thermal radiation is one of these, featuring longer wavelengths than those of visible light, and is therefore generally invisible to the human eye.
