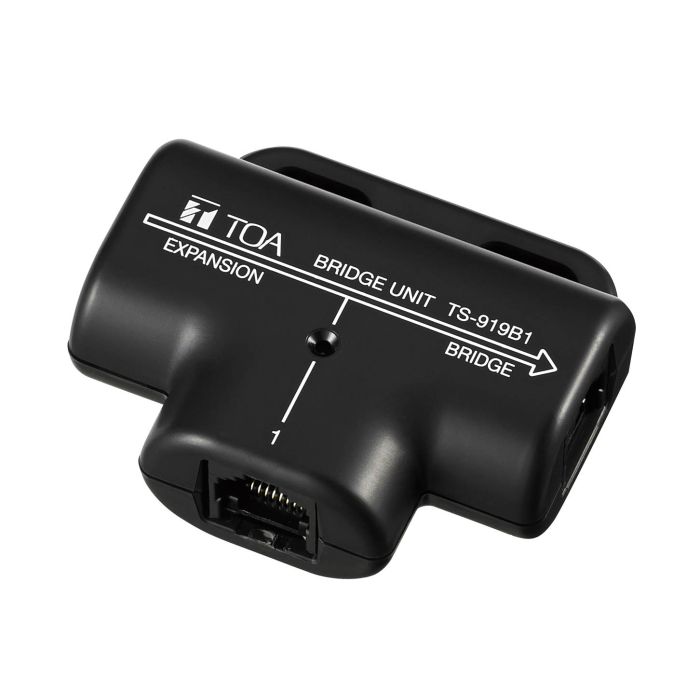

TOA TS-919B1 Bridge Unit for Conference System
TOA TS-919B1 Conference System
Model: TS-919B1
Power Source: 24 V DC
Current Consumption: Max 16 mA
Branching Loss: Upstream: 16.5 dB / Downstream: 16 dB
Insertion Loss: Upstream: 1 dB / Downstream: 0.5 dB
Number of Units: 1 unit (single chairman/delegate unit)
TOA TS-919B1 Bridge Unit for Conference System
The TOA TS-919B1 Bridge Unit enables seamless integration of a single wired chairman or delegate conference unit (TS-811/911/812/912 series) via Cat-5 cable. Compact, reliable and designed for professional conference systems, it delivers low-loss signal bridging in boardrooms and meeting environments.
Key Features
-
Designed for single wired conference unit connection (Chairman or Delegate unit) of the TS-811 / TS-911 / TS-812 / TS-912 family.
-
Connects via Category 5 cable (Cat-5 LAN cable) between central or expansion units and the conference unit—simplifying wiring.
-
Extremely low power consumption: Max 16 mA at 24 V DC.
-
Minimal signal loss: Upstream branching loss 16.5 dB, insertion loss upstream 1 dB / downstream 0.5 dB.
-
Status LED indicator for connection status monitoring.
-
Compact and lightweight: dimensions 68 × 60.3 × 24 mm, weight approx. 40 g.
-
Rugged finish: Black ABS resin housing designed for professional conference installations.
-
Wide operating environment: 0 °C to +40 °C, humidity 90% RH or less (non-condensing) ensures stable performance in meeting rooms.
Technical Specification
|
Specification |
Detail |
|
Model |
TS-919B1 |
|
Power Source |
|
|
Current Consumption |
Max 16 mA |
|
Branching Loss |
|
|
Insertion Loss |
|
|
Number of Connectable Units |
|
|
Connection Terminals |
|
|
Status Indicator |
LED for connection status |
|
Operating Temperature |
|
|
Operating Humidity |
90% RH or less (no condensation) |
|
Finish / Housing |
ABS resin, black |
|
Dimensions (W×H×D) |
68 × 60.3 × 24 mm (≈ 2.68″ × 2.37″ × 0.94″) |
|
Weight |
Approx. 40 g (1.41 oz) |
