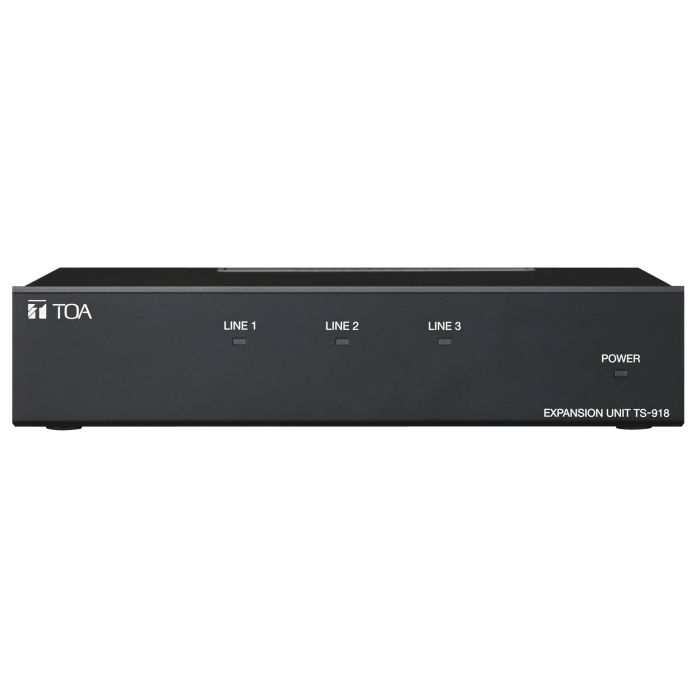

Conference System TS-918 Expansion Unit
Name: TOA conference unit TS-918 Expansion Unit
Model: TS-918 CE Expansion Unit
Country of Origin: Japan
Warrenty: One Year
TOA conference unit TS-918 Expansion Unit
Model: TS-918 CE
The TS-918 is an interface necessary for incorporating the Wired conference unit(s) in the conference system. It is connected to the TS-910 Central unit with a coaxial cable and to the TS-919B1 or TS-919B4 Bridge unit with a Category 5 cable. With the use of an optional rack mounting bracket, it can be mounted in an EIA Standard equipment rack (1 unit size).
|
Specification |
|
Power Source |
100 - 240 V AC, 50/60 Hz (use of the supplied AC adapter) |
|
Power Consumption |
74.4 W |
|
Current Consumption |
Max. 3.1 A DC (when 24 V DC is supplied from the accessory AC adapter) |
|
Gain |
Upstream: +16.5 dB |
|
Connection Terminal |
Central unit connection terminal: BNC jack |
|
LED Indicator |
Connection status indicators (3 LEDs each on the front and rear panels), |
|
Number of Connectable Chairman/Delegate Units |
Up to 24 units (when using 21 units of TS-919B1 or 6 units of TS-919B4, both optional Expansion units) |
|
Operating Temperature |
0 ℃ to +40 ℃ (32 ゜F to 104 ゜F) |
|
Operating Temperature |
90 %RH or less (no condensation) |
|
Finish |
Panel: Aluminum, black, 30% gloss, melamine-baked paint |
|
Dimensions |
210 (W) × 44 (H) × 296.5 (D) mm (8.27" × 1.73" × 11.67") |
|
Weight |
1.6 kg (3.53 lb) |
|
Accessory |
AC adapter (Cord length: 1.8 m (5.91 ft) DC cord, and 2 m (6.56 ft) |
|
Option |
Rack mounting bracket: MB-15B-BK (for rack mounting one TS-918 unit) |
