Bosch PLN-6CS Call Station for PLN-6AIO240, 6-Zone
Bosch PLN-6CS 6-Zone Call Statio
Power Supply: 24 V DC
Current Consumption: < 50 mA
Nominal Acoustic Sensitivity: 85 dB SPL @ 1 kHz
Frequency Response: 100 Hz – 14 kHz (±6 dB)
Output Level / Limiter Threshold: Nominal output ~1 V
Distortion: < 2% (maximum input)
Output Impedance: 200 Ω
Connection: 2 × RJ45 (Cat-5) for loop-through
Chime Options: Selectable 1-, 2- or 4-tone chime
Base Dimensions (H × W × D): 55 × 108 × 240 mm
Weight: Approx. 0.5 kg
Bosch PLN-6CS 6-Zone Call Station Bangladesh

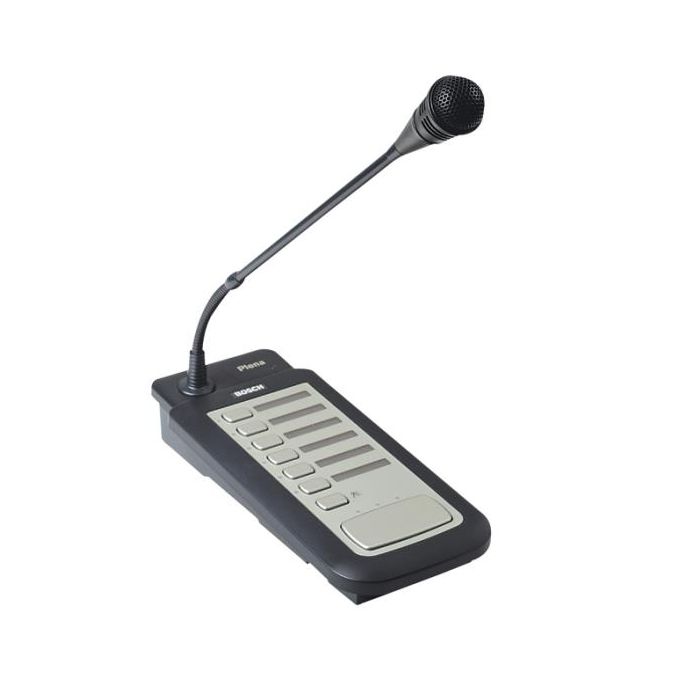

The Bosch PLN-6CS Call Station is a high-quality, six-zone paging microphone unit designed for integration with the Bosch Plena All-in-One system (specifically the PLN-6AIO240). With a sturdy metal base, flexible mic stem, and intuitive zone selection plus all-call functionality, it provides professional speech intelligibility and system integration for public-address, paging and background-music installations.
Features
-
Six dedicated zone-selection keys (with LED indicators) plus an “All-Call” key for paging any or all zones.
-
Press-To-Talk (PTT) momentary mic key for controlled announcements.
-
Configurable gain, speech-filter, limiter and output-level settings to optimize voice clarity.
-
Loop-through RJ45 Cat-5 connection enables up to six call stations to be daisy-chained and supports up to 600 m remote placement.
-
LED status indicators for system state: standby/chime, mic active, or occupied by higher-priority call.
Technical specification:
|
Power Supply |
24 V DC (supplied by PLN-6AIO240) |
|
Voltage |
24 Vdc(24 Vdc supplied by PLN‑6AIO240) |
|
Current consumption |
<50 mA |
|
Performance |
|
|
Nominal acoustic sensitivity |
85 dB SPL @ 1 kHz (gain preset 0 dB) |
|
Nominal output level |
1 V |
|
Input sound level (max.) |
110 dB SPL |
|
Gain preset |
|
|
Limiter threshold |
1 V |
|
Compression ratio limiter |
1:20 |
|
Distortion |
<2% (maximum input) |
|
Input noise level (equiv.) |
25 dBA SPL |
|
Frequency response |
100 Hz to 14 kHz +/-6 dB |
|
Speech filter |
-3dB @ 315 Hz, high-pass, 6 dB/oct |
|
Output impedance |
200 ohm |
|
Selections |
|
|
Chimes |
1-, 2- or 4-tone chime selected on Call Station |
|
Base dimensions (H x W x D) |
55 x 108 x 240 mm(1.57 x 3.97 x 9.25 in) |
|
Weight |
Approx. 0.5 kg (1.1 lb) |
|
Mounting |
Tabletop |
|
Color |
Charcoal with silver |
|
Stem length with microphone |
390 mm (15.35 in) |
|
Connection |
2 x RJ45, Cat‑5, max. length 600 m |
|
Operating temperature |
-10ºC to +45ºC (14ºF to +113ºF) |
|
Storage and transport temperature |
-40ºC to +70ºC (-40ºF to +158ºF) |
|
Relative humidity |
<95% (non‑condensing)
|
