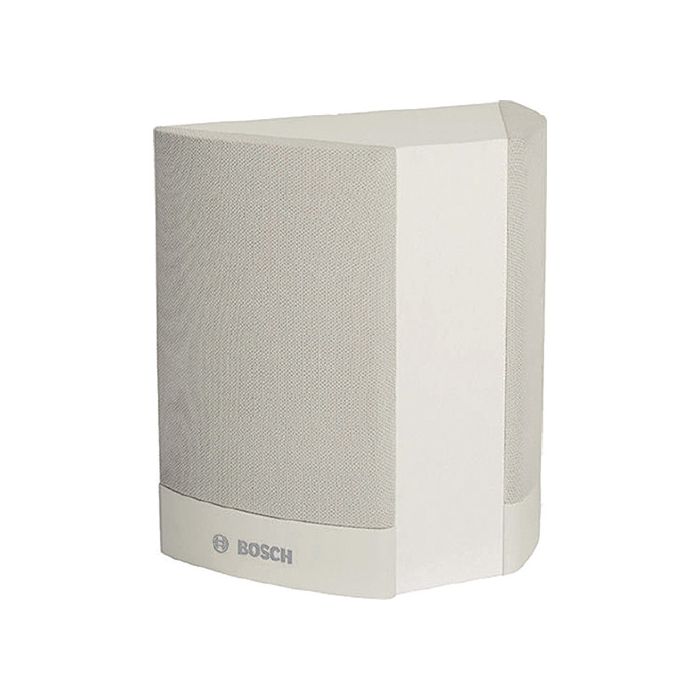

Bosch LB1-BW12-L1 BI DIRECTIONAL CABINET SPEAKER 12W - WHITE in Bangladesh
Bosch LB1-BW12-x Overview
ü The wedge-shaped design provides bidirectional audio, ideal for use in long corridors
ü The MDF construction, vinyl covering, ABS front, and cloth grille provide lasting looks and durability
ü The angled front baffle provides better sound quality in the listening area
ü The speaker has a 12W (18W Peak) power rating to deliver a strong performance
ü The rear panel has 3 keyhole-style cutouts for convenient wall mounting
Complies with international installation and safety regulations
Key Features:
- Wedge-Shaped Design
- MDF Construction
- 12W Rated Power
- Rear Mounting Keyholes
deterioration.
Technical description:
|
Maximum power |
18 W |
|
Rated power |
12 W (12 / 6 / 3 W) |
|
Sound pressure level at 12 W / 1 W (1 kHz, 1 m) |
97 / 86 dB (SPL) |
|
Effective frequency range (-10 dB) |
140 Hz to 20 kHz |
|
Opening angle 1 kHz / 4 kHz (-6 dB) |
270° / 165° |
|
Rated input voltage |
100 V |
|
Rated impedance |
833 ohm |
|
Connector |
4-pole push-in terminal block |
|
Dimensions (H x W x D): |
240 x 238 x 152 mm / (9.4 x 9.3 x 5.9 in) |
|
Weight |
1.5 kg (3.3 lb) |
|
Color |
Black (D) (RAL 9004 / RAL 9004) or white (L) (Matches RAL 9010 / RAL 7044) |
|
Operating temperature |
-25 ºC to +55ºC (-13 ºF to +131 ºF) |
|
Storage temperature |
-40 ºC to +70 ºC (-40 ºF to +158 ºF) |
|
Relative humidity |
<95% |
