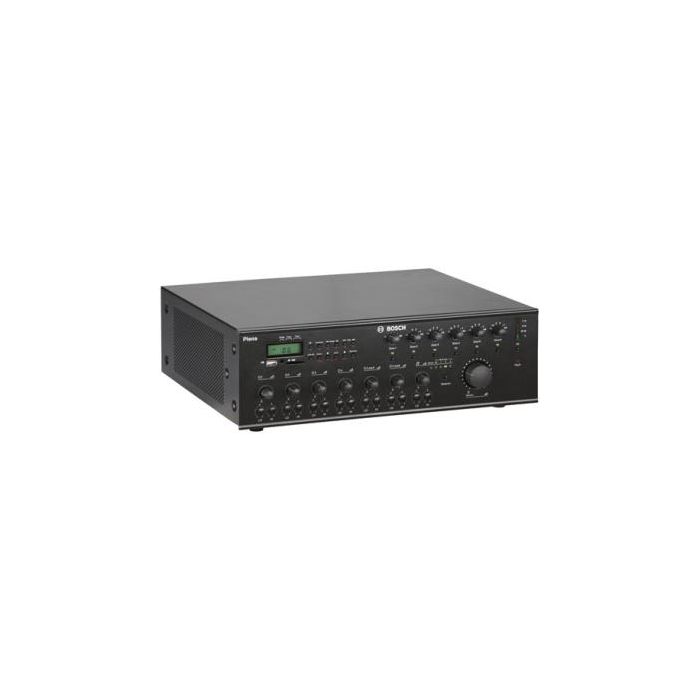

PLN-6A1IO240 240W 6 ZONE ALL IN ONE MIXER AMPLIFIER

Product Details:


Mains power supply
Voltage	115/230 Vac +/- 15%, 50/60 Hz
Fuse rating	6.3 A (230 Vac) 10 A (115 Vac)
Power consumption	720 W max
Performance
Frequency response	Microphone inputs: 100 Hz – 15 kHz +1/-3dBLine inputs: 50 Hz – 20 kHz +1/-3dB (+1/‑3 dB @ ‑10 dB ref. rated output)
Distortion	<1% @ rated output power, 1 kHz
Bass control	+/- 8 dB @ 100 Hz
Treble control	+/- 8 dB @ 10 kHz
Remote devices	2 x
Call station input	RJ45 for PLN‑6CS
Wall panel input	RJ45 for PLN‑4S6Z
Microphone/Line input	Input 1‑4: mic Input 5‑6: mic/line
Input 1 (Push-to-talk contact for priority/ducking)	RJ45 for PLE‑1CS or PLE‑1SCS3‑pin XLR, balanced, phantom
Input 2-6 (with signal detector for priority/ducking)	3‑pin XLR, balanced, phantom
Sensitivity	1.5 mV (mic); 200 mV (line)
Impedance	>600 ohm (mic); >10 kohm (line)
S/N (flat at max volume)	>65 dBA (mic); >70 dBA (line)
CMRR (mic)	>40 dB (50 Hz to 20 kHz)
Headroom	>25 dB
Phantom power supply	18 V – No load
Level detector (VOX) on Inputs 1-6	Attack time 150 ms; release time 3 s
Battery power supply
Voltage	24 Vdc (22 Vdc – 28 Vdc)
Current	12 A
Music inputs	3x
Connector	Cinch, stereo converted to mono
Sensitivity	500 mV (inputs1/2) and 300 mV (input 3)
Impedance	10 kohm
S/N (flat at max volume)	>65 dBA
S/N (flat at min volume/muted)	>75 dBA
Headroom	>20 dB
Emergency / telephone	1 x
Connector	7‑pin, Euro style pluggable screw terminal
Sensitivity line input	100 mV
Sensitivity 100V input	100 V
Impedance line input	600 ohm
S/N (flat at max volume)	>70 dBA
Level detector (VOX)	Threshold 50 mV; attack time 150 ms; release time 3 s
Insert	1 x
Connector	Cinch
Nominal level	1 V
Impedance	>10 kohm
Distortion	<1 %
Total harmonic distortion (1 kHz)	< 0.8 %
FM range	87.5 - 108 MHz
Frequency response	60 Hz - 12 kHz
Intermediate rejection	≥ 70 dB
Image rejection	≥ 50 dB
S/N ratio	≥ 50 dB
Intermediate frequency	10.7 MHz
Input sensitivity	8 μV
Automatic tuning sensitivity	≤ 50 μV
Antenna input	75 ohms (coaxial)
AM tuner
AM range	530 - 1602 kHz
Input sensitivity	30 μV
Digital audio player	1 x
Frequency response	20 Hz to 20 kHz
S/N ratio	>70 dBA
Total harmonic distortion (1 kHz)	<1 %
Supported formats	MP3, 32 - 320 kbps
Master/music output	1 x
Connector	3‑pin XLR, balanced
Nominal level	1 V
Impedance	<600 ohm
Loudspeaker outputs 100 V
Connector	Screw, floating
Total power	240 W
Direct outputs	100/70 V, 8 ohm
Zone outputs 1-6	100/70/50/35/25/17 V

Dimensions (H x W x D)	133 x 430 x 365 mm with feet(19" wide, 3 U high)
Weight	Approx. 18 kg
Mounting	Standalone, 19” rack
Color	Charcoal

Operating temperature	-10 ºC to +45 ºC (14 ºF to +113 ºF)
Storage and transport temperature	-40 ºC to +70 ºC (-40 ºF to +158 ºF)
Relative humidity	<95% (non‑condensing)

Acoustic noise	< 45 dB SPL, measured at 1 meter above the unit
MTBF	1200000 hours at 25°C
