Bosch PLE-1CS CALL STATION SINGLE ZONE in Bangladesh
Key features:
- PTT-key for calls for activation
- Momentary or toggle
- Green LED, indicating microphone active
- Stable metal base design with fixed 2 m cable and lockable Euro style connector
- Phantom powered by amplifier
Product Description:

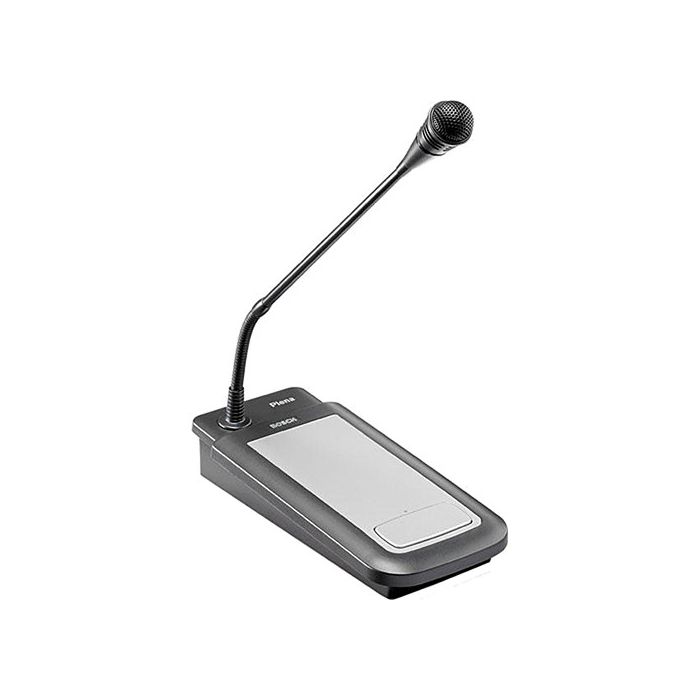

The Plena tabletop microphone is a stylish, high-quality tabletop unidirectional condenser microphone, intended for making calls in a public address system. Its heavy metal base and rubber feet ensure stability on any flat surface. The special design also allows the unit to be neatly flush-mounted in desktops.
The PTT-key (press-to-talk), not only switches on the microphone, but also provides priority contacts, that are compatible with the Plena range of amplifiers. The switching characteristic of the PTT-key can be configured internally for PTT-mode (on as long as pressed) or toggle mode (press to switch on, press again to switch off).
Technical specification:
Phantom power supply
Voltage range 12 to 48 V
Current consumption <8 mA
Performance
Sensitivity 0.7 mV @ 85 dB SPL (2 mV/Pa)
Maximum input sound level 110 dB SPL
Distortion <0.6% (maximum input)
Input noise level (equiv.) 28 dB SPLA (S/N 66 dBA ref. 1 Pa)
Frequency response 100 Hz to 16 kHz
Output impedance 200 ohm
Mechanical
Base dimensions (H x W x D) 40 x 100 x 235 mm
(1.57 x 3.97 x 9.25 in)
Weight Approx. 1 kg (2.2 lb)
Color Charcoal with silver
Stem length with mic. 390 mm (15.35 in)
Cable length 2 m (6.56 ft)
Environmental
Operating temperature -10 ºC to +45 ºC (14 ºF to +113 ºF)
Storage temperature -40 ºC to +70 ºC (-40 ºF to
+158 ºF)
Relative humidity <95%
