SPECIFICATIONS:

Brand

BOSCH

Model No:

LHM 06060/10

Type

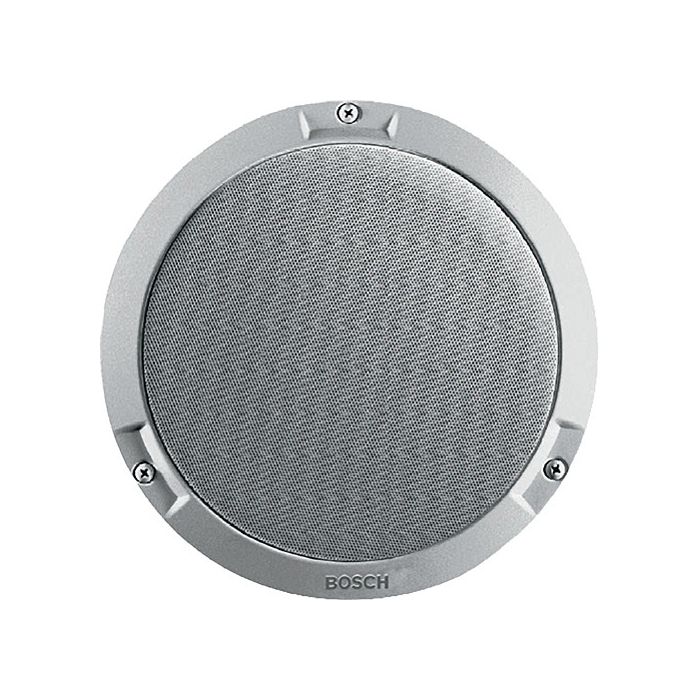

Bosch Ceiling Loudspeaker

Electrical

Maximum power

9 W

Rated power

6 / 3 / 1.5 W

Sound pressure level at 6 W / 1 W (1 kHz, 1 m)

94 dB / 86 dB (SPL)

Sound pressure level at 6 W / 1 W (4 kHz, 1 m)

106 dB / 98 dB (SPL)

Effective frequency range (-10 dB)

80 Hz to 18 kHz

Opening angle at 1 kHz/4 kHz (-6 dB)

175° / 55°

Rated voltage

100 V

Rated impedance

1667 ohm

Connection

Flying leads

Mechanical

Diameter

199 mm (7.8 in)

Maximum depth

70.5 mm (2.8 in)

Mounting cut-out

165 + 5 mm (6.5 + 0.20 in)

Speaker diameter

152.4 mm (6 in)

Weight

620 g (1.37 lb)

Color

White (RAL 9010)

Environmental

Operating temperature

-25 ºC to +55 ºC (-13 ºF to +131 ºF)

Storage temperature

-40 ºC to +70 ºC (-40 ºF to +158 ºF)

Relative humidity

<95%

Warranty:

1 year
