Bosch LB6-100S-D 100W SPEAKER. 1 x WOOFER & 4 x SPEAKER. WALL MOUNT. BLACK COLOR in Bangladesh
Product description:

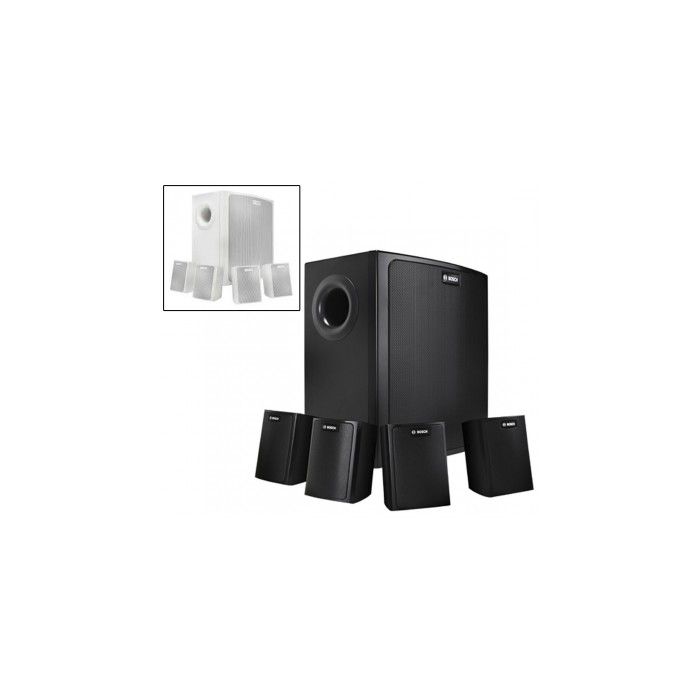

The Bosch LB6-SW100S-D is a complete background music system in a box consisting of a subwoofer with four matched satellite speakers.
The large 8-inch (200 mm) woofer transducer gives a substantial low frequency output and the neat and unobtrusive satellite speakers connect directly to this for ease of installation.
Supports low impedance wiring, mono and stereo as well as 100 volt line with subwoofer power tappings at 100w, 50w, 25w, and 12.5w.
The Bosch LB6SW100 is available in black (LB6-SW100S-D) is the ideal one box solution for background music in schools and homes, small retail stores and restaurants.
Technical specification:
|
LB6 S satellite speaker, LB6 SW100 sub |
|
|
Frequency Response (-10 dB): |
180 Hz - 20 kHz1 , 42 Hz - 300 Hz1 |
|
Power Handling: |
30 W2 , 200 W |
|
Sensitivity: |
84 dB , 88 dB |
|
Impedance: |
16 ohms , Dual 8 ohm / mono 4 ohm |
|
Maximum SPL: |
102 dB , 114 db |
|
Voice Coverage (H x V): |
150° x 150° , Omnidirectional |
|
Music Program Coverage (H x V): |
100° x 100° , Omnidirectional |
|
Transducer: |
50 mm (1.97 in) , 200 mm (7.87 in) |
|
Bracket Adjustment Range (H x V): |
160° x 60° , Fixed |
|
Connectors: |
Phoenix (2-pin) , Phoenix (2-pin) |
|
Enclosure: |
ABS (fire rated) , Wood (MDF) |
|
Transformer Taps: |
NA , 100 W, 50 W, 25 W, 12.5 W |
|
Dimensions (H x W x D): |
115 mm x 85 mm x 95 mm(4.53 in x 3.35 in x 3.75 in) , 400 mm x 400 mm x 230 mm(15.75 in x 15.75 in x 9.06 in) |
|
Net Weight: (each) |
0.5 kg (1.1 lb) , 12.05 kg (26.55 lb) |
