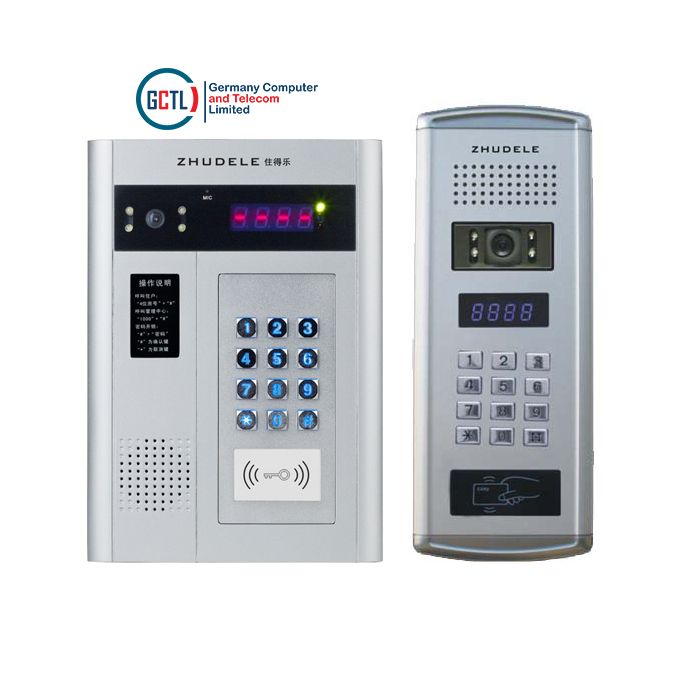

ZHUDELE ZDL-980C83R VIDEO DOOR PHONE
Outdoor camera with rain shade can avoid direct sunshine. High definition camera, Night vision.
Quick Details:
- IP56 waterproof outdoor unit.
- Intercommunication is available between indoor unit and outdoor unit.
- Damage-proof outdoor unit.
- Hands-free intercommunication.
- Monitoring the outdoor.
- Brightness, chroma and ring adjustable.
- 8-chord melody rings for option.
- DIY installation.
DESCRIPTION:
Multi-home: Video door phone
Color video door phone
From 5 to 9,999 homes on a single outdoor station
Wiring:
Monitor/Decoder:8-wire connector
CAT-5,Max.100m
Outdoor station/Decoder:8-wire connector
CAT-5,Max.100m
Station/Power supply:2×1.0mm² – Max.50m
Decoder/Power supply:2×1.0mm² – Max.50m
4.3-inch,7-inch and 8.3-inch Hands-free”Monitors:
Color:white
Screen size:4.3-inch/ 7-inch/ 8.3-inch
Number of ring tones: 8 melodies
Settings buttons (volume,brightness,contrast and color)
Control button for e-lock
Mounting: wall-mount
Surface or flush-mounted
Outdoor station:
Color: Silver/Golden
Rain-shield included with model ZDL-980C72R
Lens:92°,infrared diodes,CCD 580TVL camera
Keypad:used to select a flat and
to operate access controls
LCD screen:displays the number of the flats
