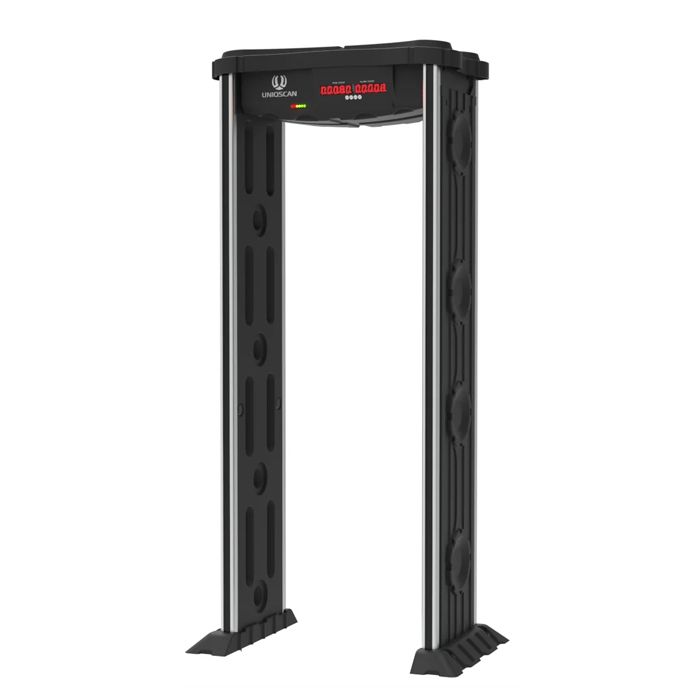

UNIQSCAN UM500 18 Zone Walk Through Metal Detector

UniqScan UM500 walk-through metal detector specially designed for outdoor use. The overall appearance material is made of ABS, which is heavy in quality. The wide foot cover also makes the product more stable and not afraid of interference. The touch button operation is not afraid of rainwater immersion. It is suitable for large outdoor venues.

Buy Archway Gate Walk Through Metal Detector in Bangladesh from GCTL, the leading importer and supplier. Ensure maximum security with advanced multi-zone detection, high sensitivity and user-friendly operation. Get the best price, fast delivery and full warranty for your security solutions.

Technical Parameters:

Zone Count	18 Zone
Vertical Dimension	2200 x800 x 580mm
Vertical Dimension of Passage	2010 x 700 x 500mm
Net Weight	70.5KG
Gross Weight	82KG
Operating voltage	AC85V~264V/50Hz
Power Dissipation	≦10W low power consumption
Operating frequency	4K-8KHz (adjustable)
Smallest detectable unit	Five Taka Coin
Control Outputs	Alarm area indicator and buzzer
Zone's Sensitivity	0-99, 100 levels (adjustable)
Infrared beam mode	One-way, two-way, can be closed
Infrared passing speed	50-120/min
Visual Displays	Digital tube display
Multi-Unit Synchronization	Manual

The metal detector’s Access Control Panel is designed for use by authorized personnel with specific, multi-level security codes. It allows authorized users to change settings such as detection Program and Sensitivity. A tamper alarm sounds within 10 seconds after the Access Touchpad is pressed unless a proper access code is entered.

The power socket is covered under the rain shed.
The top is like an umbrella far from the machine body, around 5cm.
Alarm strength indicator on the control panel
Password protection, only the authorized person can operate.
Program Self-diagnostic when power on, no need for initial or periodic calibration.
Modularization design, easy for maintenance and replacement.
Harmless to the human body: is harmless with heart pacemakers, pregnant women, magnetic floppy, recording tapes, etc.
Sound & LED alarm: Both Side LED indicator
33 zones, Sensitivity adjustable: Each zone has 100 sensitivity level
ABS material for the whole machine, both for the body and control unit
IP grade is optional for IP65
Strong aluminum to protect 4 sides so the shape won’t change

We own all of the intellectual property rights (IPR) to its core technologies and have an experienced engineering team. Our excellent technical development capacity supports us are able to have continuously new production lines. The Uniqscan metal detector is a leader in global safe drilling and handheld metal detection products and training. From the Olympics to international airports around the world, Uniqscan has reliable experience, expertise, and reliable products to make your facilities or events safer.
