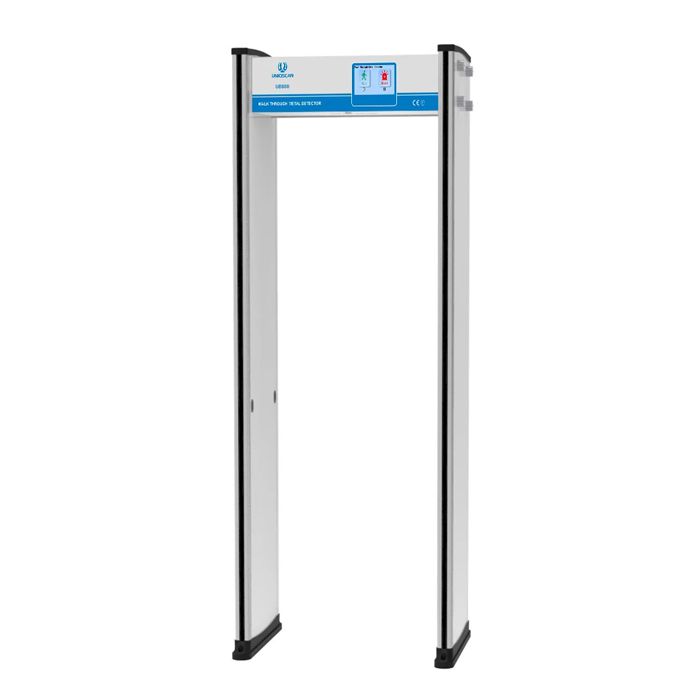

UNIQSCAN UB800 33 Zone Walk-Through Metal Detector
UNIQSCAN UB800 33 Zone Walk Through Metal Detector
Brand: UNIQSCAN
Model: UB800
Country of Origin: China
Feature Highlights:
Zone Count: 33 Zones
Specialty: 4 hours Battery Backup
Usage: Security Check
Certification: CE/ROHS/ISO9001
Type: 33 ZONES / MULTIZONE
Detector: Common Metal
UNIQSCAN UB800 33 Zone Walk Through Metal Detector
UniqScan UB800plus is a highly versatile walkthrough metal detector , with 33 zone and adjustable sensitivity making it widely used in airports, stations, shopping malls, and other security inspection places. this product. The detection structure uses electromagnetic field to detect the metal objects in the body. It consists of a host, a high-frequency signal generator, a signal receiver, and an infrared sensor. It uses sound and light to alarm indicate that the metal objects in the body exceed a certain amount. It is used for security inspection. It can speed up the detection efficiency during the project.
Buy Archway Gate Walk Through Metal Detector in Bangladesh from GCTL, the leading importer and supplier. Ensure maximum security with advanced multi-zone detection, high sensitivity and user-friendly operation. Get the best price, fast delivery and full warranty for your security solutions.
Technical Parameters:
| Zone Count | 32 Zone |
| Vertical Dimension | 2200 x800 x 580mm |
| Vertical Dimension of Passage | 2010 x 700 x 500mm |
| Net Weight | 70KG |
| Gross Weight | 82KG |
| Operating voltage | AC85V~264V/50Hz |
| Power Dissipation | ≦10W low power consumption |
| Operating frequency | 4K-8KHz (adjustable) |
| Working Environment Temperatute | -20oC ~ 45oC |
| Maximum Sensitivity | >100 Levels |
| Zone's Sensitivity | 0-999, 1000 levels (adjustable) |
| Weatherproofing | IP53 |
| Infrared passing speed | 60/min |
| Detection mode | Bilateral Transmission Bilateral Reception |
| Multi-Unit Synchronization | Manual |
| Only turn off the screen display,press the button or infrared in the standby mode to wake up |
| When the standby time is less than 10 minutes, sleep after 1 hour, the standby time is more than 10 minutes and sleep after 6 times standby time |
| System detect whether there is a fault in the system |
| 6/12/18/zones, can be randomly divided to accurately determine the location of metal objects |
| Alarm sound and light alarm simultaneously, support record max 99999 alarm times |
| Alarm query can check the alarm record according to the date time and the indicator light |
| Digital circuit design, anti-omission of report, infrared anti-disturbance and with strong anti-interference ability |
| High–middle and low sensitivity adapts to all security check site quick debugging |
| Battery backup power will not be less than 8 hours |
| Effectively prevent data from being illegally modified or mis-operated, which may result in abnormal work |
The UB-800’s Access Control Panel is designed for use by authorized personnel with specific, multi-level security with password protection; only the authorized person can operate； Sound & LED alarm: Both Side LED indicators easily show where the metal is, Automatically count passengers, and alarm times.
- 33 distinct zones are displayed with two (2) independent columns of LEDs
- Self-diagnostic program: complete and automatic
- 7-inch LCD screen, remote control, English program
- Sensitivity: 0-999 distinct sensitivity levels, adjustable
- Automatically count passengers and alarm times, 5 digits counter
- Password protection
- Harmless to heart pacemakers, pregnant women. etc
- Modularized design, simple installation, and after-sales services
- 15 preset programs for security applications *
- 5 digits counter. Automatically count passengers and alarm times
- High sensitivity: Ferrous/ non-ferrous /Alloy can be detected
- Alarm volume range from level 1 to 9
- Alarm tones: Change from 0 to 9 (10 different tones for choosing)
