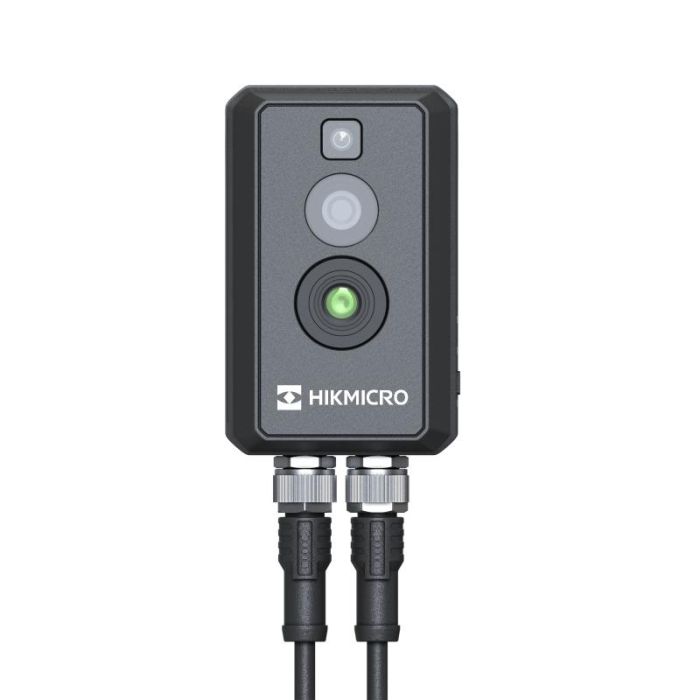

Hikvision HM-TD3028T-2/Q(B) Thermography Cube Camera
Body Temperature Measuring Thermal Camera
Brand : HIKVISION
Model : HM-TD3028T-2/Q(B)
Thermal Sensor: 256 × 192 VOx Uncooled Focal-Plane Array
Thermal Waveband: 8 µm to 14 µm
NETD: < 40 mK (@25 °C
Optical Sensor: 1/5″ Progressive-Scan CMOS
Thermal Focal Length: 2.1 mm fixed
Optical Focal Length: 1.4 mm fixed
Temperature Measurement Range: –20 °C to 150 °C
Temperature Accuracy:± 2 °C or ± 2 %
Body Temperature Measuring Thermal Camera
This Body Temperature Measuring Thermal Camera enables fast, non-contact thermographic screening of individuals, delivering accurate measurement of surface skin temperature in real time. With dual-channel thermal and optical imaging, it supports customizable temperature-measurement rules, alarm triggers for temperature exceptions, and is housed in a rugged IP67-rated enclosure suitable for indoor & outdoor deployment. Perfect for entrances, workplaces, clinics and public venues.
Key Features
-
Dual-channel imaging: uncooled thermal-sensor module (256×192 resolution) plus high-definition optical channel (2688×1520) enables detailed visual context and temperature detection.
-
Real-time temperature measurement across points, lines and areas, supports up to 10 points, 10 regions and 1 line simultaneously.
-
Wide temperature-measurement range: -20 °C to 150 °C (or optionally up to 0 °C to 550 °C) with maximum accuracy ± 2 °C or ± 2 %.
-
Smart alarm and exception-detection: triggers alerts when measured temperature exceeds preset threshold, ideal for fever-screening scenarios.
-
Rugged, weather-proof build (IP67 rating) with compact dimensions and low power consumption (12 V DC or PoE).
-
Video compression support (H.264, H.265, MJPEG) with network interface and alarm I/O for full integration into security infrastructure.
Technical Specification
| Call for Price | No |
|---|---|
| Brand | Varito |
