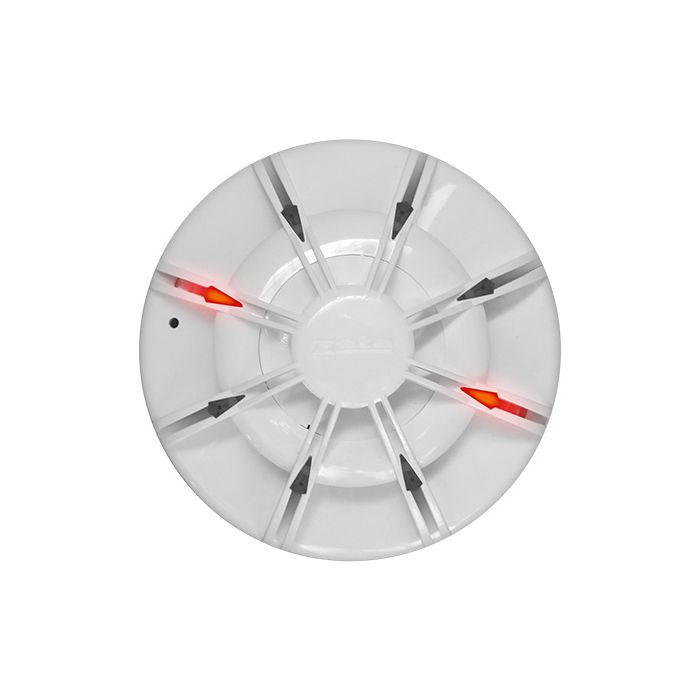

Zeta MKII-OH MKII Fyreye Conventional Optical-Heat Detector
Zeta Fyreye MKII-OH Optical-Heat Detector
Brand: Zeta
Model: MKII-OH
Detector Class: Combined Smoke & Heat
Design Standard: EN54 part 5 & 7
Approval: LPCB / DIFT, CPD
Operating Voltage: 9-33 V DC
Quiescent Current: Approx. 40 µA
Zeta MKII-OH MKII Fyreye Conventional Optical-Heat Detector
The Zeta Fyreye MKII-OH Optical-Heat Detector combines optical smoke detection and fixed-temperature heat sensing in a single conventional detector. Compliant with EN54-5 & EN54-7, it’s ideal for zones where both smoke and heat risks exist, such as hotels, offices or storage warehouses.
Key Features
-
Dual sensor design: optical chamber for smoke plus thermistor for fixed-temperature (57 °C) heat detection.
-
Certified to EN54 parts 5 & 7 with LPCB approval (CPD 0845-CPD-232.1703).
-
Low current consumption: standby approx. 40 µA; alarm current approx. 34 mA @ 24 V DC.
-
Wide operating range: 9-33 V DC supply voltage range; operating temperature -10 °C to +50 °C.
-
Lockable base prevents unauthorized removal, and remote LED output available for status monitoring.
-
Compatible with all Fyreye MKII bases (common, diode, deep) for straightforward installation and replacement.
Technical Specifications
|
Specification |
Detail |
|
Model |
MKII-OH |
|
Detector Class |
Combined Smoke & Heat (Optical + Fixed Heat) |
|
Design Standard |
EN54 part 5 & 7 |
|
Approval |
LPCB / DIFT, CPD number 0845-CPD-232.1703 |
|
Operating Voltage |
9-33 V DC |
|
Quiescent (Standby) Current |
Approx. 40 µA |
|
Alarm Current @ 24 V |
Max approx. 34 mA |
|
Operating Temperature |
-10 °C to +50 °C |
|
Maximum Humidity |
95% RH, non-condensing |
|
Alarm Conditions |
Optical: 2.4% obscuration/m OR Fixed-Heat trigger @ approx. 57 °C |
|
Coverage |
Up to ~100 m² |
|
IP Rating |
IP43 |
|
Start-up Time |
10 seconds |
|
Size (with Base) |
Approx. 101 × 64 mm |
|
Weight (with Base) |
Approx. 75 g |
