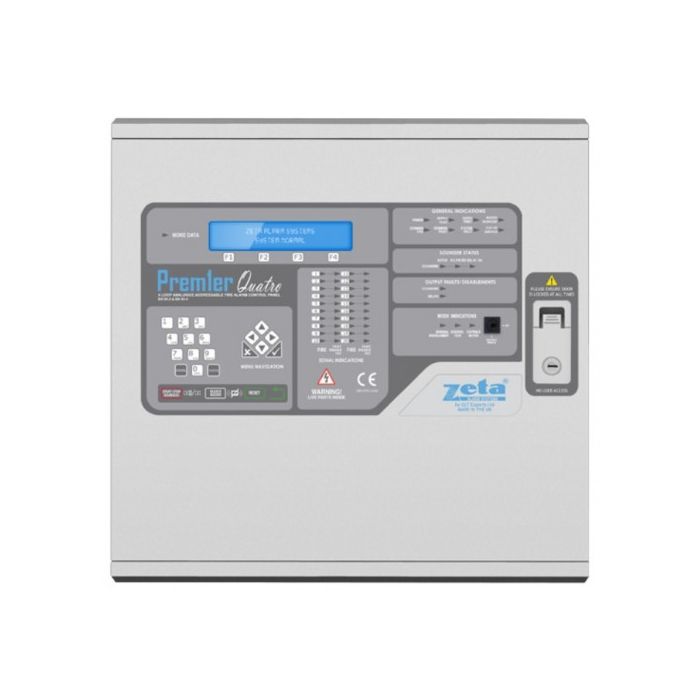

Zeta Analogue Addressable 4 Loop Fire Alarm Panel
Features
-1-4 loop, expandable by loop cards
-20 zone LEDs
-250 programmable zones
-Multi-language support (currently English & Spanish, 3 more languages TBC)
-Real Time Clock
-3072 entry event log
-20 character device text
-20 character zone text
-Zone or Device Disablement
-2 x conventional sounder circuits
-Aux 24V supply
-1 x fire relay
-1 x fault relay
-Outputs programmable by zones
-Can be configured via PC or via Panel.
Brand : ZETA
Model : Quatro - QT/4
Country of Origin: UK
Description :
The Quatro control panel is designed, manufactured and tested to fully meet the requirements of EN54 part 2 and part 4. This panel is of a modular nature and can be supplied in 1, 2, 3, and 4 loop
versions. A specially designed Quatro Connect software is available for configuring the panel or multi panels and download to the system via USB connection. Up to 64 panels/repeaters can be networked over 10,000m of data cable and a special alarm management system can provide all
needs for very large projects such as university campus, hospital complex etc.
Technical Specifications:
|
Model |
QT/1 |
QT/2 |
QT/3 |
QT/4 |
|
Part No |
37-500 |
37-501 |
37-502 |
37-503 |
|
Supply Voltage |
230V +10%/-15% @ 50-60 Hz |
|||
|
System Voltage |
29.5V Nominal |
|||
|
Number of loops |
1 |
2 |
3 |
4 |
|
Loop Capacity |
250 |
250 |
250 |
250 |
|
Zonal Indication - LED |
20 |
20 |
20 |
20 |
|
Zonal Indication - LCD |
250 |
250 |
250 |
250 |
|
Fault Output |
Normally Energized Relay: 30V @ 1A |
|||
|
Fire Output |
Relay: 30V @ 1A |
|||
|
Alarm Output |
2 x Conv Sounder Output @ 450mA |
|||
|
Printer |
NO |
NO |
NO |
NO |
|
Dimensions |
485 x 477.5 x 128 |
|||
|
Max Battery size |
17Ah |
|||
|
IP Rating |
IP30 |
|||
|
Operating Temperature |
-5oC to + 50oC |
|||
