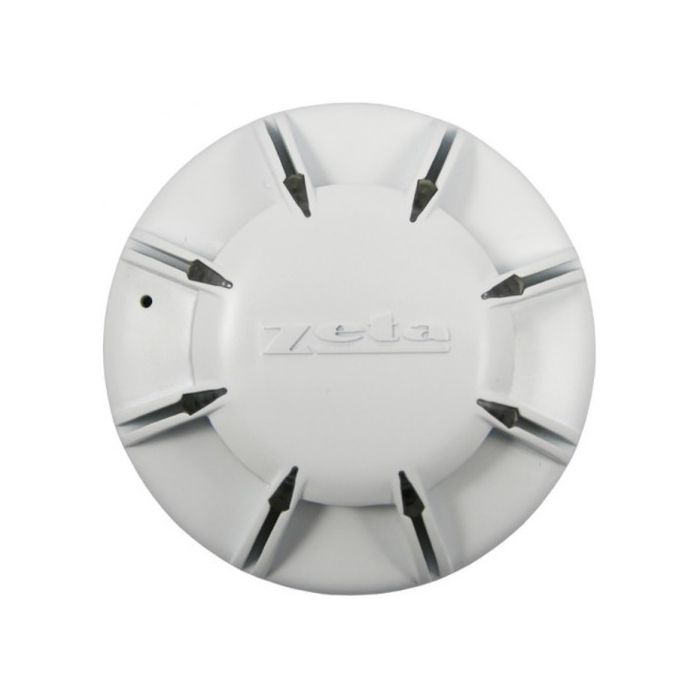

Zeta Addressable Smoke Detector
Features
- Designed to meet EN54 requirement
- Lockable to base to stop unauthorized removal
- Remote LED output
- 8 LEDs for improved, 360° visibility
- Compatible with all Fyreye MkII bases
- Addressed with dip switches or hand-held Programmer
Brand : ZETA
Model : MKII-AOP
Country of Origin: UK
Description :
The Fyreye MKII optical smoke detector (MKIIAOP) uses a pulsing IR LED & photodiode to
detect IR scatter caused by smoke entering the chamber. The detector is particularly suitable for detecting optically dense smoke, involving materials such as soft furnishings, PVC, plastic, foam and all similar materials which produce small visible particles (0.5 to 10μm).
Technical Specifications:
|
Model |
MKII-AOP |
MKII-AOP/B |
MKII-AOH |
MKII-AOH/B |
|
Part No. |
80-210 |
80-210/B |
80-216 |
80-216/B |
|
Detector Class |
Optical Smoke |
Combined Smoke & Heat A1 |
||
|
Design Standard |
EN54 part 7 |
EN54 parts 5 & 7 |
||
|
Approval |
LPCB |
|||
|
Operating Voltage |
17 to 28V DC |
|||
|
Quiescent Current |
500μA |
|||
|
Alarm Current @ 24V DC |
5mA |
|||
|
Operating Temp. (°C) |
-10 to +50°C |
-10 to +50°C |
||
|
Min. Continuous Temp. |
0°C |
|||
|
Max. Humidity |
95% RH non-condensing |
|||
|
Alarm Condition |
0.09dB/m to 0.11dB/m |
0.09dB/m to 0.12dB/m Fixed heat trigger @ 57°C |
||
|
Coverage |
100m² |
100m² |
||
|
IP Rating |
IP43 |
|||
|
Start-up Time |
10 Seconds |
|||
|
Size (with Base) |
100 x 49 mm |
100 x 59 mm |
||
|
Weight (with Base) |
75g (133g) |
|||
|
Remote Output |
5mA at 24VDC |
|||
| Call for Price | Yes |
|---|---|
| Brand | Zeta |
