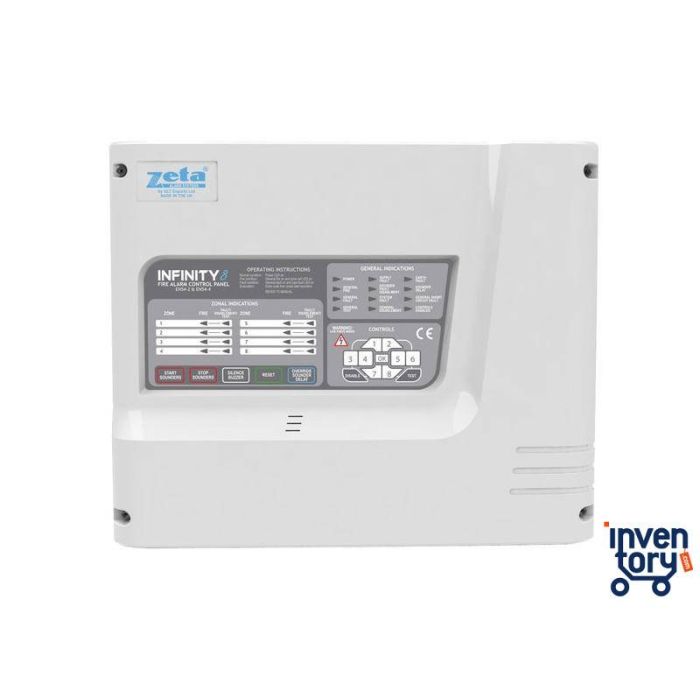

Zeta 8 Zone Conventional Fire Alarm Panel
Features:
- Access via password – removes problem of lost keys
- One man test facility
- Disablement facility for zones & sounders
- Space for up to 3Ah batteries
- Sounder delay option
- 4 sounder circuits (IN4, IN6 & IN8)
- Sounder circuits 3 and/or 4 can be configured as Aux 24V supplies
- Meets all requirements of latest EN54 part 2 and part4
Brand : ZETA
Model : Infinity 8 – IN8
Country of Origin: UK
Description :
The Infinity 8 control panel is housed in the most attractive, modern designed, flame retardant ABS enclosure, utilizing a switch mode power supply. It has a fully removable front cover which improves ease of access for cable installations.
Technical Specifications:
|
Model |
IN1 |
IN2 |
IN4 |
IN6 |
IN8 |
|
Part No |
37-650 |
37-651 |
37-652 |
37-653 |
37-654 |
|
Mains Voltage |
230V AC +10% / -15% @ 50/60 Hz |
||||
|
System Voltage |
24V DC (Nominal) |
||||
|
Zone Voltage |
21V DC (Nominal) |
||||
|
Sounder Alarm Output |
2 x 150mA @ 24V DC |
4 x 150mA @ 24V DC |
|||
|
Fire Relay |
1 x Volt Free Relay, SELV @ 1A Max |
||||
|
Fault Relay |
1 x Volt Free Relay, SELV @ 1A Max |
||||
|
Zone Capacity |
32 devices per zone |
||||
|
Remote sounder operation |
Via N/O contact connected to Class Change |
||||
|
Sounder Activation Delay |
0 to 10 minutes in 1 minute increments |
||||
|
Zone End of line |
1N4002 Diode (Cathode Stripe to Zone +ve) |
||||
|
Sounder End of Line |
10K resistor |
||||
|
Charger Voltage |
27.6V |
||||
|
Battery cut off |
Battery voltage less than 20V |
||||
|
Battery Internal Resistance limit |
0.9 ohm |
||||
|
Enclosure size |
371 x 302 x 93 (mm) |
||||
|
Weight |
3 kg (Excluding Batteries) |
||||
|
Maximum battery space |
2 x 3.4 Ah, 12 Vdc sealed lead acid |
||||
