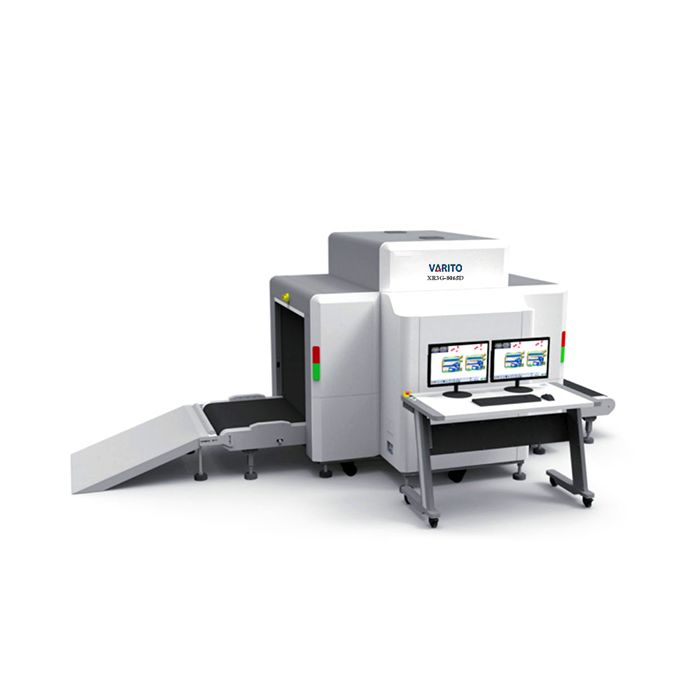

VARITO XR3G-8065D Dual View Baggage Scanner
VARITO XR3G-8065D Dual View Baggage Scanner
Model: XR3G-8065D
Tunnel Size (W × H): 800mm × 650mm
Dimensions (L × W × H): 2780mm × 1540mm × 1450mm
Console Table Size (L × W × H): 1200mm × 600mm × 750mm
Equipment Net Weight: 650kg
Conveyor Load Capacity: 200kg
Conveyor Speed: 0.22 m/s
Conveyor Belt Height: 320mm
Scanning Direction: Dual-direction
Noise Level: <55 dB
Power Consumption: 1000W
VARITO XR3G-8065D Dual View Baggage Scanner
VARITO XR3G-8065D is an advanced dual view 160kV X-ray baggage scanner designed for medium to large luggage in high-traffic security checkpoints. With 42mm steel penetration, dual-view top and side irradiation, 800×650mm tunnel and ergonomic 320mm conveyor height, it delivers fast, accurate threat detection for hotels, stations, airports and public venues while ensuring high safety and user-friendly operation.
Key Features
-
Dual view X-ray imaging (top + side) for more accurate baggage inspection
-
160kV primary & side sources for clear, detailed dual-energy images
-
42mm steel penetration for superior detection of dense objects
-
800mm × 650mm tunnel suitable for medium and large baggage
-
320mm conveyor height for comfortable, easy luggage loading
-
Dual-direction scanning to increase throughput and inspection efficiency
-
Central alarm indicator for clear visual status and suspicious object alerts
-
High-resolution imaging with AWG 40 (φ0.0787mm) wire resolution
-
Two 21.5" Full HD (1920×1080) LCD monitors for simultaneous dual-view display
-
Advanced image processing: color/B&W, zoom, high/low penetration, organic removal
-
Integrated explosives & narcotics detection and suspicious object alarm
-
Threat Image Projection (TIP) for ongoing operator training and vigilance
-
Durable heavy-duty design with 200kg conveyor load for high-traffic sites
-
Optional AI recognition (41 classes), camera solution and UPS backup
-
Compliant with GB 12664-2024, CE, ROHS, FCC standards
Technical Specifications
|
Item |
Specification |
|
Model |
VARITO XR3G-8065D Dual View Baggage Scanner |
|
Application |
Medium to large baggage X-ray inspection |
|
Tunnel Size (W × H) |
800mm × 650mm |
|
Dimensions (L × W × H) |
2780mm × 1540mm × 1450mm |
|
Console Table Size (L × W × H) |
1200mm × 600mm × 750mm |
|
Equipment Net Weight |
650kg |
|
Conveyor Load Capacity |
200kg |
|
Conveyor Speed |
0.22 m/s (adjustable) |
|
Conveyor Belt Height |
320mm (from ground) |
|
Scanning Direction |
Dual-direction |
|
Noise Level |
<55 dB |
|
Power Consumption |
1000W |
|
Power Supply |
AC 220V, 50Hz |
X-Ray Generator & Safety
|
Item |
Specification |
|
X-Ray Generator Voltage |
Primary 160kV; Side 160kV |
|
Energy Type |
Dual-energy, 4-color imaging |
|
Penetration |
Primary & side: 42mm steel plate |
|
Wire Resolution |
Primary & side: AWG 40 (φ0.0787mm) |
|
Material Separation |
Low Z, Medium Z, High Z (up to 0.5 Z accuracy) |
|
Spatial Resolution |
Primary & side: Horizontal 1.0mm; Vertical 1.0mm |
|
Single Inspection Dose |
<5μGy/h |
|
X-Ray Leakage |
<0.5μGy/h at any point 5cm outside surface |
|
Orientation |
Top and side irradiation |
|
Generator Cooling |
Sealed oil cooling / 100% duty cycle |
|
Tube Current |
0.5–1.25mA |
|
Film Safety |
Safe for ASA/ISO1600 film |
System & Monitors
|
Item |
Specification |
|
Operating System |
Embedded Windows 10 |
|
Monitors |
Two 21.5" LCD monitors, 1920×1080 resolution |
|
Storage |
1TB |
|
Keyboard |
Special design with shortcut buttons |
|
Electric Roller |
Single-phase |
Imaging & Processing
|
Item |
Specification |
|
X-Ray Sensor |
L-shaped photodiode array, 12-bit depth |
|
Image Processing |
24-bit real-time processing, 4-color analysis |
|
Image Display Resolution |
1920×1080 high-resolution display |
|
Image Zoom |
1–64× image zoom |
|
Display Modes |
Color / B&W / Partial Increasing |
|
Enhancement Functions |
High Penetration / Low Penetration / Over-Increasing / Organic Removal |
|
Image Information |
Date, ID number, bag counting |
|
Explosives & Narcotics Detection |
Suspicious organics highlight (Zeff=7,8,9) |
|
Suspicious Alarm |
Alarm and box line for hard-to-penetrate items, explosives and drugs |
|
Threat Image Projection (TIP) |
Inserts fictional threat images during screening for training and vigilance |
|
Image Recall |
Hundreds of stored images |
Software & Miscellaneous Functions
|
Item |
Specification |
|
System Functions |
Time/date display, counters, user management |
|
Timers |
System-on / X-ray-on timers |
|
Diagnostics |
Power-on self-test, built-in diagnostic facilities |
|
System Log |
Event and alarm logging |
|
Standby Mode |
System standby |
|
Training |
Built-in stimulant training via TIP |
Operating Environment
|
Item |
Specification |
|
Operating Temperature |
5°C to 40°C |
|
Storage Temperature |
-20°C to 40°C |
|
Operating Humidity |
0% to 90% RH (non-condensing) |
|
Storage Humidity |
0% to 90% RH (non-condensing) |
Options & Accessories
|
Item |
Specification |
|
AI Feature |
41 classes in 15 major types |
|
Camera Solution |
Real-time video recording for item–person association and lost item retrieval |
|
UPS |
1.5KVA, approx. 15–20 minutes backup |
|
OEM Branding |
Applied on metal frame; integrated in interface |
Packaging & Regulatory Compliance
|
Item |
Specification |
|
Packing List |
Console table ×1; English manual ×1; Cable ×1; Tools set ×1 |
|
Packaging Method |
Wooden pallet |
|
Packaging Dimensions (L × W × H) |
2920mm × 1640mm × 1800mm |
|
Net Weight (N.W.) |
650kg |
|
Gross Weight (G.W.) |
750kg |
|
China Standard |
GB 12664-2024 |
|
International Certifications |
CE, ROHS, FCC |
