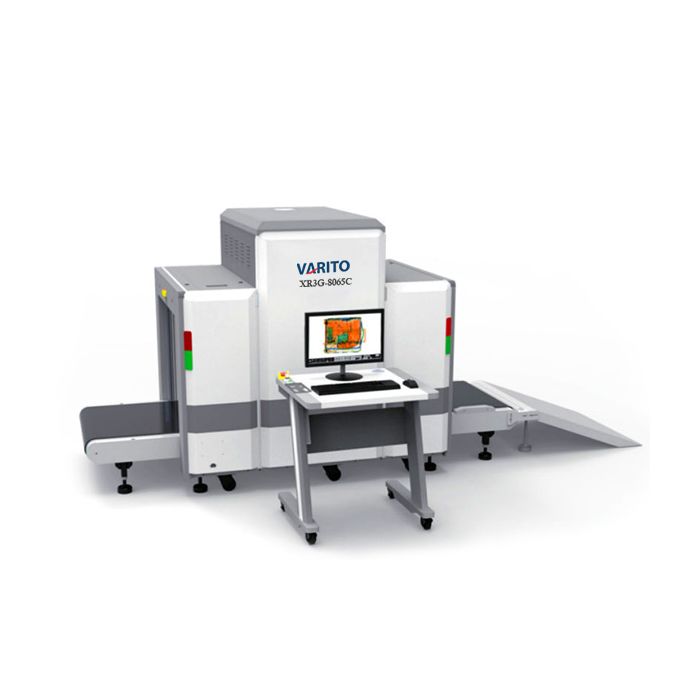

VARITO XR3G-8065C X-Ray Baggage Scanner 160kV
VARITO XR3G-8065C Baggage Scanner
Model: XR3G-8065C
Tunnel Size (W × H): 800mm × 650mm
Dimensions (L × W × H): 2540mm × 1160mm × 1420mm
Console Table Size (L × W × H): 700mm × 600mm × 750mm
Equipment Net Weight: 530kg
Conveyor Load Capacity: 200kg
Conveyor Speed: 0.22 m/s
Conveyor Belt Height: 310mm
Scanning Direction: Dual-direction
Noise Level: <55 dB
Power Consumption: 800W
VARITO XR3G-8065C Baggage Scanner
VARITO XR3G-8065C is a high-performance 160kV dual-energy X-ray baggage scanner designed for medium to large luggage. With an 8065mm tunnel, 40mm steel penetration, 310mm low conveyor height and dual-direction scanning, it delivers fast, accurate threat detection for hotels, stations, airports and other high-traffic security checkpoints.
Key Features
-
Large 800mm × 650mm tunnel for medium and large baggage
-
160kV dual-energy X-ray source for clear, detailed imaging
-
40mm steel penetration for dense material inspection
-
310mm conveyor height for ergonomic, easy luggage loading
-
Dual-direction scanning to improve throughput and inspection flexibility
-
Central alarm indicator for clear visual status and operator alerts
-
Material separation of low Z, medium Z, high Z with up to 0.5 Z accuracy
-
High resolution imaging with AWG 38 (φ0.102mm) wire resolution
-
21.5" Full HD (1920×1080) LCD monitor with 1–64x digital zoom
-
Advanced image processing: color/B&W, high/low penetration, organic removal
-
Integrated explosives & narcotics detection with suspicious organics highlight
-
Threat Image Projection (TIP) for operator training and vigilance
-
Built-in user management, counters, timers, diagnostics and system logs
-
Durable, heavy-duty structure with up to 200kg conveyor load
-
Complies with GB 12664-2024, CE, ROHS, FCC standards
-
Optional AI recognition (41 classes), camera system and UPS backup
Technical Specifications
|
Item |
Specification |
|
Model |
VARITO XR3G-8065C Baggage Scanner |
|
Application |
Medium to large baggage X-ray inspection |
|
Tunnel Size (W × H) |
800mm × 650mm |
|
Dimensions (L × W × H) |
2540mm × 1160mm × 1420mm |
|
Console Table Size (L × W × H) |
700mm × 600mm × 750mm |
|
Equipment Net Weight |
530kg |
|
Conveyor Load Capacity |
200kg |
|
Conveyor Speed |
0.22 m/s (adjustable) |
|
Conveyor Belt Height |
310mm (from ground) |
|
Scanning Direction |
Dual-direction |
|
Noise Level |
<55 dB |
|
Power Consumption |
800W |
|
Power Supply |
AC 220V, 50Hz |
X-Ray Generator & Safety
|
Item |
Specification |
|
X-Ray Generator Voltage |
160kV |
|
Energy Type |
Dual-energy, 4-color imaging |
|
Penetration |
40mm steel plate |
|
Wire Resolution |
AWG 38 (φ0.102mm) |
|
Material Separation |
Low Z, Medium Z, High Z (up to 0.5 Z accuracy) |
|
Spatial Resolution |
Horizontal: 1.0mm; Vertical: 1.0mm |
|
Single Inspection Dose |
<5μGy/h |
|
X-Ray Leakage |
<0.5μGy/h at any point 5cm outside surface |
|
Orientation |
Top irradiation |
|
Generator Cooling |
Sealed oil cooling / 100% duty cycle |
|
Tube Current |
0.5–1.25mA |
|
Film Safety |
Safe for ASA/ISO1600 film |
System & Monitor
|
Item |
Specification |
|
Operating System |
Embedded Windows 10 |
|
Monitor |
21.5" LCD, 1920×1080 resolution |
|
Storage |
1TB |
|
Keyboard |
Special design with shortcut keys |
|
Electric Roller |
Single-phase |
Imaging & Processing
|
Item |
Specification |
|
X-Ray Sensor |
L-shaped photodiode array, 12-bit depth |
|
Image Processing |
24-bit real-time processing, 4-color analysis |
|
Image Display |
1920×1080 high-resolution display |
|
Image Zoom |
1–64× zoom |
|
Display Modes |
Color / B&W / Partial Enhancement |
|
Enhancement Functions |
High Penetration / Low Penetration / Over-Enhancement / Organic Removal |
|
Image Info |
Date, ID number, bag counting |
|
Explosives & Narcotics Detection |
Suspicious organics highlight (Zeff=7,8,9) |
|
Suspicious Alarm |
Alarm and box line for hard-to-penetrate items, explosives, drugs |
|
Threat Image Projection (TIP) |
Inserts fictional threat images for training and assessment |
|
Image Recall |
Hundreds of stored images |
Software & Miscellaneous Functions
|
Item |
Specification |
|
System Functions |
Time/date display, counters, user management |
|
Timers |
System-on / X-ray-on timers |
|
Diagnostics |
Power-on self test, built-in diagnostics |
|
System Log |
Event and alarm logging |
|
Standby Mode |
System standby function |
|
Training |
Built-in stimulant training via TIP |
Operating Environment
|
Item |
Specification |
|
Operating Temperature |
5°C to 40°C |
|
Storage Temperature |
-20°C to 40°C |
|
Operating Humidity |
0% to 90% RH (non-condensing) |
|
Storage Humidity |
0% to 90% RH (non-condensing) |
Options & Accessories
|
Item |
Specification |
|
AI Feature |
41 classes in 15 major types |
|
Camera Solution |
Real-time video recording for item–person association and lost item retrieval |
|
UPS |
1.5KVA, approx. 15–20 minutes backup |
|
OEM Branding |
Applied on metal frame; integrated in UI |
Packaging & Regulatory Compliance
|
Item |
Specification |
|
Packing List |
English manual ×1; Cable ×1; Tools set ×1; Console table ×1 |
|
Packaging Method |
Wooden pallet |
|
Packaging Dimensions (L × W × H) |
2070mm × 1260mm × 1730mm |
|
Net Weight (N.W.) |
530kg |
|
Gross Weight (G.W.) |
580kg |
|
China Standard |
GB 12664-2024 |
|
International Certifications |
CE, ROHS, FCC |
| Call for Price | No |
|---|---|
| Brand | Varito |
