VARITO XR3G-6550A Baggage Scanner
VARITO XR3G-6550A Baggage Scanner
Model: XR3G-6550A
Dimensions (L×W×H): 2890 × 916 × 1411 mm
Tunnel Size (W×H): 650 mm × 500 mm
Equipment Weight: 380 kg
Conveyor Speed: 0.22 m/s
Conveyor Load Capacity: 100 kg
Conveyor Belt Height: 660 mm
X-Ray Generator Voltage: 140 kV
Energy Type: Dual-energy, 4-color imaging
Penetration Capability: 38 mm steel plate
Wire Resolution: AWG 38 (Ø 0.102 mm)

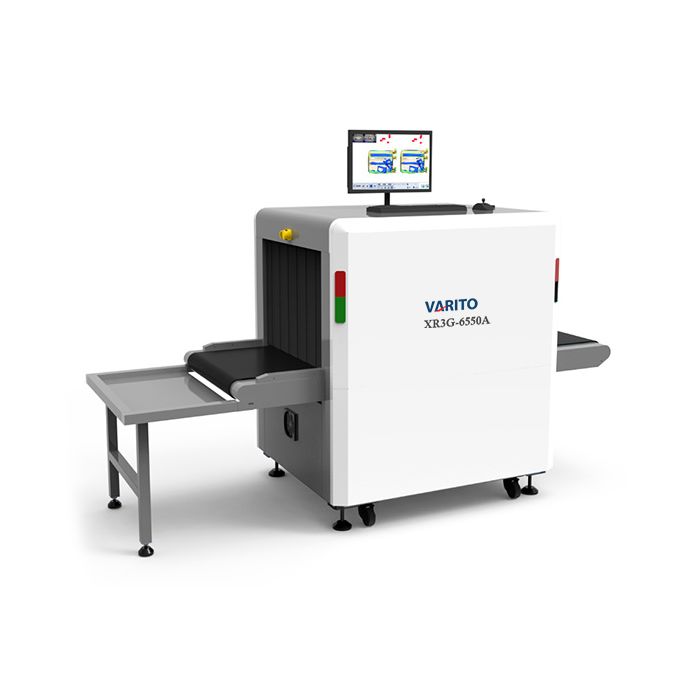

VARITO XR3G-6550A Baggage Scanner
The VARITO XR3G-6550A Baggage Scanner is a high-performance dual-energy X ray baggage scanner designed for busy security checkpoints and high-traffic inspection areas. With a powerful 140kV source, 40mm steel penetration, 650×500mm tunnel and dual-direction scanning, it delivers clear, detailed imaging for reliable detection of weapons, explosives and contraband. An elegant dark-gray design, multilingual LED message panels, sunken outlet table and advanced safety features make the XR3G-6550A ideal for airports, stations, offices and critical infrastructure security.
Germany Computer is the only authorized distributor of VARITO Brand X Ray Baggage Scanner in Bangladesh, supplying 100% genuine security screening machines with full warranty and technical support. The VARITO XR3G-6550A Baggage Scanner price in Bangladesh starts from ৳7,50,000 up to ৳50,00,000, depending on model, tunnel size and project requirements.
Key Features
-
140kV dual-energy X-ray source for 40mm steel penetration and high-clarity, multi-color imaging.
-
Large 650×500mm tunnel to handle medium and large baggage, parcels and cartons efficiently.
-
Elegant dark-gray finish with modern industrial design to match premium security environments.
-
Front & rear LED panels support multilingual, customizable messages for passengers and operators.
-
Dual matching extension tables and sunken outlet design for smooth baggage transfer and handling.
-
Bidirectional scanning enhances throughput and inspection flexibility in high-traffic lanes.
-
Double-layer radiation curtains ensure superior radiation shielding, safety and durability.
-
Emergency stop buttons on all corners allow rapid response in any emergency situation.
-
Embedded Windows 10 system with 21.5" Full HD monitor and 1TB storage for images and logs.
-
Advanced image processing with 1–64x zoom, color/B&W, high/low penetration and organic removal.
-
Explosives and narcotics detection with suspicious organics highlighting and automatic alarms.
-
Threat Image Projection (TIP) for continuous operator training and assessment of image recognition skills.
Technical Specification
|
Item |
Specification |
|
Model |
XR3G-6550A |
|
Overall Dimensions (L×W×H) |
2890 mm × 916 mm × 1411 mm |
|
Tunnel Size (W×H) |
650 mm × 500 mm |
|
Console Table Size |
700 mm (L) × 600 mm (W) × 750 mm (H) |
|
Equipment Weight |
380 kg |
|
Conveyor Speed |
0.22 m/s (adjustable) |
|
Conveyor Load Capacity |
100 kg (maximum) |
|
Conveyor Belt Height |
660 mm from ground |
|
Design Features |
Elegant dark-gray finish, dual extension tables, sunken outlet design |
|
LED Panels |
Front and rear LED panels with multilingual customizable messages |
|
Noise Level |
< 55 dB |
|
Safety Hardware |
Emergency stop buttons on all corners, double-layer radiation curtains |
X-Ray Generator & Radiation
|
Item |
Specification |
|
X-Ray Generator Voltage |
140 kV |
|
Energy Type |
Dual-energy, 4-color imaging |
|
Penetration Capability |
40 mm steel plate |
|
Wire Resolution |
AWG 38 (Ø 0.102 mm) |
|
Material Separation |
Low Z, Medium Z, High Z with 0.5 Z accuracy |
|
Spatial Resolution |
Horizontal: 1.0 mm; Vertical: 1.0 mm |
|
Single Inspection Dose |
< 5 μGy/h |
|
X-ray Leakage |
< 0.5 μGy/h at any point 5 cm outside external surface |
|
X-ray Orientation |
Bottom irradiation |
|
Generator Cooling |
Sealed oil cooling, 100% duty cycle |
|
Tube Current |
0.5–1.25 mA |
|
Power Consumption |
Approx. 800 W |
|
Film Safety |
Safe for ASA/ISO1600 film |
|
Power Supply |
AC 220 V, 50 Hz |
System & Monitor
|
Item |
Specification |
|
Operating System |
Embedded Windows 10 operating system |
|
Monitor |
One 21.5" LCD monitor, 1920 × 1080 resolution |
|
Internal Memory / Storage |
1 TB |
|
Keyboard |
Specially designed keyboard with shortcut buttons |
|
Electric Roller |
Single-phase motor-driven conveyor |
Imaging & Software Features
|
Item |
Specification |
|
X-ray Sensor |
L-shaped photodiode array, 12-bit depth |
|
Image Processing |
24-bit real-time processing, 4-color analysis |
|
Image Display Resolution |
1920 × 1080 pixels (Full HD) |
|
Image Information Overlay |
Date and ID number display, bag counting |
|
Zoom & Enhancement |
1–64x zoom, Color / Black & White, Partial increasing, High Penetration, Low Penetration, Over-increasing, Organic removal |
|
Explosives & Narcotics Detection |
Suspicious organics highlighting (atomic number Zeff = 7, 8, 9) |
|
Suspicious Alarm |
Audible/visual alarm with box outline around suspicious objects including hard-to-penetrate materials, explosives and drugs |
|
Threat Image Projection (TIP) |
Inserts fictional but realistic threat images during screening for vigilance and training |
|
Image Recall |
Hundreds of images recallable from storage |
|
Miscellaneous Functions |
Time/date display, bag counters, user management, system-on/X-ray-on timers, power-on self-test, built-in diagnostics, system log, standby mode, stimulant training |
|
Scanning Direction |
Dual-direction scanning |
Operating Environment
|
Item |
Specification |
|
Operating Temperature |
5°C to 40°C |
|
Storage Temperature |
–20°C to 40°C |
|
Operating Humidity |
0% to 90% RH (non-condensing) |
|
Storage Humidity |
0% to 90% RH (non-condensing) |
| Call for Price | No |
|---|---|
| Brand | Varito |
