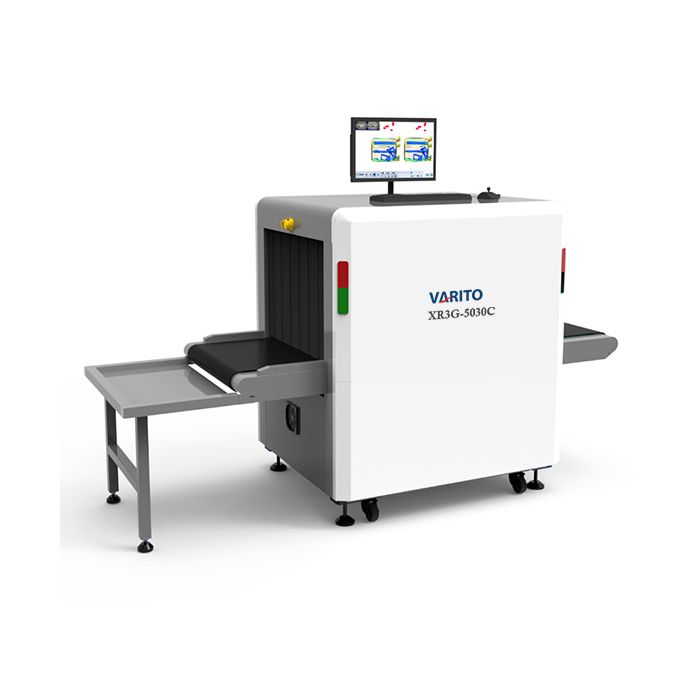

VARITO XR3G-5030C Baggage Scanner
VARITO XR3G-5030C Baggage Scanner
Model: VXR3G-5030C
Dimensions (L×W×H): 2762 mm × 766 mm × 1211 mm
Tunnel Size (W×H): 500 mm × 300 mm
Equipment Weight: 245 kg
Conveyor Speed: 0.22 m/s
Conveyor Load Capacity: 100 kg
Conveyor Belt Height: 660 mm
X-Ray Generator Voltage: 140 kV
Energy Type: Dual-energy, 4-color imaging
Penetration Capability: 38 mm steel plate
Wire Resolution: AWG 38 (Ø 0.102 mm)
VARITO XR3G-5030C Baggage Scanner in Bangladesh
The VARITO XR3G-5030C Baggage Scanner is a high-performance dual-energy X-ray baggage scanner engineered for high-demand security checkpoints, offices and public facilities. Equipped with a powerful 140kV generator, dual-direction scanning and a 500×300mm tunnel, it delivers sharper, more detailed images for accurate threat detection. With enhanced safety features, elegant dark-grey design, intuitive one-touch operation and advanced image processing, the XR3G-5030C ensures fast, reliable and secure screening of bags and parcels in busy inspection environments.
Germany Computer is the only authorized distributor of VARITO Brand baggage scanners in Bangladesh, offering genuine products with full warranty and after-sales support. The VARITO XR3G-5030C Baggage Scanner price in Bangladesh starts from ৳7,00,000 up to ৳50,00,000, depending on configuration and project requirements.
Key Features
-
140kV dual-energy generator – High X-ray power with dual-energy, 4-color imaging provides clearer, sharper and more detailed images for accurate inspection.
-
Compact yet robust design – 500×300mm tunnel and elegant dark-grey housing suit checkpoints, offices and public buildings with limited space.
-
Premium operator experience – Front and rear LED indicators, ergonomically positioned conveyor and sunken outlet table enhance user and passenger experience.
-
Bidirectional scanning – Dual-direction scanning improves throughput and inspection flexibility for heavy traffic security lanes.
-
Strong penetration & resolution – Penetrates up to 38 mm steel plate with wire resolution of AWG 38 (0.102 mm) and 1.0 mm spatial resolution (horizontal & vertical).
-
Reliable radiation safety – Double-layer radiation curtain, single inspection dose <5 μGy/h and leakage <0.5 μGy/h at 5 cm from surface to protect operators and the public.
-
Advanced material separation – Differentiates low, medium and high-Z materials with 0.5 Z accuracy to highlight suspicious organic/inorganic objects.
-
Powerful imaging tools – 24-bit real-time processing, 4-color analysis, 1–64x zoom, color/B&W modes, partial enhancement and high/low penetration visualization.
-
Threat & narcotics detection – Suspicious organics highlighting (Zeff = 7, 8, 9), audible/visual alarms and box outlines around potential explosives and narcotics.
-
TIP training system – Threat Image Projection inserts fictional but realistic threat items into bags for continuous operator training and vigilance.
-
User-friendly system – One-touch start/stop, dedicated shortcut keyboard, time/date display, counters, user management and full system logs.
-
Stable and quiet operation – Sealed oil cooling generator, 800 W power consumption and noise level <55 dB, suitable for indoor environments.
Technical Specification
|
Item |
Specification |
|
Model |
VARITO XR3G-5030C Baggage Scanner |
|
Overall Dimensions (L×W×H) |
2762 mm × 766 mm × 1211 mm |
|
Tunnel Size (W×H) |
500 mm × 300 mm |
|
Console Table |
N/A |
|
Equipment Weight |
245 kg |
|
Conveyor Speed |
0.22 m/s (adjustable) |
|
Conveyor Load Capacity |
100 kg (maximum) |
|
Conveyor Belt Height |
660 mm from ground |
|
Design Features |
Elegant dark-grey design, front & rear LED indicators, sunken outlet table |
|
Noise Level |
< 55 dB |
X-Ray Generator & Radiation
|
Item |
Specification |
|
X-Ray Generator Voltage |
140 kV |
|
Energy Type |
Dual-energy, 4-color imaging |
|
Penetration Capability |
38 mm steel plate |
|
Wire Resolution |
AWG 38 (Ø 0.102 mm) |
|
Material Separation |
Low Z, Medium Z, High Z with 0.5 Z accuracy |
|
Spatial Resolution |
Horizontal: 1.0 mm; Vertical: 1.0 mm |
|
Single Inspection Dose |
< 5 μGy/h |
|
X-ray Leakage |
< 0.5 μGy/h at any point 5 cm outside external surface |
|
X-ray Orientation |
Top irradiation |
|
Generator Cooling |
Sealed oil cooling, 100% duty cycle |
|
Tube Current |
0.5–1.25 mA |
|
Power Consumption |
Approx. 800 W |
|
Film Safety |
Safe for ASA/ISO1600 film |
|
Power Supply |
AC 220 V, 50 Hz |
|
Safety Features |
Double-layer radiation curtain, emergency stop buttons on all corners |
System & Monitor
|
Operating System |
Embedded Windows 10 operating system |
|
Monitor |
One 21.5" LCD monitor, 1920 × 1080 resolution |
|
Internal Memory / Storage |
1 TB |
|
Keyboard |
Specially designed keyboard with shortcut buttons |
|
Electric Roller |
Single-phase motor-driven conveyor |
Imaging & Software Features
|
X-ray Sensor |
L-shaped photodiode array, 12-bit depth |
|
Image Processing |
24-bit real-time processing, 4-color analysis |
|
Image Display Resolution |
1920 × 1080 pixels (Full HD) |
|
Image Enhancement Modes |
1–64x zoom, Color / Black & White, Partial increasing, High/Low penetration enhancement |
|
Explosives & Narcotics Detection |
Suspicious organics highlighting (atomic number Zeff = 7, 8, 9) |
|
Suspicious Alarm |
Audible/visual alarm and boxed outline highlighting suspicious objects |
|
Threat Image Projection (TIP) |
Inserts fictional but realistic threat images during operation for training and vigilance |
|
Image Recall |
Hundreds of stored images recallable from history |
|
Miscellaneous Functions |
Time/date display, bag counters, user management, system-on & X-ray-on timers, power-on self-test, built-in diagnostics, system log, standby mode, stimulant training |
|
Scanning Direction |
Dual-direction scanning |
Operating Environment
|
Operating Temperature |
5°C to 40°C |
|
Storage Temperature |
–20°C to 40°C |
|
Operating Humidity |
0% to 90% RH (non-condensing) |
|
Storage Humidity |
0% to 90% RH (non-condensing) |
| Call for Price | No |
|---|---|
| Brand | Varito |
