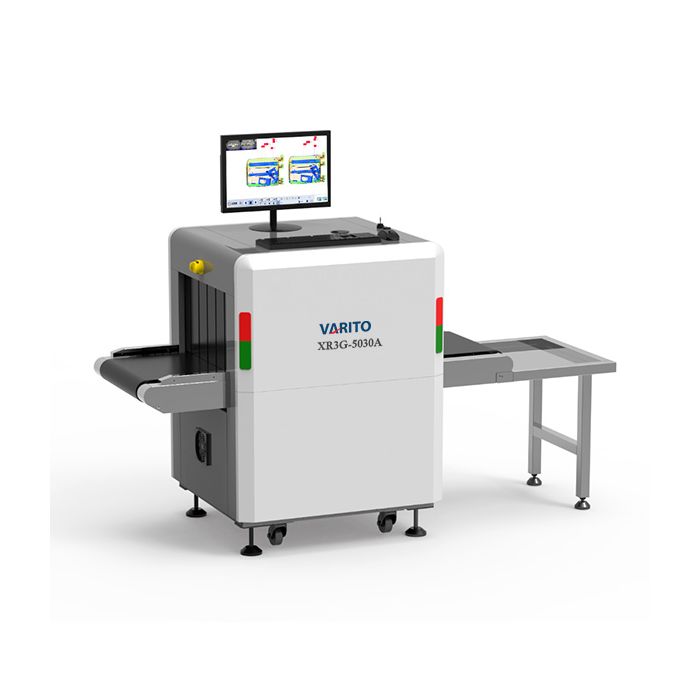

VARITO XR3G-5030A Baggage Scanner
VARITO XR3G-5030A Baggage Scanner
Dimensions (L×W×H): 2762 × 766 × 1211 mm
Tunnel Size (W×H): 500 × 300 mm
Equipment Weight: 245 kg
Conveyor Speed: 0.22 m/s (adjustable)
Conveyor Load Capacity: 100 kg (max)
Conveyor Belt Height: 660 mm
Noise Level: < 55 dB
X-Ray Generator Voltage: 80 kV
Energy Type: Single-energy X-ray
Penetration Capability: 12 mm steel plate
Wire Resolution: AWG 38 (Ø 0.102 mm)
VARITO XR3G-5030A Baggage Scanner
VARITO XR3G-5030A Baggage Scanner is a compact, high-performance x-ray baggage scanner designed for checkpoints, offices and public facilities with high daily screening demands. With a 500×300mm tunnel, 80kV single-energy X-ray generator, dual-direction scanning, advanced material separation and AI-assisted threat detection, it delivers fast, accurate and secure screening for luggage, parcels and personal belongings while meeting international safety standards such as CE, ROHS and FCC.
Germany Computer is the only authorized distributor of VARITO brand baggage scanners in Bangladesh, offering genuine products with full warranty and after-sales support. The VARITO XR3G-5030A Baggage Scanner price in Bangladesh starts from ৳7,00,000 up to ৳50,00,000, depending on configuration and project requirements.
Key Features
-
High-performance compact design – Space-saving footprint with 500×300mm tunnel, ideal for tight checkpoints, offices and public buildings.
-
Elegant, operator-friendly appearance – Dark-grey premium design with front and rear LED indicators to enhance user experience.
-
Extended dual tables & sunken outlet – Infeed/outfeed tables and sunken outlet table design provide smooth baggage handling and fast throughput.
-
Bidirectional scanning – Dual-direction scanning improves inspection flexibility and increases passenger flow in busy security lanes.
-
Safe X-ray operation – Double-layer radiation curtain, low single inspection dose (<5 μGy/h) and leakage <0.5 μGy/h ensure safe use for operators and the public.
-
Powerful X-ray performance – 80kV generator with 12mm steel penetration and AWG 38 (0.102mm) wire resolution for clear image quality.
-
Advanced material separation – Differentiates low, medium and high-Z materials with 0.5 Z accuracy to highlight suspicious organic and inorganic objects.
-
AI threat detection (optional) – Up to 41 classes in 15 major threat types for automated detection of explosives, narcotics and other prohibited items.
-
Rich imaging tools – 24-bit image processing, 4-color analysis, zoom up to 64x, high/low penetration, organic removal and suspicious object highlighting.
-
User-centric operation – One-touch start/stop, emergency stop buttons on all corners, shortcut keyboard, time/date display and user management for efficient operation.
-
Robust monitoring & storage – 21.5" Full HD monitor, TIP (Threat Image Projection) training, image recall (hundreds), and 1TB memory for image and log storage.
-
Reliable and compliant – Low-noise operation (<55 dB), film safety up to ASA/ISO1600, and compliance with GB 12664-2024, CE, ROHS, and FCC.
Technical Specification
|
Category |
Specification |
|
Model |
XR3G-5030A |
|
Application |
Baggage and parcel X-ray inspection for checkpoints, offices and public facilities |
Physical Specifications
|
Overall Dimensions (L×W×H) |
2762 × 766 × 1211 mm |
|
Tunnel Size (W×H) |
500 × 300 mm |
|
Equipment Weight |
245 kg |
|
Conveyor Speed |
0.22 m/s (adjustable) |
|
Conveyor Load Capacity |
100 kg (max) |
|
Conveyor Belt Height |
660 mm from ground |
|
Noise Level |
< 55 dB |
|
Design Features |
Elegant dark-grey chassis, extended dual tables, sunken outlet table, double-layer radiation curtain, front & rear LED indicators |
|
Emergency Protection |
Emergency stop buttons on all corners |
X-Ray Generator & Radiation
|
X-Ray Generator Voltage |
80 kV |
|
Energy Type |
Single-energy X-ray |
|
Penetration Capability |
12 mm steel plate |
|
Wire Resolution |
AWG 38 (Ø 0.102 mm) |
|
Material Separation |
Low-Z, Medium-Z, High-Z with 0.5 Z accuracy |
|
Spatial Resolution |
Horizontal: 1.0 mm; Vertical: 1.0 mm |
|
Single Inspection Dose |
< 5 μGy/h |
|
X-ray Leakage |
< 0.5 μGy/h at any point 5 cm outside external surface |
|
X-ray Orientation |
Top irradiation |
|
Generator Cooling |
Sealed oil cooling, 100% duty cycle |
|
Tube Current |
0.5–1.25 mA |
|
Power Consumption |
Approx. 500 W |
|
Film Safety |
Safe for ASA/ISO1600 film |
Power & System
|
Power Supply |
AC 220 V, 50 Hz |
|
Operating System |
Embedded Windows 10 operating system |
|
Monitor |
One 21.5" LCD monitor, 1920 × 1080 resolution |
|
Memory / Storage |
1 TB |
|
Keyboard |
Specially designed keyboard with shortcut buttons |
|
Electric Roller |
Single-phase motor-driven conveyor |
Imaging & Software Features
|
X-ray Sensor |
L-shaped photodiode array, 12-bit depth |
|
Image Processing |
24-bit real-time processing, 4-color analysis |
|
Image Display |
High-resolution 1920 × 1080 pixel output |
|
Zoom |
1–64x image zoom |
|
Image Modes |
Color / Black & White / Partial Increasing / High Penetration / Low Penetration / Over-Increasing / Organic Removal |
|
Explosives & Narcotics Detection |
Suspicious organics highlight (Zeff = 7, 8, 9) |
|
Suspicious Alarm |
Audible/visual alarm and box outline for suspicious objects including hard-to-penetrate materials, explosives and drugs |
|
Threat Image Projection (TIP) |
Inserts fictional but realistic threat images for operator training and vigilance |
|
Image Recall |
Hundreds of images can be recalled from history |
|
Counters & Logs |
Bag counting, system log, system-on & X-ray-on timers |
|
Miscellaneous Functions |
Time/date display, user management, self-test, built-in diagnostics, standby mode, stimulant training |
Operating Environment
|
Operating Temperature |
5°C to 40°C |
|
Storage Temperature |
-20°C to 40°C |
|
Operating Humidity |
0% to 90% RH (non-condensing) |
|
Storage Humidity |
0% to 90% RH (non-condensing) |
|
Scanning Direction |
Dual-direction scanning |
Options & Accessories
|
AI Feature |
Up to 41 classes in 15 major threat types |
|
Camera Solution |
Real-time video recording for item-person association and lost item retrieval |
|
UPS |
1.5 kVA, backup approx. 15–20 minutes |
|
OEM Branding |
Logo/branding applied on metal frame and integrated in software interface |
Packaging Information
|
Packaging Method |
Wooden pallet |
|
Packing List |
English manual book ×1, cable ×1, tools ×1 set |
|
Packaging Dimensions |
1700 mm (L) × 870 mm (W) × 1460 mm (H) |
|
Net Weight (N.W.) |
290 kg |
|
Gross Weight (G.W.) |
340 kg |
Regulatory Compliance
|
Item |
Standard / Certification |
|
China Standard |
GB 12664-2024 |
|
International |
CE, ROHS, FCC |
| Call for Price | No |
|---|---|
| Brand | Varito |
