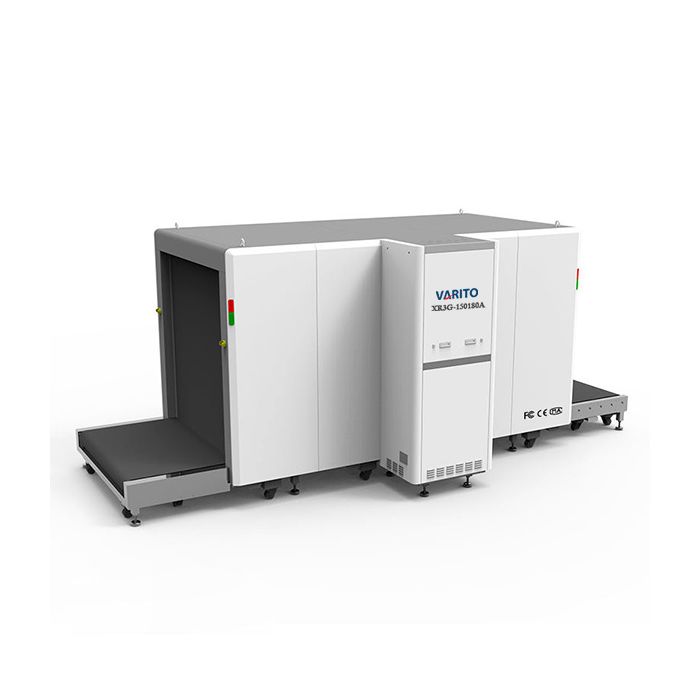

VARITO XR3G-150180A X Ray Baggage Scanner
VARITO XR3G-150180A X Ray Baggage Scanner
Model: XR3G-150180A
Tunnel Size (W × H): 1500 mm × 1800 mm
Conveyor Speed: 0.5 m/s (approx.)
Conveyor Height: 350 mm from floor level
Max. Conveyor Load: 2400 kg
Unit Dimensions (L × W × H): 2127 mm × 2230 mm × 2338 mm
X-ray Source: 160-200 kV, 0.5-1.25 mA
Steel Penetration: Up to ~43 mm steel plate
Max Conveyor Load: 2000 kg
VARITO XR3G-150180A X Ray Baggage Scanner
VARITO XR3G-150180A X Ray Baggage Scanner is a big-size cargo and luggage scanner with a 1500 × 1800 mm tunnel, designed for airports, seaports, customs, bonded warehouses and large logistics hubs. It offers up to 43 mm steel penetration, 2000 kg conveyor load and high-speed 0.5 m/s belt for rapid inspection of pallets, trolleys and oversized freight. Multi-energy imaging, advanced image enhancement and very low X-ray leakage help operators quickly detect weapons, explosives, narcotics and other contraband while meeting international safety standards.
Germany Computer is the only authorized distributor of VARITO Brand X Ray Baggage Scanner in Bangladesh, supplying 100% genuine security screening machines with full warranty and technical support. The VARITO XR3G-6550C Baggage Scanner price in Bangladesh starts from ৳7,50,000 up to ৳50,00,000, depending on model, tunnel size and project requirements.
Key Features
-
Extra-large 1500 × 1800 mm tunnel ideal for pallets, large cartons and bulk cargo at airports and ports
-
High penetration up to approx. 43 mm steel, allowing reliable inspection of dense and complex shipments
-
Robust conveyor system with 0.5 m/s speed and 2000 kg maximum load for high-throughput screening lines
-
Multi-energy X-ray imaging with 4096 grey levels and high-resolution 1024 × 1280 pixel display for clear, detailed images
-
Powerful image tools: multi-level zoom, color/black-white, negative, high/low penetration, organic/inorganic stripping, pseudo color and enhancement
-
Built-in explosives & narcotics detection, high-density region alarm and threat image projection (TIP) to support operator training and vigilance
-
Multilingual interface, automatic self-diagnosis, baggage counter, time/date display and user management for easy operation and audit trail
-
Network-ready design for centralized image storage, remote re-check and network TIP over Ethernet (optional)
-
Energy-saving design with one-key shutdown and optional UPS (15–60 minutes) to maintain operation during power interruptions
-
Very low X-ray leakage and film safety up to ISO1600, compliant with international radiation safety regulations
Technical Specification
|
Parameter |
Specification |
|
X-ray Source |
160-200 kV, 0.5-1.25 mA |
|
Application |
Large luggage, pallet and cargo X-ray inspection for airport, seaport, customs, warehouse and logistics centers |
|
Tunnel Size (W × H) |
1500 mm × 1800 mm |
|
Conveyor Speed |
0.5 m/s (approx.) |
|
Conveyor Height |
350 mm from floor level |
|
Max. Conveyor Load |
2000 kg (evenly distributed) |
|
Unit Dimensions (L × W × H) |
2127 mm × 2230 mm × 2338 mm |
|
Net Weight |
1150 kg (approx.) |
|
Gross Weight (packed) |
1350 kg |
|
Steel Penetration |
Up to ~43 mm steel plate |
|
Wire Resolution |
≈ 0.0787 mm copper wire (AWG40) |
|
Penetration Resolution |
≈ 0.16 mm copper wire (AWG34) under stepped aluminium wedge |
|
Spatial Resolution |
Horizontal ≈ 1.0 mm; Vertical ≈ 1.0 mm |
|
X-ray Dose per Inspection |
Approx. 1.5 μGy per scan |
|
X-ray Leakage |
< 0.25 μGy/h at specified distance from cabinet surface (within common international limits) |
|
Film Safety |
Safe for film up to ASA/ISO1600 |
|
Max. Power Consumption |
About 2 kW |
|
Noise Level |
< 58 dB near system |
|
X-ray Generator |
Single generator, anode voltage 160–200 kV; current 0.4–1.2 mA (adjustable); downward beam direction; oil-cooled, continuous duty; Spellman-type tube |
|
X-ray Sensor |
L-shaped multi-energy photodiode array, 12-bit data depth |
|
Image Resolution |
1024 × 1280 pixels (approx.), 24-bit color; 4096 grey levels |
|
Image Functions |
1–64× zoom, color/BW, negative, high/low penetration, organic/inorganic separation, general enhancement, pseudo color, etc. |
|
Image Recall & Archive |
All previous images recallable; automatic archive up to ~100,000 images; export via USB in JPG/BMP and common formats |
|
Explosives & Narcotics Detection |
Automatic alarm and highlight based on effective atomic number signatures |
|
High-Density Region Alarm |
Alarm and highlight for impenetrable or suspicious dense regions |
|
Threat Image Projection (TIP) |
Insertion of simulated threat images during operation for training and performance monitoring |
|
System Functions |
Time/date display, baggage counter, user management, timers, power-on self-test, built-in diagnostics, dual-direction scanning, logs, standby mode and training functions |
|
Network Applications |
Optional Ethernet-based centralized storage, remote re-check and network TIP workstation |
|
Operating Temperature / Humidity |
0–45 °C; 5–95% RH (non-condensing) |
|
Storage Temperature / Humidity |
−40–70 °C; 5–95% RH (non-condensing) |
|
Input Power |
220 VAC (±10%), 50 ±3 Hz (other voltages optional) |
|
UPS Option |
15 / 30 / 60 minutes backup (optional) |
|
Compliance (Platform) |
Designed to comply with ISO 9001/14001/OHSMS, CE, FDA and national radiation safety certifications |
| Call for Price | No |
|---|---|
| Brand | Varito |
