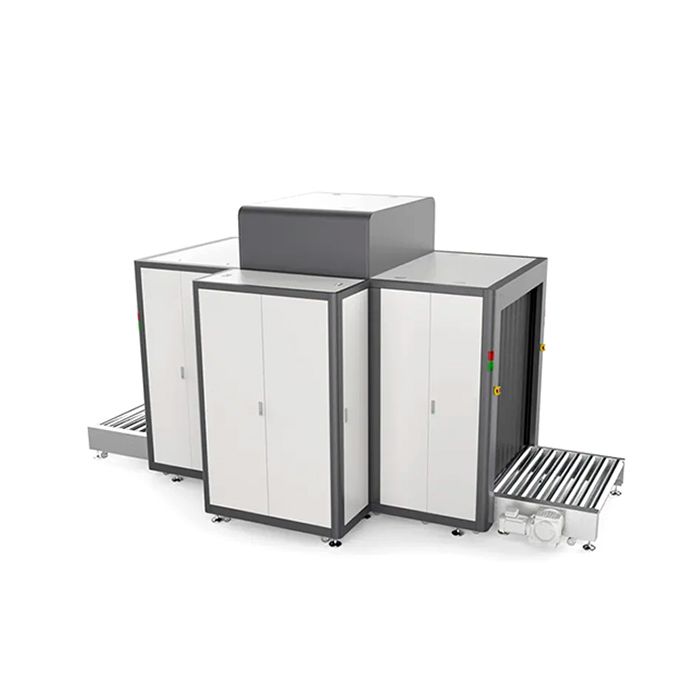

VARITO XR3G-150150D X Ray Baggage Scanner

VARITO XR3G-150150D X Ray Baggage Scanner

VARITO XR3G-150150D X Ray Baggage Scanner is a dual-view, heavy-duty cargo and luggage scanner with a large 1500 × 1500 mm tunnel, ideal for customs, airports, seaports, logistics warehouses and high-risk facilities.
Equipped with two X-ray generators, high penetration up to approx. 40–45 mm steel and 2000 kg conveyor load capacity, it delivers clear, high-resolution images from two perspectives, improving the detection of weapons, explosives, narcotics and other contraband in dense pallets and oversized baggage.

Key Features

• Dual-view design with two generators and two viewing angles for more accurate threat recognition in large cargo and pallets

• Extra-large 1500 × 1500 mm tunnel to handle big boxes, trolleys and palletized loads for airport, port and logistics screening

• High steel penetration up to approx. 40 mm (top view) and 45 mm (side view) for dense and complex cargo

• 2000 kg conveyor max load with 0.25–0.3 m/s belt speed for high-throughput inspection lines

• Advanced dual-energy imaging with clear material discrimination, grayscale and mixture resolution for organic/inorganic object analysis

• Built-in threat alert and material classification, drugs and explosives inspection functions to support security operators

• Multilingual operation, automatic built-in test, self-diagnosis and secure access key for easy and controlled use

• Network-ready architecture with automatic archiving and large image storage for centralized monitoring and audit trails

• Energy-saving design, one-key shutdown and optional UPS for uninterrupted operation during power fluctuations

• Safe X-ray dosage per inspection, low boundary leakage and film safety up to ISO1600, compliant with international standards
