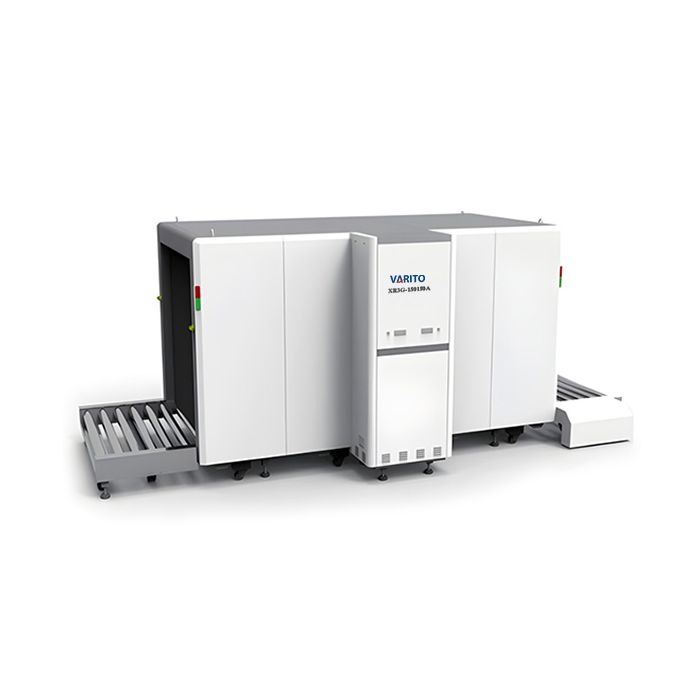

VARITO XR3G-150150A X Ray Baggage Scanner
VARITO XR3G-150150A X Ray Baggage Scanner
Model: XR3G-150150A
Tunnel Size (W × H): 1500 mm × 1800 mm
Conveyor Speed: Approx. 0.5 m/s
Conveyor Height: About 350 mm from floor level
Max. Conveyor Load: Up to 2000 kg
Unit Size (L × W × H): ≈ 2127 mm × 2230 mm × 2338 mm
Net Weight: ≈ 1150 kg (approximate)
Gross Weight (packed): ≈ 1350 kg
Steel Penetration: Up to about 43 mm steel
VARITO XR3G-150150A X Ray Baggage Scanner
VARITO XR3G-150150A X Ray Baggage Scanner is a big-size heavy-duty luggage and cargo scanner designed for airports, ports, logistics hubs and large industrial sites. With an extra-large 1500 × 1800 mm tunnel, up to 43 mm steel penetration and 2000 kg conveyor load capacity, it delivers high-resolution dual-energy images to reliably detect weapons, explosives, narcotics and contraband in oversized pallets and trolleys while maintaining very low radiation leakage within international safety standards.
Key Features
-
Extra-large 1500 × 1800 mm tunnel for scanning big boxes, pallets and bulk cargo used in airports, ports and logistics warehouses
-
High penetration up to about 43 mm steel for dense and complex loads, improving detection of hidden threats
-
Powerful conveyor system with approx. 0.5 m/s belt speed and up to 2000 kg load capacity for high-throughput inspection lines
-
Dual-energy detector and L-shaped photodiode array provide clear material discrimination and stable image quality
-
High-resolution image display (over 1K × 1K pixels, 4096 grey levels) for detailed analysis of baggage and cargo contents
-
Rich image processing functions: zoom, negative, high/low penetration, organic/inorganic stripping, general enhancement and pseudo color modes
-
Integrated explosives and narcotics detection algorithms, high-density alarm and threat image projection (TIP) for operator training and vigilance
-
Automatic self-diagnosis, multilingual interface, one-key shutdown, baggage counter and large image archive (100,000+ images) for easy operation and maintenance
-
Very low X-ray leakage (well below typical regulatory limits) and safe for high-speed film (ISO1600)
-
Optional UPS backup (15–60 minutes) to keep the system running during power interruptions
Technical Specification
|
Parameter |
Specification |
|
Model |
VXR3G-150150A |
|
Application |
Large luggage, pallet and cargo security inspection for airport, hotel, seaport, warehouse and logistics centers |
|
Tunnel Size (W × H) |
1500 mm × 1800 mm |
|
Conveyor Speed |
Approx. 0.5 m/s |
|
Conveyor Height |
About 350 mm from floor level |
|
Max. Conveyor Load |
Up to 2000 kg (evenly distributed) |
|
Unit Size (L × W × H) |
≈ 2127 mm × 2230 mm × 2338 mm |
|
Net Weight |
≈ 1150 kg (approximate) |
|
Gross Weight (packed) |
≈ 1350 kg (with wooden packing) |
|
Steel Penetration |
Up to about 43 mm steel |
|
Wire Resolution |
~0.0787 mm copper wire (around AWG40) |
|
Penetration Resolution |
~0.16 mm copper wire (around AWG34) under stepped aluminium wedge |
|
Spatial Resolution |
Horizontal ≈ 1.0 mm / Vertical ≈ 1.0 mm |
|
X-ray Dose per Inspection |
Around 1.5 μGy per scan |
|
X-ray Leakage |
< 0.25 μGy/h at specified distance from outer surface (within international safety limits) |
|
Film Safety |
Safe for film up to ISO1600 |
|
Power Consumption (Max) |
Approx. 2 kW |
|
Noise Level |
< 58 dB (near the system) |
|
X-ray Generator Voltage |
About 160–200 kV (adjustable), top-down beam direction |
|
Tube Current |
About 0.4–1.2 mA (adjustable) |
|
Generator Brand |
Industrial-grade generator (platform uses Spellman-type tube) |
|
Cooling / Duty Cycle |
Oil cooled, forced-air; designed for continuous operation |
|
X-ray Sensor |
L-shaped multi-energy photodiode array, 12-bit acquisition |
|
Image Resolution |
~1024 × 1280 display pixels, 24-bit color; 4096 grey levels |
|
Image Functions |
Zoom (multi-level), color/black-white, negative, high/low penetration, organic/inorganic separation, edge enhancement, pseudo color, image recall |
|
Image Archive |
Up to ~100,000 images stored, exportable in JPG/BMP and other common formats via USB |
|
Explosives & Narcotics Detection |
Software-based detection and highlighting using atomic number signatures |
|
High-Density Region Alarm |
Automatic alarm and highlight for possible concealed contraband in dense areas |
|
Threat Image Projection (TIP) |
Insertion of pseudo threat images for operator training and performance assessment |
|
System Functions |
Time/date display, baggage counter, user management, self-test, diagnostic tools, dual-direction scanning, standby mode and training functions |
|
Networking |
Ethernet LAN support for centralized image storage, remote recheck, network TIP and management (optional) |
|
Operating Temperature / Humidity |
Approx. 0–45 °C, 5–95% RH (non-condensing) |
|
Storage Temperature / Humidity |
About −40–70 °C, 5–95% RH (non-condensing) |
|
Input Power |
220 VAC ±10%, 50 ±3 Hz (other voltages optional) |
|
UPS Option |
15 / 30 / 60 minutes backup available as option |
|
Compliance (Platform) |
Designed to meet CE, ISO, FDA and relevant radiation safety regulations |
