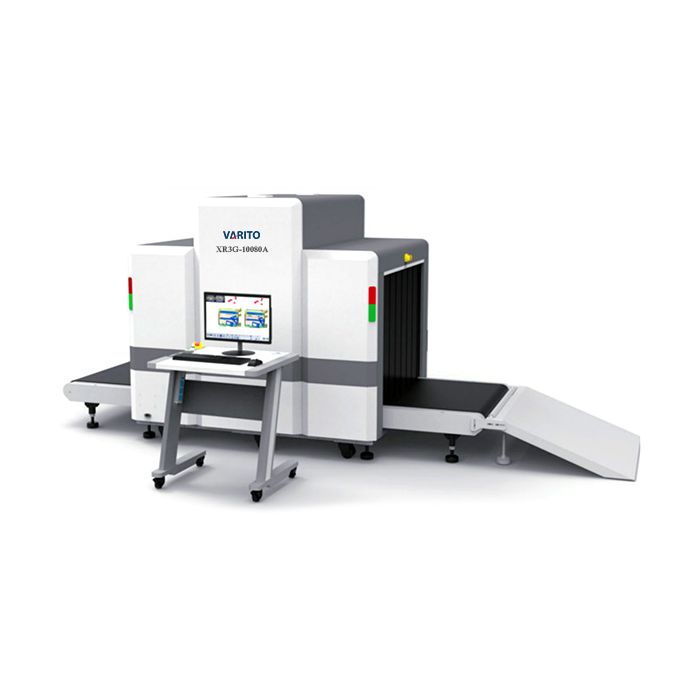

VARITO XR3G-10080A Large Baggage Scanner
VARITO XR3G-10080A Large Baggage Scanner
Model: VXR3G-10080A
Tunnel Size (W × H): 1000mm × 800mm
Dimensions (L × W × H): 2890mm × 1380mm × 1560mm
Console Table Size (L × W × H): 700mm × 600mm × 750mm
Equipment Net Weight: 650kg
Conveyor Load Capacity: 200kg
Conveyor Speed: 0.22 m/s
Conveyor Belt Height: 310mm
Scanning Direction: Dual-direction
Noise Level: <55 dB
Power Consumption: 800W
VARITO XR3G-10080A Large Baggage Scanner
VARITO XR3G-10080A is a high-capacity 160kV X-ray baggage scanner designed for oversized luggage and cargo. With a 1000×800mm tunnel, up to 40mm steel penetration, ergonomic 310mm conveyor height and dual-direction scanning, it delivers fast, accurate inspection for airports, stations, hotels and logistics centers while maintaining a modern, customizable appearance.
Key Features
-
Large 1000mm × 800mm tunnel for oversized baggage and bulky cargo
-
160kV X-ray generator for powerful, high-definition imaging
-
Up to 40mm steel penetration for dense material detection
-
310mm conveyor height for comfortable, effortless loading
-
Dual-direction scanning to improve throughput and inspection efficiency
-
Robust design with 200kg conveyor load capacity for heavy-duty use
-
Reliable Windows 10 embedded software for safe, stable operation
-
High-resolution 21.5" Full HD monitor with 1–64× image zoom
-
Advanced imaging: color/B&W, high/low penetration, organic removal, enhancement
-
Built-in explosives & narcotics detection with suspicious alarm highlighting
-
Threat Image Projection (TIP) for operator training and continuous vigilance
-
Optional AI recognition (41 classes) and camera solution for item–person tracking
-
Compliant with GB 12664-2024, CE, ROHS, FCC safety standards
Technical Specifications
|
Item |
Specification |
|
Model |
VXR3G-10080A |
|
Application |
Large baggage / oversized luggage inspection |
|
Tunnel Size (W × H) |
1000mm × 800mm |
|
Dimensions (L × W × H) |
2890mm × 1380mm × 1560mm |
|
Console Table Size (L × W × H) |
700mm × 600mm × 750mm |
|
Equipment Net Weight |
650kg |
|
Conveyor Load Capacity |
200kg |
|
Conveyor Speed |
0.22 m/s (adjustable) |
|
Conveyor Belt Height |
310mm (from ground) |
|
Scanning Direction |
Dual-direction |
|
Noise Level |
<55 dB |
|
Power Consumption |
800W |
|
Power Supply |
AC 220V, 50Hz |
X-Ray Generator & Safety
|
Item |
Specification |
|
X-Ray Generator Voltage |
160kV |
|
Energy Type |
Dual-energy, 4-color imaging |
|
Penetration |
40mm steel plate |
|
Wire Resolution |
AWG 38 (φ0.102mm) |
|
Material Separation |
Low Z, Medium Z, High Z (up to 0.5 Z accuracy) |
|
Spatial Resolution |
Horizontal 1.0mm; Vertical 1.0mm |
|
Single Inspection Dose |
<5μGy/h |
|
X-Ray Leakage |
<0.5μGy/h at any point 5cm outside surface |
|
Orientation |
Top irradiation |
|
Generator Cooling |
Sealed oil cooling / 100% duty cycle |
|
Tube Current |
0.5–1.25mA |
|
Film Safety |
Safe for ASA/ISO1600 film |
System & Monitor
|
Item |
Specification |
|
Operating System |
Embedded Windows 10 |
|
Monitor |
One 21.5" LCD monitor, 1920×1080 |
|
Storage |
1TB |
|
Keyboard |
Special design with shortcut buttons |
|
Electric Roller |
Single-phase |
Imaging & Processing
|
Item |
Specification |
|
X-Ray Sensor |
L-shaped photodiode array, 12-bit depth |
|
Image Processing |
24-bit real-time processing, 4-color analysis |
|
Image Display Resolution |
1920×1080 high-resolution display |
|
Image Zoom |
1–64× image zoom |
|
Display Modes |
Color / Black & White / Partial Increasing |
|
Enhancement Functions |
High Penetration / Low Penetration / Over-Increasing / Organic Removal |
|
Image Information |
Date, ID number, bag counting |
|
Explosives & Narcotics Detection |
Suspicious organics highlight (Zeff=7,8,9) |
|
Suspicious Alarm |
Alarm and box line for hard-to-penetrate items, explosives and drugs |
|
Threat Image Projection (TIP) |
Inserts fictional threat images for training and vigilance |
|
Image Recall |
Hundreds of stored images |
Software & Miscellaneous Functions
|
Item |
Specification |
|
System Functions |
Time/date display, counters, user management |
|
Timers |
System-on / X-ray-on timers |
|
Diagnostics |
Power-on self test, built-in diagnostic facilities |
|
System Log |
Event and alarm logging |
|
Standby Mode |
System standby |
|
Training |
Built-in stimulant training via TIP |
Operating Environment
|
Item |
Specification |
|
Operating Temperature |
5°C to 40°C |
|
Storage Temperature |
-20°C to 40°C |
|
Operating Humidity |
0% to 90% RH (non-condensing) |
|
Storage Humidity |
0% to 90% RH (non-condensing) |
Options & Accessories
|
Item |
Specification |
|
AI Feature |
41 classes in 15 major types |
|
Camera Solution |
Real-time video recording for item–person association and lost item retrieval |
|
UPS |
1.5KVA, approx. 15–20 minutes backup |
|
OEM Branding |
Applied on metal frame; integrated in interface |
Packaging & Regulatory Compliance
|
Item |
Specification |
|
Packing List |
Console table ×1; English manual ×1; Cable ×1; Tools set ×1 |
|
Packaging Method |
Wooden pallet |
|
Packaging Dimensions (L × W × H) |
2070mm × 1480mm × 1820mm |
|
Net Weight (N.W.) |
650kg |
|
Gross Weight (G.W.) |
755kg |
|
China Standard |
GB 12664-2024 |
|
International Certifications |
CE, ROHS, FCC |
