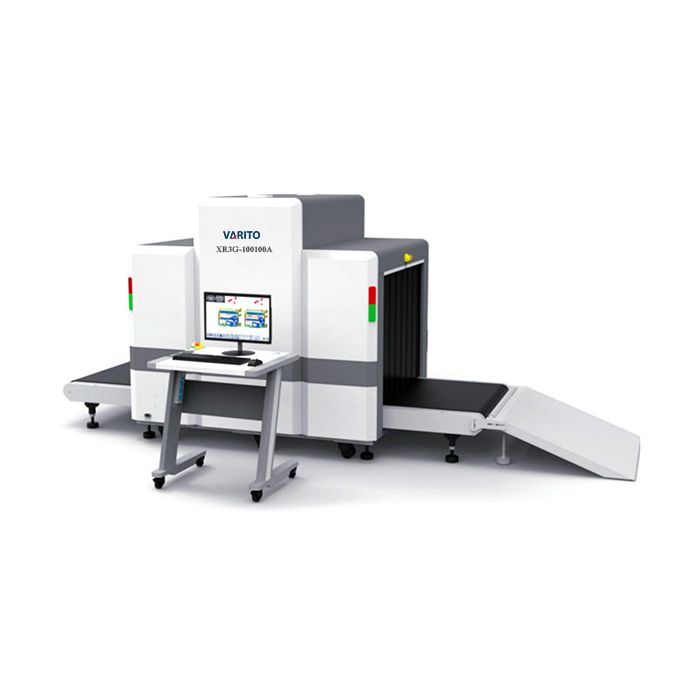

VARITO XR3G-100100A X-Ray Baggage Scanner
VARITO XR3G-100100A Baggage Scanner
Model: XR3G-100100A
Tunnel Size (W × H): 1000mm × 1000mm
Dimensions (L × W × H): 3300mm × 1360mm × 1760mm
Console Table Size (L × W × H): 1200mm × 600mm × 750mm
Equipment Net Weight: 950kg
Conveyor Load Capacity: 730kg
Conveyor Speed: 0.22 m/s
Conveyor Belt Height: 330mm
Scanning Direction: Dual-direction
Noise Level: <60 dB
Power Consumption: 1000W
VARITO XR3G-100100A Baggage Scanner
VARITO XR3G-100100A is an advanced X-ray baggage and parcel scanner designed for rapid, non-intrusive inspection of luggage and goods. With up to 40mm steel penetration, AI-powered threat identification, organic/inorganic layered imaging, low-noise operation and energy-saving functions, it is ideal for government, transport hubs, logistics, courts, prisons, embassies, factories, schools, hospitals, stadiums and other high-security environments.
Key Features
-
High-performance X-ray inspection system for fast, non-intrusive screening
-
Up to 40mm steel penetration for accurate detection in dense baggage
-
AI-enabled risk identification improves detection of concealed threats
-
Organic / inorganic layered imaging for clearer material discrimination
-
Infrared sensing automatically adjusts conveyor operation for smarter control
-
Low-noise design (<55 dB) eliminates traditional equipment roar and disturbance
-
One-touch shutdown, automatic sensing, energy-saving and eco-friendly design
-
Detects hidden prohibited items: controlled knives, firearms, detonators, fireworks, alcohol, ethanol and other flammable/explosive materials
-
Robust, military-grade performance parameters for reliable 24/7 operation
-
Suitable for government agencies, transportation hubs, logistics centers, courts, prisons, embassies, factories, schools, hospitals, stadiums, exhibition halls and entertainment venues
-
Provides a transparent, trustworthy basis for security procurement and compliance
Technical Specifications
|
Item |
Specification |
|
Model |
VARITO XR3G-100100A Baggage / Parcel X-Ray Inspection System |
|
Type |
X-ray baggage and small cargo inspection equipment |
|
Inspection Objects |
Small cargo, parcels, mail, bags, handbags, backpacks, etc. |
|
Typical Applications |
Government, transport hubs, logistics, courts, prisons, embassies, factories, schools, hospitals, stadiums, exhibition halls, entertainment venues and other public security sites |
X-Ray Performance
|
Item |
Specification |
|
X-Ray Technology |
High-performance transmission X-ray inspection |
|
Maximum Penetration |
Up to 40mm steel plate |
|
Material Imaging |
Organic / inorganic layered imaging |
|
Threat Types |
Controlled knives, firearms, detonators, fireworks, alcohol, ethanol and other flammable/explosive or prohibited items |
|
Performance Level |
Military-grade parameter standards as quantifiable indicators |
Detection & Imaging
|
Item |
Specification |
|
AI Capability |
AI-enabled threat recognition for potential risk identification |
|
Image Analysis |
Supports multi-layered imaging and material discrimination |
|
Organic / Inorganic Analysis |
Organic / inorganic material separation and layering |
|
Image Mode |
X-ray images optimized for baggage and parcel screening |
Functional & Intelligent Features
|
Item |
Specification |
|
One-Touch Shutdown |
Supported – quick and safe shutdown for operators |
|
Automatic Sensing |
Infrared sensing for automatic conveyor control / adjustment |
|
Energy-Saving Functions |
Intelligent energy-saving and environmental protection design |
|
Noise Level |
<55 dB, low-noise operation to avoid disturbing staff or passengers |
|
Operational Concept |
Rapid, non-intrusive inspection of luggage and goods |
|
Quality & Reliability |
Robust construction with military-grade standards, designed for long-term continuous use |
Safety & Compliance
|
Item |
Specification |
|
Safety Concept |
Designed to provide highly precise and efficient security inspection solutions |
|
Procurement Transparency |
Military-grade, quantifiable parameters to support transparent, reliable procurement |
|
Use Case Focus |
Critical infrastructure and vital public security departments |
| Call for Price | No |
|---|---|
| Brand | Varito |
