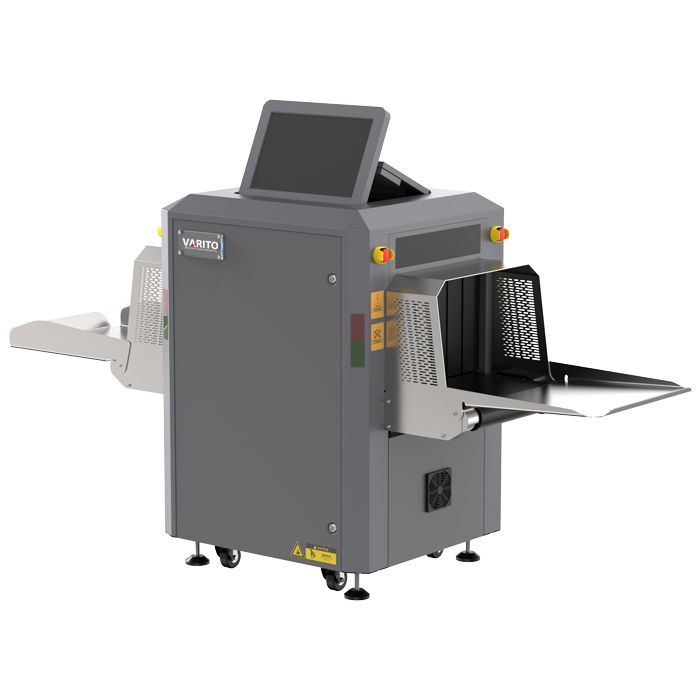

VARITO XR3D-6550C Baggage Scanner Machine
X-Ray Baggage Scanner
Brand : VARITO
Model : XR3D-6550C
Country of Origin: Germany
Manufacture From: China
Special Features:
Display: High Resolution Color Display
Conveyor belt rated load: 120kg
Conveyor Speed: 0.22 Meters/second
Sensor Type: 1/2.8" Progressive Scan Cmos
Service Warranty: 1 Year Standard
VARITO XR3D-6550C X Ray Baggage Scanner
Buy reasonable price of VARITO XR3D-6550C Baggage Scanner in Bangladesh Tk 20,50,000 only. Buy VARITO XR3D-6550C from Dhaka at reasonable price in GCTL.
VARITO XR3D-6550C X-ray baggage scanner series features a unique design and delivers exceptional image clarity, making it a top choice for security inspections. Available in classic tunnel sizes of 659 and 504, these machines can be equipped with powerful X-ray sources of 80kV and 140kV to meet varying security needs. Customization options ensure that each unit can be tailored to specific applications, enhancing its effectiveness in detecting threats in baggage and cargo. Ideal for airports, border controls, and high-security areas, our X-ray machines are pivotal in ensuring safety and compliance.
Technical Specifications:
|
SPECIFICATION |
||
|
Dimensions |
Tunnel Size |
659mm (W) * 504mm (H) |
|
Device Size |
1893mm (L ) * 916mm (W) * 1411mm (H) |
|
|
Performance Parameters |
Line Resolution |
Awg38(Φ0.102mm) |
|
Spatial Resolution |
Horizontal 1.0mm; Vertical 1.0mm |
|
|
Penetration |
40mm Steel Plate |
|
|
X-ray Source |
140kv 0.5ma-1.25ma |
|
|
Radiation Dose |
Leakage Dose |
<1μGy/h at any point 5 centimeters outside the external surface |
|
Single Dose |
≤2.5μGy/h |
|
|
Conveyor Parameters |
Conveyor Belt Height |
700mm (Belt To Ground) |
|
Conveyor Speed |
0.22 Meters/second |
|
|
Screen |
Display Size |
21.5" |
|
Resolution |
1920*1080p |
|
|
Overall Parameters |
Power Consumption |
800w |
|
Power Supply |
Ac220v 50hz |
|
|
Noise |
<55 Db (1 Meter Away From The Device) |
|
|
Working Temperature & Humidity |
5℃~40℃ 10%~90% No Condensation |
|
|
Storage Temperature & Humidity |
-20℃~40℃ 0~90% No Condensation |
|
|
Weight |
450kg |
|
|
Monitor System Parameters |
Sensor Type |
1/2.8" Progressive Scan Cmos |
|
Number Of Cameras |
1 Channel Entrance |
|
|
Wide Dynamic Range |
120db |
|
|
Video Compression Standards |
H.265 /h.264 Mjpeg |
|
|
Maximum Image Size |
1920x1080 |
|
|
Storage Duration |
Not Less Than 30 Days |
|
|
System |
Win 10 |
|
|
System Language |
English / Chinese / Russia / Turkish |
|
VARITO XR3D-6550C X Ray Baggage Scanner Price in Bangladesh
Germany Computer & Telecom Ltd. (GCTL) is a leading supplier of advanced security solutions in Bangladesh, offering a range of X-ray baggage scanner from top brands like VARITO Baggage Scanner. The VARITO XR3D-6550C is a high-performance dual-energy X-ray baggage scanner designed for medium-sized baggage inspection in high-security environments such as Airports, Embassies and Government facilities. For the latest pricing and more information, Please contact with us.
| Call for Price | No |
|---|---|
| Brand | Varito |
