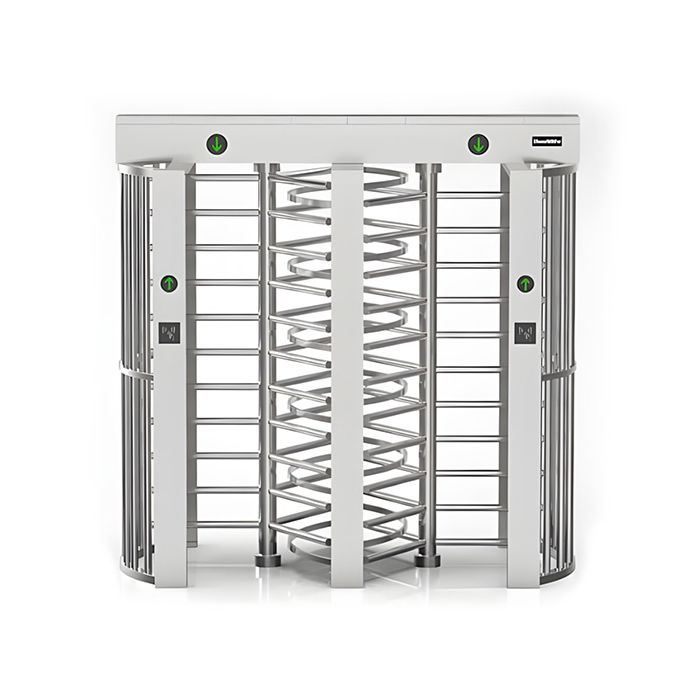

VARITO VFHT-DS412 Full Height Turnstile

VARITO VFHT-DS412 Full Height Turnstile

VARITO VFHT-DS412 Full Height Turnstile is turnstile used in pedestrian access control. The full-height turnstiles is designed to allow passage in one direction or two diretions. It is designed to interface with access control systems such as card readers, locks, etc.

The full-height turnstile is highly vandal-resistant and features a heavy-duty design with an in-built anti-tailgating or anti-passback capability. The turnstile is composed of a stainless steel cabinet, a mechanical rotating arm, an electric motor and a special microcontroller module that controls the mechanism's running mode. The cabinet is made to resist weather and has a scratch-resistant finish.

The turnstile arms are magnetic in position until authorized access is gained. With the full-height turnstile, access control decision is taken entirely by the turnstile and no external help is needed. Whenever authorized person passes, the turnstile arm rotates and unlocks to allow passage.

The full-height turnstile is an ideal solution for any access control system in need of secure, reliable, and efficient access control for pedestrian entrances. It's highly robust and secure design make it an ideal fit for places where access control is a must, such as airports, train stations, stadiums, casinos and more.

Technical Parameters:

Full Height Turnstile Safety Features:

1. Long-life performance, high operation dependability and fast response

2. The mechanism is equipped with an automatic regulated hydraulic buffer device. No noise and impact when running

3. Single directional or Bi-directional is selectable

4. Automatic reset function: turnstile arm will lock automatically within 5s (can be setting) ifpassenger delay to entry

5. Anti-tailing function: only one person passes at one time

6. When power is off, arms will open automatically, which is complying with fire safety requirements

7. LED indicator (Red × means no entry, Green → means entry)

8. Structure of trunking to contain cable tidy inside the case

9. Structure of ring cover on top and bottom to beautify it

10. Override key function: when power failure, support to control open and close by manual

11. Easy to install and maintain

Full Height Tripod Turnstile Functionality:

• Full Height turnstile VFHT-DS412 is the secure turnkey solutions for events that have high-security request, industrial enterprises, stadium, football field, for instance.
• The model is designed in double-door, and bi-directional passage control.
• It is long-lasting durable, strong and robust for indoor and outdoor used, as all material is rigid, anti-rust and water waterproof full brushed stainless steel.
• Two visible LED indications are on side front and another two are on top to show entry or not. Each two indications show one passage.
• Arm can be chosen between 120° rotors and 90°
• It’s with enough space and can firmly install any kind of access controller and device.

Germany Computer & Telecom Ltd. offer a comprehensive Full Height Turnstile installation and maintenance service. We are committed to providing the highest quality service and support for our products.
