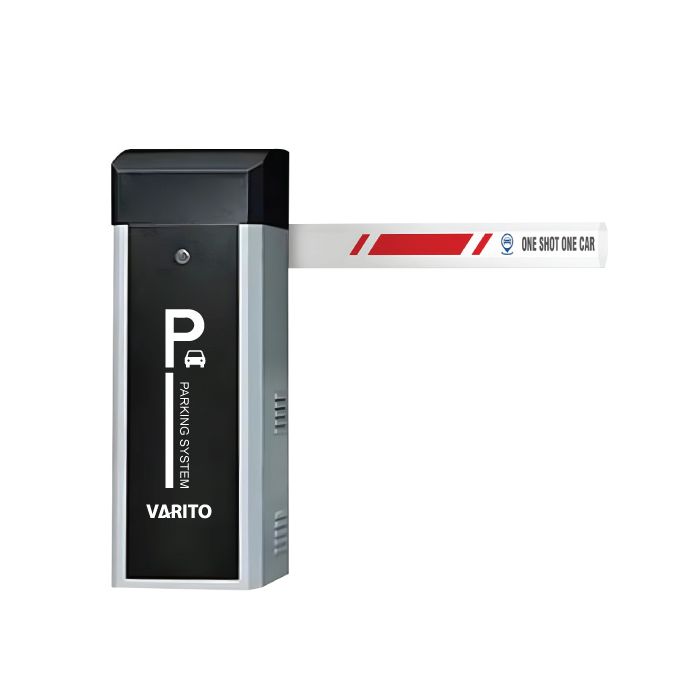

VARITO VCB-DC6B Automatic Car Barrier Gate
VARITO VCB-DC6B Automatic Car Barrier Gate
Brand: VARITO
Model: VCB-DC6B
Country of Origin: Germany
Country of Manufacture: China
Feature Highlights:
Material : MS Material
Position : Vehicle Fence
Thickness : 1.5-1.8mm
Lifting Speed : 3s - 6s
Remote Distance : within 30m
Arm Size : 4m to 6m
Motor Watt : 100W-150W
IP Rating : IP54 Rating
Dimension : 320mm*240mm* 980mm
VARITO VCB-DC6B Automatic Car Barrier Gate
The VCB-DC6B Boom Barrier, which adopts three-stage reduction to realize adjustable the direction, adjustable speed, automatic speed reduction. In this way, make the barrier operation more stable and more reliable.
A boom barrier is designed for a range of large opening up to 6m. It is ideal solution for controlling vehicle traffic in parking lots, private entrances, industrial and public uses.
Quality control is our top priority, so we vigorously test our boom barriers to make sure a longer life span. With our excellent craftsmanship, nice welding, galvanized and powder coated surface finishing, quiet and smooth during operation, our boom barriers can bring perfect user experience.
Functions and Features:
a) Auto bounce back function. Additional sensor can detect when arm hits obstacle.
2) Auto slow down function. Barrier arm will auto slow down when it will fully close or open.
3) Intelligent limited sensor. Limited sensor can check open & close position automatically. No need adjust it by hand.
4) Lower working temperature. No thermal protection even we don’t add fan to cool motor.
5) Longer working life. It can open and close 3million times.
6) Speed is adjustable within 3 second to 6 second. Open & close speed can be different.
Technical Specification:
| Brand | VARITO |
| Model | VCB-DC6B |
| Color | Black & Gray |
| Open/Close Time | 3s - 6s |
| Boom Length | 4-6m |
| Remote Control Distance | Within 30m |
| Input Interface | +12V Relay Signal or >=100ms Pulse Signal |
| Voltage | AC220V, 50Hz |
| Outdoor Waterproof | Multi-Environment adapted |
| Resistance Reaction | Lift when outer force applied |
| Multi-controlling | Remotely, Manually |
| High Integrated Feature | Accessories Available and Compatible |
| Open-Priority | Remotely Lift in any case to encounter emergency |
| Waterproof Grade | IP54 Rating |
| Operating Temperature | -40oC to +80oC Environment Temperature |
| Angle Sensor |
Instantly boom position capture, high precision, Steady movement |
| Texture Strips Surrounded | Preclusion to any possible damage |
| Environmental Humidity | 90% (Non condensation) |
| Motor Movement | DC24V (Brushless Movement) |
| Barrier size | 320mm x 240mm x 980mm |
| Barrier weight | 60-80kg |
|
Boom Type |
Straight arm/Telescopic
Folding arm <5.5m (90o/180º) Fence arm <4.5m |
| Applications | Commercial & Public Parking Areas
Residential Complexes Industrial & Institutional Facilities Government & High-Security Zones Event & Entertainment Venues |
| Warrenty | One (1) Year Standards |
| Call for Price | No |
|---|---|
| Brand | Varito |
