Swing Gate Access Control System with LED Indicator

Swing Gate Access Control System with LED Indicator

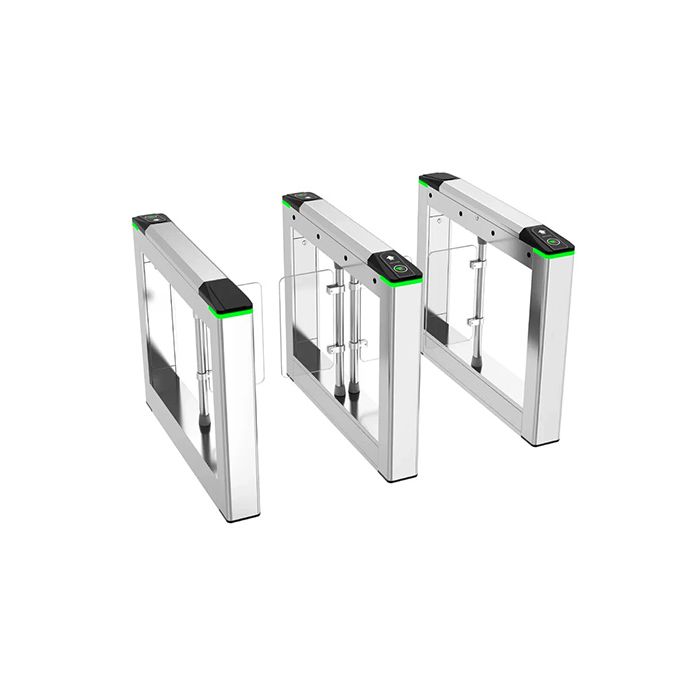

The Swing Gate Access Control System with LED Light Indicator is a heavy-duty stainless-steel swing barrier designed for high-traffic entrances. It supports bi-directional passage, LED status indication, RS-485 communication interface and accommodates passage widths up to 1000 mm. Ideal for office lobbies, industrial sites and secure building entrances.

Key Features

• Constructed of durable 304 stainless steel body for long life and outdoor/indoor reliability.


• Passage width supports up to 1000 mm, suitable for wide entrances and wheelchair access.


• Bi-direction arm turning allows entry and exit control on the same unit.


• LED light indicator provides visual status feedback (green for go, red for stop) for intuitive user guidance.


• Ultra-fast arm open/close time (~1 second) to keep traffic flow smooth.


• RS-485 communication interface (distance up to 1200 m) for integration with access control systems.


• Operates in a wide temperature range from -15 °C to 60 °C and humidity < 95% without condensation.


• Two-way passage and high throughput (up to 30 persons/min in normal open mode) for busy sites.


• Power supply options AC 220 V ±10 V 50 Hz or AC 110 V ±10 V 60 Hz for global compatibility.


• Customisation available (arm length, colours, finish) to match branding or site layout.


Technical Specifications
