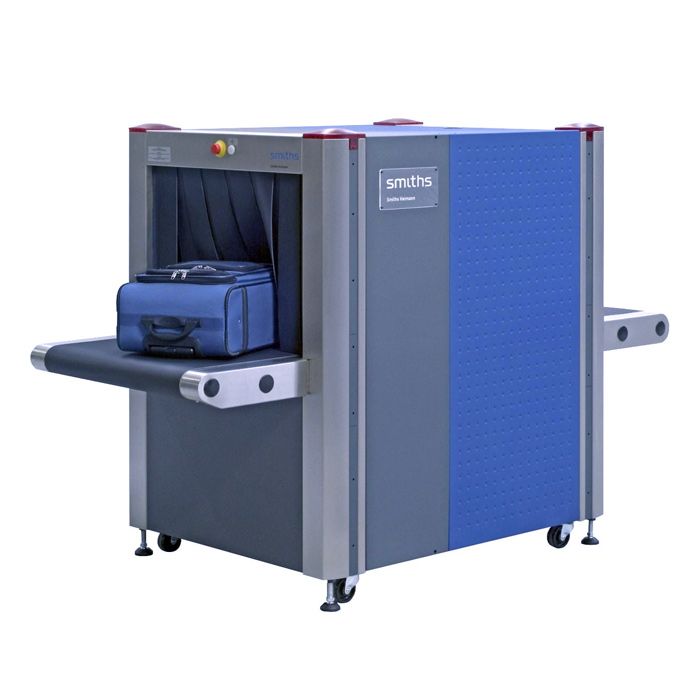

Smiths Detection HI-SCAN 7555si Advanced X-ray inspection Scanner
Smiths Detection HI-SCAN 7555si Advanced X-ray inspection Scanner
Brand : Smiths Detection
Model : HI-SCAN 7555si
X-Ray Source : Multi-Energy
Feature Highlights:
New X-ray generator with optimized spectrum.
New Hi TraX II system platform with extended scope of services.
High resolution image display with doubled resolution.
Up to 37 mm steel penetration.
Wire detectability up to AWG 41.
Smiths Detection HI-SCAN 7555si Advanced X-ray inspection Scanner
Large tunnel dimensions and an advanced multi energy X-ray generator, the HI-SCAN 7555si provides high quality image analysis of baggage and parcels.
HI-SCAN 7555si is equipped with an advanced Multi-energy X-ray Baggage scanner generator, a new generation of electronics plus a completely novel high resolution detector line. Due to this optimized technology, the system demonstrates performance rates unachieved before. HI-SCAN 7555si produces extremely detailed X-ray images, which impress by a more than doubled number of real, physical pixels.
The drastically enhanced image resolution of the scanned objects represents a decisive advantage for image evaluations in security areas. HI-SCAN 7555si additionally has a higher tunnel opening and therefore can scan objects, whose sizes exceed standard dimensions for hand luggage in the aviation industry. HI-SCAN 7555si - increased security by advanced technology. With large tunnel dimensions and an advanced multi energy X-ray generator, the HI-SCAN 7555si provides high quality image analysis of baggage and parcels.
Product Information:
Using an advanced multi-energy X-ray generator, the HI-SCAN 7555si produces extremely detailed X-ray images with more than double the number of pixels compared to other systems. The enhanced image resolution of the scanned objects represents a decisive advantage for image evaluation.
The HI-SCAN 7555si features a large tunnel opening and can therefore scan objects that exceed the aviation industry’s standard dimensions for hand baggage.
General Specifications:
| General Specifications | |
| Tunnel Dimensions | 755 (W) x 555 (H) [mm] • 29.7” (W) x 21.9” (H) |
| Max. object size | 755 (W) x 555 (H) [mm] • 29.7” (W) x 21.7” (H) |
| Conveyor height | Approx. 755 mm (29.7”) |
| Conveyor speed at mains frequency | 0.2/0.24 (m/s) (50 Hz / 60 Hz) |
| Max. conveyor load (evenly distributed) | 160 kg (352 lbs) |
| Resolution (wire detectability) | Standard: 40 AWG (0.08 mm Cu) • typical: 41 AWG (0.07 mm Cu) |
| Penetration (steel) | Standard: 35 mm • typical: 37 mm |
| External dose rate | <2 µSv/h (0,1 mrem) |
| Film safety | Guaranteed even for high-speed films up to ISO 1600 (33 DIN) |
| Duty cycle | 100 %, no warm-up procedure required |
| X-ray Generator | |
| X-ray generators | 1 |
| Anode voltage • cooling | 160 kV cp •hermetically sealed oil bath |
| Beam direction | Diagonal |
| Image Generating System | |
| X-ray converter | L-shaped detector line, high resolution |
| Grey levels stored | 4096 |
| Image presentation | B/W Color Image (default) |
| Digital video memory | 1280 x 1024 / 24 bit |
| Image evaluation functions | VARI-MAT, O2, OS, electronic Zoom: enlargement: up to 64 times |
| Monitor | Flat Panel LCD Monitors |
|
Extra Features |
|
| Features | Fading-in of date/time, luggage counter, user id-number, luggage marking system (acoustic), display of operating mode, REVIEW-feature (to recall previously visible image areas), zoom overview, free programmable keys, USB 2.0 interface, stepless zoom |
| Diagnostics | Power-on Self-Test (POST), Real-time Background Diagnosis (RBD), Real-time System Feedback (RSF) |
| Options | X-ACT, HI-TIP, HI-SPOT, SEN, XPlore, IMS (Image Store System - stores up to 100,000 images), Random ReCheck |
| Accessories | Not Applicable |
| Installation Data | |
| X-ray leakage | Meets all applicable laws and regulations with respect to X-ray emitting devices |
| CE-labelling | In compliance with directives 2006/42/EC, 2014/35/EU, 2014/30/EU |
| Sound pressure level | < 70 dB(A) |
| Operating- / storage temperature | 0 ° - 40 °C / -20 °C - +60 °C |
| Humidity | 5 % - 95 % (non-condensing) |
| Power Supply | Standard: 230 VAC or 120 VAC +10% / -15% • 50 Hz / 60 Hz ± 3 Hz |
| Power consumption | Approx. 0.8 kVA |
| Protection class system / keyboard | IP 20 / IP 43 |
| Dimensions • Weight | 2120 (L) x 985 (W) x 1445 (H) [mm] • approx. 580 kg 83.5” (L) x 38.8” (W) x 56.9” (H) • approx. 1287.7 lbs |
| Mechanical Construction | Steel construction with steel panels, mounted on rollers Standard color(s): RAL 7016 (dark grey) / B11-W1 (blue) |
