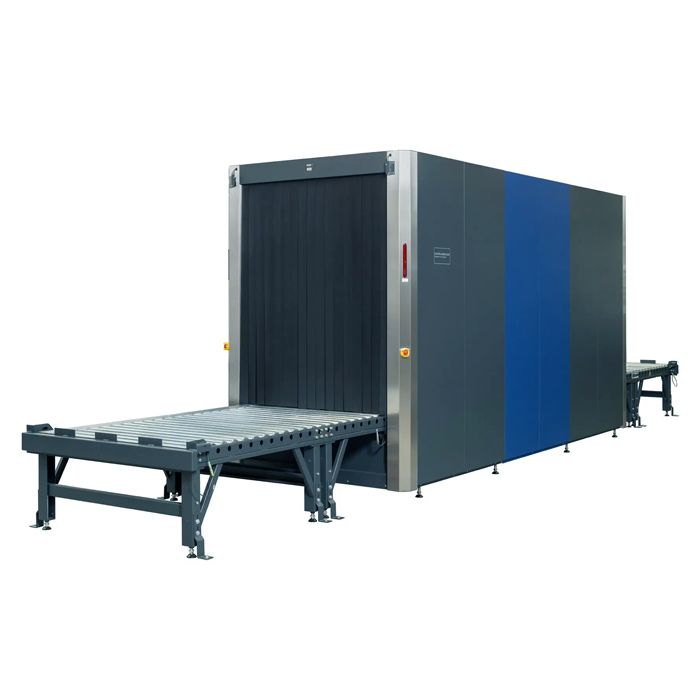

Smiths Detection HI-SCAN 180180-2is pro X-ray Scanner
Smiths Detection HI-SCAN 180180-2is pro Heavy Duty Roller Conveyor
Brand : Smiths Detection
Model : HI-SCAN 180180-2is pro
X-Ray Source : Dual-Energy
Feature Highlights:
Dual View X-ray system for consolidated and palletized goods
Excellent image presentation through optimized beam geometry
Rugged roller conveyors for loads up to 5000 kg when evenly distributed
The tunnel dimensions exceed international standards (TSA 48” x 48” x 65”) for max. skid size and are large enough to accept LD 3 containers.
Typical penetration: 75 mm of steel, typical-wire resolution AWG 37
Smiths Detection HI-SCAN 180180-2is pro Advanced Dual View X-ray Cargo Scanner
HI-SCAN 180180-2is pro X-ray scanner designed for the inspection of large scale consolidated and palletized goods, ideal for cargo inspection. Tunnel dimensions of 180 x 180cm means the HI-SCAN 180180-2is pro is capable of screening LD3 containers.
Based on a dual-view concept, the system provides two sharp independent views of the screened goods and, as a result, it delivers more accurate and reliable image evaluation. Two powerful 300 kV X-ray generators are capable of penetrating even large and dense objects, reducing reinspection times (as consolidated cargo does not usually need to be broken down into smaller items) ensuring high throughput and a fast, efficient inspection process.
The small-pitch roller conveyors ensure a smooth passage for the scanned goods and supports a total load of up to 5,000kg/m (evenly distributed). The compact footprint minimizes the required floor space, keeping the lifecycle costs low.
The HS 180180-2is pro is a powerful tool for the air cargo industry, including forwarders and regulated agents. It is also suitable for customs purposes and for screening received or outgoing goods in critical infrastructure applications. HI-SCAN 180180-2is pro provides better security and operational efficiency when it comes to the inspection of cargo and air cargo.
Featured Highlights:
- Dual view shortens inspection times
- Beam geometry facilitates the detection of potential threats
- Rugged roller conveyors accepts loads of up to 5 tones when evenly distributed
- High-penetration capabilities to avoid disassembly into individual packages
General Specification:
| General Specifications | |
| Tunnel Dimensions (WxH) | 1810 (W) x 1821 (H) [mm] • 71.3” (W) x 71.7” (H) |
| Max. object size |
1790 (W) x 1700 (H) [mm] • 70.5” (W) x 66.9” (H) |
| Conveyor height | Approx. 840 mm (33.1”) Small pitch roller conveyor type |
| Belt speed | Typical 0.24 (m/s] |
| Resolution (wire detectability) | Standard: 36 AWG (0.13 mm) • typical: 37 AWG (0.11 mm) |
| Max. conveyor load | Max. 5000 kg / 11023 lbs (1000 kg/m / 672 lbs/ft) |
| Penetration (steel) | Standard: 70 mm • typical: 75 mm |
| Duty cycle | 100 %, no warm-up procedure required |
| X-ray Generator | |
| Anode voltage • cooling | 300kV cp • hermetically sealed oil bath |
| Beam directions view A / view B | View 1: diagonal from side, view 2: diagonal from bottom to top |
| Image Generating System | |
| X-ray converter | L-shaped detector line |
| Grey levels stored | 4096 |
| Image presentation | B/W, Color |
| Digital video memory | 1280 x 1024 / 24 bit |
| Image evaluation functions | VARI-MAT, O2, OS, HIGH |
| Mnitor |
Flat Panel LCD Monitor |
| Additional Features | |
| X-ray leakage | Meets all applicable laws and regulations with respect to X-ray emitting devices |
| Sound pressure level | <70dBA |
| Operating temperature | +0°C up to +40°C C / -20°C - +60°C |
| Storage temperature | -15°C up to +60°C (5°F up to 140°F) (without UPS batteries) |
| Humidity | 5% - 90% (non-condensing) |
| Power supply | 400 VAC, 3 phases • 50 Hz / 60 Hz ± 3 Hz |
| Power consumption | Approx. 4.5 kVA |
| Protection class system | IP43 (sprinkler water protection) |
| Dimensions (WxHxL) | Approx. 7200 (L) x 2650 (W) x 2900 (H) (mm) |
| Weight | Approx. 9000kg (19842) lbs |
| Mechanical construction | Steel construction with aluminium housing, mounted on roller castors |
| Extra Features | Fading-in of date/time, luggage counter, user id-number, luggage marking system (acoustic), display of operating mode, REVIEW-feature (to recall previously visible image areas), zoom overview, free programmable keys, USB 2.0 interface, stepless zoom |
Smiths Detection HI-SCAN 180180-2is pro Heavy Duty Roller Conveyor Price in Bangladesh
Germany Computer & Telecom Ltd. (GCTL) is a leading supplier of advanced security solutions in Bangladesh, offering a range of X-ray baggage scanner from top brands like Smiths Detection. Their products are widely used in airports, government facilities and other high-security areas across the country. The price for the Smiths Detection HI-SCAN 180180-2is pro in Bangladesh is available upon request. For the latest pricing and more information, Please contact with us.
