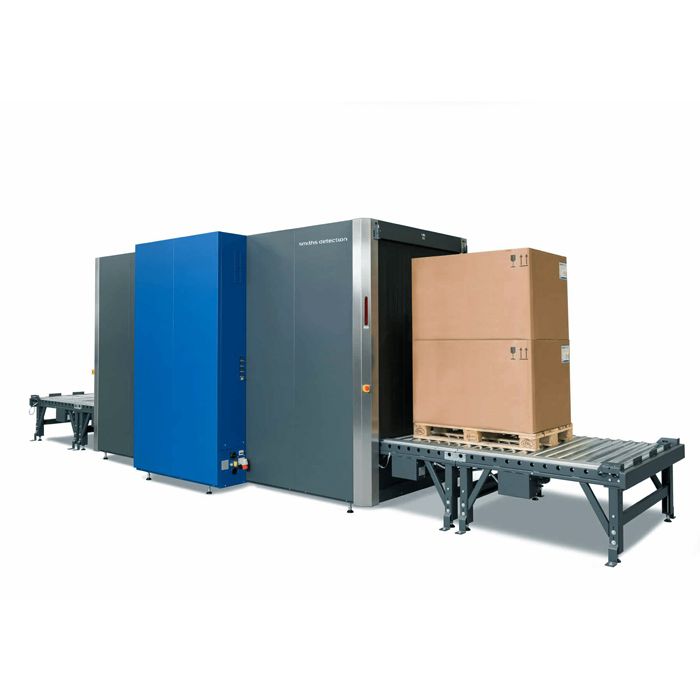

Smiths Detection HI-SCAN 145180-2is Large objects dual view scanner
Smiths Detection HI-SCAN 145180-2is Large objects dual view scanner
Brand : Smiths Detection
Model : HI-SCAN 145180-2is
X-Ray Source : Dual-Energy
Feature Highlights:
Universal X-ray system for palletised items
Dual view for shorter inspection times
Small-pitch roller conveyor, capacity 1,000kg/m – or up to 5,000 kg when evenly-distributed
Meets TSA requirements for max. skid size of 1.2 x 1.2 x 1.65 m
Typical penetration: 37mm steel
HI-MAT Plus technology for advanced material discrimination
Smiths Detection HI-SCAN 145180-2is Large objects dual view scanner
The innovative air cargo screening system HI-SCAN 145180-2is pro meets the demand for fast turnaround, high levels of security and an attractive total cost of ownership (TCO).
The innovative air cargo screening system HI-SCAN 145180-2is pro meets the demand for fast turnaround, high levels of security and an attractive total cost of ownership (TCO).
This state-of-the-art scanner is equipped with two 200 kV X-ray generators, one of which is uniquely positioned under the conveyor belt, to deliver excellent penetration, superior image quality, more efficiency, and easy access for maintenance and service.
In-depth research and extensive testing were undertaken to establish the optimum generator design for a long lifespan. This is just one contributing factor in the impressively low TCO – others include cost of spare parts; easy service access and as space is such an expensive commodity, the particularly compact footprint.
The generators are digitally controlled enabling advanced analysis and diagnosis capabilities and there is also an internal memory, storing important lifecycle data. Equipped with the latest HiTraX 3 CS electronics, the HI-SCAN 145180-2is pro offers state-of-the-art technology for advanced software features and image processing.
A robust conveyor features tightly packed rollers to support smooth passage through the inspection tunnel for pallets and other bulky and heavy objects. The large tunnel handles object up to 145cm x180cm. Integration into material handling systems is straightforward.
Featured Highlights
• Increases security and efficiency
• Supports fast turn-around
• Excellent penetration and superior image quality
• Easy maintenance access
• Compact footprint
General Specification:
| General Specifications | |
| Tunnel Dimensions (WxH) | 1470 (W) x 1820 (H) [mm] • 57.8” (W) x 71.7” (H) |
| Max. object size |
1450 (W) x 1800 (H) [mm] • 57.1” (W) x 70.9” (H) |
| Conveyor height | Approx. 570 mm (22”) |
| Belt speed | Typical 0.24[m/s] |
| Resolution (wire detectability) | Standard (view A): 38 AWG (0.1 mm) • typical: 39 AWG (0.08 mm) |
| Max. conveyor load | Max. 5000 kg / 11023 lbs (1000 kg/m / 672 lbs/ft) |
| Penetration (steel) | Standard (view A): 35 mm • typical (view A): 37 mm |
| Duty cycle | 100 %, no warm-up procedure required |
| X-ray Generator | |
| Anode voltage • cooling | 160 kV cp • hermetically sealed oil bath |
| Beam directions view A / view B | VA: diagonal from side / VB: diagonal from top to bottom |
| Image Generating System | |
| X-ray converter | L-shaped detector line |
| Grey levels stored | 4096 |
| Image presentation | B/W, Color |
| Digital video memory | 1280 x 1024 / 24 bit |
| Image evaluation functions | VARI-MAT, O2, OS, HIGH |
| Monitor | Flat Panel LCD Monitor |
| Additional Features | |
| X-ray leakage | Meets all applicable laws and regulations with respect to X-ray emitting devices |
| Sound pressure level | <70dBA |
| Operating temperature | +0°C up to +40°C C / -20°C - +60°C |
| Storage temperature | -15°C up to +60°C (5°F up to 140°F) (without UPS batteries) |
| Humidity | 5% - 90% (non-condensing) |
| Power supply | 230VAC + 10% / -15% 3-phase, 50Hz/60Hz ± 3Hz |
| Power consumption | Approx. 2.2 kVA |
| Protection class system | IP 20 / IP43 (sprinkler water protection) |
| Dimensions (WxHxL) | 5637 x 2160 x 2545mm |
| Weight | Approx. 3000kg (6600) lbs |
| Mechanical construction | Steel construction with aluminium housing, mounted on roller castors |
| Extra Features | Fading-in of date/time, luggage counter, user id-number, luggage marking system (acoustic), display of operating mode, REVIEW-feature (to recall previously visible image areas), zoom overview, free programmable keys, USB 2.0 interface, stepless zoom |
Smiths Detection HI-SCAN 145180-2is Heavy Duty Roller Conveyor Price in Bangladesh
Germany Computer & Telecom Ltd. (GCTL) is a leading supplier of advanced security solutions in Bangladesh, offering a range of X-ray baggage scanner from top brands like Smiths Detection. Their products are widely used in airports, government facilities and other high-security areas across the country. The price for the Smiths Detection HI-SCAN 145180-2is in Bangladesh is available upon request. For the latest pricing and more information, Please contact with us.
