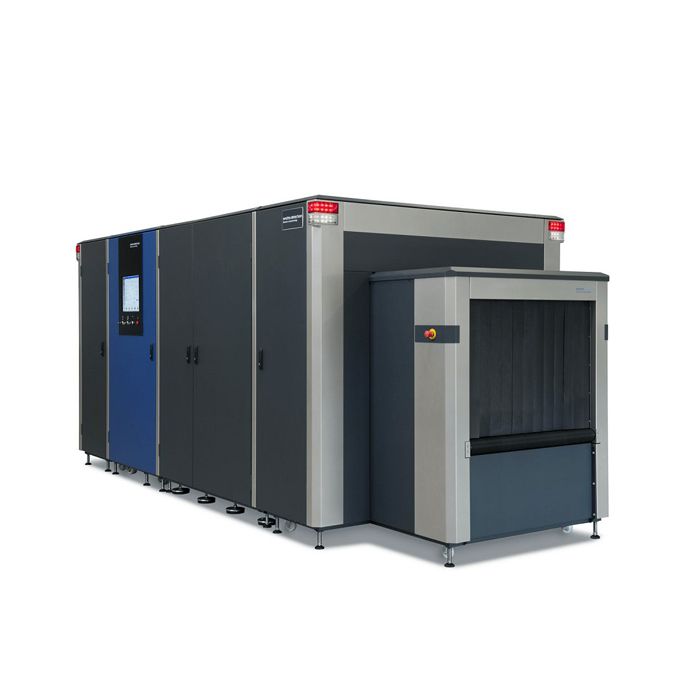

Smiths Detection HI-SCAN 10080 XCT Advanced CT Explosives Detection System

Smiths Detection HI-SCAN 10080 XCT Advanced CT Explosives Detection System X- ray Baggage Scanner

Complying with current TSA and ECAC regulations, the HI-SCAN 10080 XCT is a next generation high-speed, explosives detection system for hold baggage and air cargo. HI-SCAN 10080 XCT is the next generation of high-speed checked baggage automatic explosives detection system from Smiths Detection.

Developed to fulfill the ever-demanding requirements of security authorities, airport operators and integrators, the HI-SCAN 10080 XCT provides unique performance capabilities based on Smiths Detection’s proven dual-energy X-ray line scanner with a proprietary single energy volumetric Computed Tomography (CT) scanner.

The data generated by the two technologies in the HI-SCAN 10080 XCT provide the highest resolution images possible to optimize detection performance. The 2-D images from the dual-view, dual-energy line scanner are of the same high caliber you expect from Smiths Detection. The high resolution 3-D images from the CT scanner will also improve the on-screen resolution at all levels.

With a belt speed of 0.5m/s (98.5ft/min) the HI-SCAN 10080 XCT provides a throughput of up to 1800 bags/hour. The large 1070 x 810mm (42.1 x 31.9in) rectangular tunnel size enables bags up to 1000 x 800mm (39.4 x 31.5) to be screened automatically at Level 1. These capabilities enable the HI-SCAN 10080 XCT to provide the most economical solution for airport checked baggage screening demands.

HI-SCAN 10080 XCT is designed to easily integrate into newly implemented Hold Baggage System (HBS) configurations or as a replacement for current baggage handling systems.
Since many currently deployed baggage handling systems operate at 0.5m/s (98.5ft/min), installing the HI-SCAN 10080 XCT reduces infrastructure changes while meeting the next generation regulatory requirements.

The HI-SCAN 10080 XCT is EU / ECAC EDS Standard 3.0 and 3.1 approved and has passed certification from the United States Transportation Security Administration (TSA). iCMORE modules enable the automated detection of dangerous goods and prohibited items. They increase safety and screening performance without impacting certified explosives detection algorithms.

Technical Specification:

• Dual-energy X-ray line scanner with full 3-D volumetric Computed Tomography (CT) imaging and reconstruction
• Belt speed of 0.5m/s (98.5ft/min)
• High throughput of up to 1800 bags per hour
• Large 070 x 810mm (42.1 x 31.9in) tunnel size
• High resolution images
• Optional iCMORE modules for expanded detection capabilities

Smiths Detection HI SCAN 10080 XCT Advanced CT explosives detection system Price in Bangladesh

Germany Computer & Telecom Ltd. (GCTL) is a leading supplier of advanced security solutions in Bangladesh, offering a range of X-ray baggage scanner from top brands like Smiths Detection. Their products are widely used in airports, government facilities and other high-security areas across the country. The price for the Smiths Detection HI-SCAN 10080 XCT in Bangladesh is available upon request. For the latest pricing and more information, Please contact with us.
