Brand : Smiths Detection Model : HI-SCAN 100100T-2is Tube Anode Voltage : 200KV
Feature Highlights:
Ideal method of inspecting oversized baggage and freight Ease of handling heavy goods via low conveyor belt Outstanding image quality with new HiTraX electronics Wire detectability AWG 38 New HI MAT Plus technology for better material distinction ECAC Regulation (EU) 2015/1998 DGAC-STAC Approved (France)

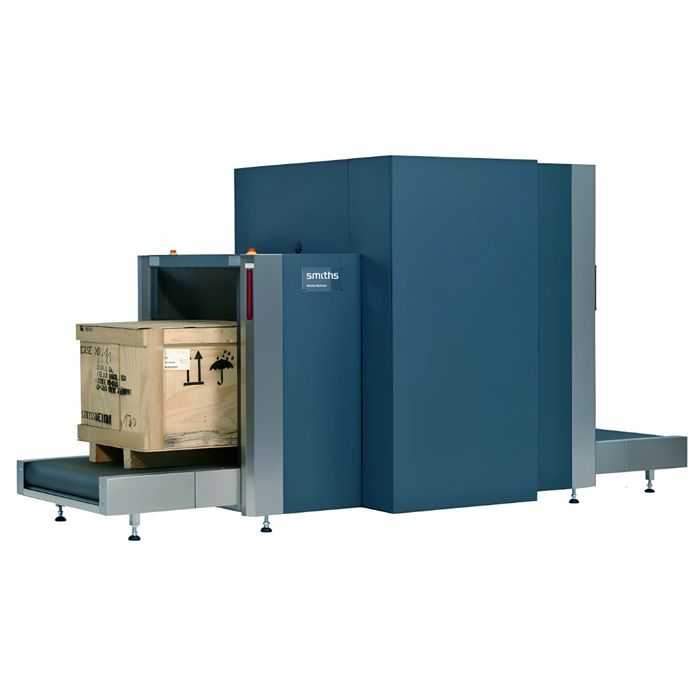

The Smiths Detection HI-SCAN 100100T-2is is a state-of-the-art dual-view X-ray baggage scanner designed for high-security applications. It utilizes cutting-edge technology to provide detailed images from two different angles, enhancing the detection and analysis of a wide range of threats and contraband. This scanner is ideal for use in airports, customs, and other high-security environments, offering superior image quality and fast scanning speeds.
Product Overview:
Equipped with two generators arranged at a 90° angle to each other, the HI-SCAN 100100T-2is provides Dual-view screening of objects up to 100 x 100cm (39 x 39in). The dual-view screening mode provides reliable inspection of tightly packed objects in a single process, while shortening inspection times and increasing the effectiveness of the procedure.
With the low installation height of the HI-SCAN 100100T-2is conveyor belt, it is simple to connect supplementary feed and/or discharge conveyor systems for heavy freight.
Featured Highlights:
• Optional lithium battery detection • Ideal for inspecting oversized baggage and freight • Dual-view shortens inspection times • Low conveyor belt height allows for easy handling • Maximum load of 220kg • HI-MAT Plus technology for better material distinction • Typical penetration: 35mm of steel (view 2), 37mm (view 1)
Technical Specification:
Features
Specification
Dimensions (L x W x H)
3,758 x 1,595 x 1,900 mm
Max. Scanning Object Size
1,000 (W) x 1,000 (H) mm
X-ray Tube Anode Voltage
200 kV
X-ray Tube Cooling
Sealed oil bath with forced air wire
Resolution
38 AWG (0.1 mm)
Dose-rate
≤ 0.9 μSv/h (μGy/h)
Noise Level
≤ 65 dB
Conveyor Speed
0.2 m/s
Maximum Belt Load
220 KG
Leakage
≤ 0.25 mA
Film Safety
ISO 1600 (33 DIN)
Weight
Approx. 1,050kg
Typical Penetration
35mm of steel (view 2), 37mm (view 1)
Service Warranty
1 Year Official Warranty
Smiths Detection HI-SCAN 100100T-2is Baggage Scanner Price in Bangladesh
GCTL is Leading Importer, Retailer, Wholesale and Trader of Smiths Detection HI-SCAN 100100T-2is Baggage Scanner in Bangladesh, Also Smiths Detection HI-SCAN 5030C, Smiths Detection 6040-2is Dual View Energy X Ray Baggage Scanner and Smiths Detection HI-Scan 7555i X Ray Baggage Scanner from Dhaka, Bangladesh.
Designed to meet the needs of airports, customs facilities, transportation operations, carriers and parcel services in applications where high security and the screening of large objects are required. The low installation height of the conveyor system facilitates the connection of supplementary feed and/or discharge conveyor systems for heavy freight.
X-ray Baggage Screening: Smiths Detection is the world's number one security company with the most comprehensive range of x-ray scanners in the security industry. From small mail items to large cargo, Smiths Detection's system provides total solutions based on expertise in each field to meet customer needs. HI-SCAN 100100T-2is Featuring a low conveyor belt, the dual-view X-ray HI-SCAN 100100T-2is is designed for screening over sized baggage and bulky freight.
