QR code scanner ticket verification system:
VRT300 is a revolutionary QR code scanner ticket verification system. It integrates QR code, RFID, NFC and other scanning methods to support verification of different types of electronic tickets. The equipment is equipped with a high-definition display screen, and tourists can see intuitive ticket checking information on the display screen. A voice module is also configured to remind tourists. The most prominent advantage of VRT300 is that it can be connected to any third-party ticketing system without modifying any code. The ticketing system only needs to be responsible for ticketing business, and VRT300 is responsible for ticket verification. It saves a lot of development work for ticketing system companies.
Technical parameter
Application Scenarios:
Museum entry control, Concert venue access control, Convention center entrance management, Zoo entry gate control, Ski resort access control, Sports complex entry management, Theme park water park entry management, Fitness center access control, theme park automatic ticket inspection, Cinema ticket check,etc.
Features
- Barcode, QR code, Mifare, NFC, PSAM card and other authentication methods are all in one.
- Fast reading speed, high precision, the fastest reading speed can reach 0.1 seconds.
- Intuitive display of ticket verification information, supporting multiple languages.
- The voice broadcast of ticket inspection results supports custom recorded voice broadcast.
- Simple operation, combined with user-friendly tools, make equipment debugging more convenient.
- It can be connected to any third-party ticketing system without modifying the code.
- TCP/IP communication.
- SDK provided support secondary development.
- Built-In relay, support open gate.
- Support scan QR code, NFC, 13.56Mhz RFID card.
Specification:
|
General Parameter |
|
|
Output interface |
Ethernet |
|
Access control Interface |
Relay output, exit button |
|
Indicator method |
Display, buzzer, voice |
|
Image sensor |
480,000-pixel CMOS image sensor |
|
Maximum resolution |
800*600 |
|
OS |
Linux |
|
Window material |
tempering glass |
|
Display size |
3.33 inch |
|
Speaker decibel |
71 dB, 1 m away from the speaker |
|
QR code recognition parameter |
|
|
Identification code system |
QR、PDF417、CODE128、EAN13、 EAN18 |
|
Supported decoding |
Screen code |
|
Reading distance |
15mil QR: 30.9~130.4mm (in dark room, cell phone brightness 100) |
|
Reading accuracy |
≥8mil |
|
Reading speed |
100ms per time(average), support reading continuously |
|
Read the Angle |
Center tilt angle: 46.2°; center deflection angle: 43.2° |
|
FOV |
Horizontal: 65.3°; vertical: 55.8°; field 79.5° |
|
RFID reading parameter |
|
|
Supported cards |
ISO 14443A, ISO 14443B protocol cards |
|
Reading method |
Physical UID, M1 card sector read and write, CPU card file read and write |
|
Working frequency |
13.56MHz |
|
Reading distance |
M1 card 38mm; drip card 21mm |
|
PSAM card |
|
|
Protocol |
ISO7816-1/2/3, support T=0 |
|
Electric Parameter |
|
|
Working voltage |
DC9V-15V |
|
Working current |
293mA(12V typical value) |
|
Power consumption |
3.52W(12V typical value) |
|
Relay |
30V/1A DC |
|
Work environment parameter |
|
|
ESD protection |
±15kV(Air discharge),±4kV(contact discharge) |
|
Working temp |
-20°C-70°C |
|
Storge temp |
-40°C-80°C |
|
RH |
5%-95%（No condensation）（environment temperature） |
|
Ambient light |
0-80000Lux( Non direct sunlight ) |

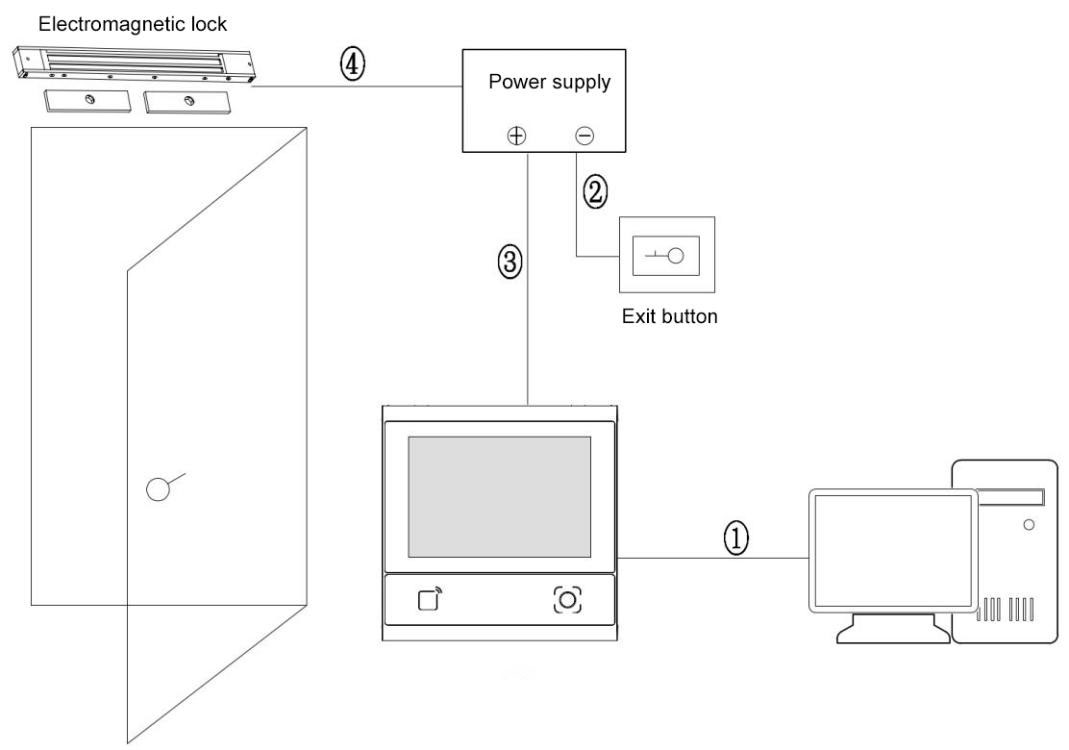

Access control application: ( Access control door lock Facility )

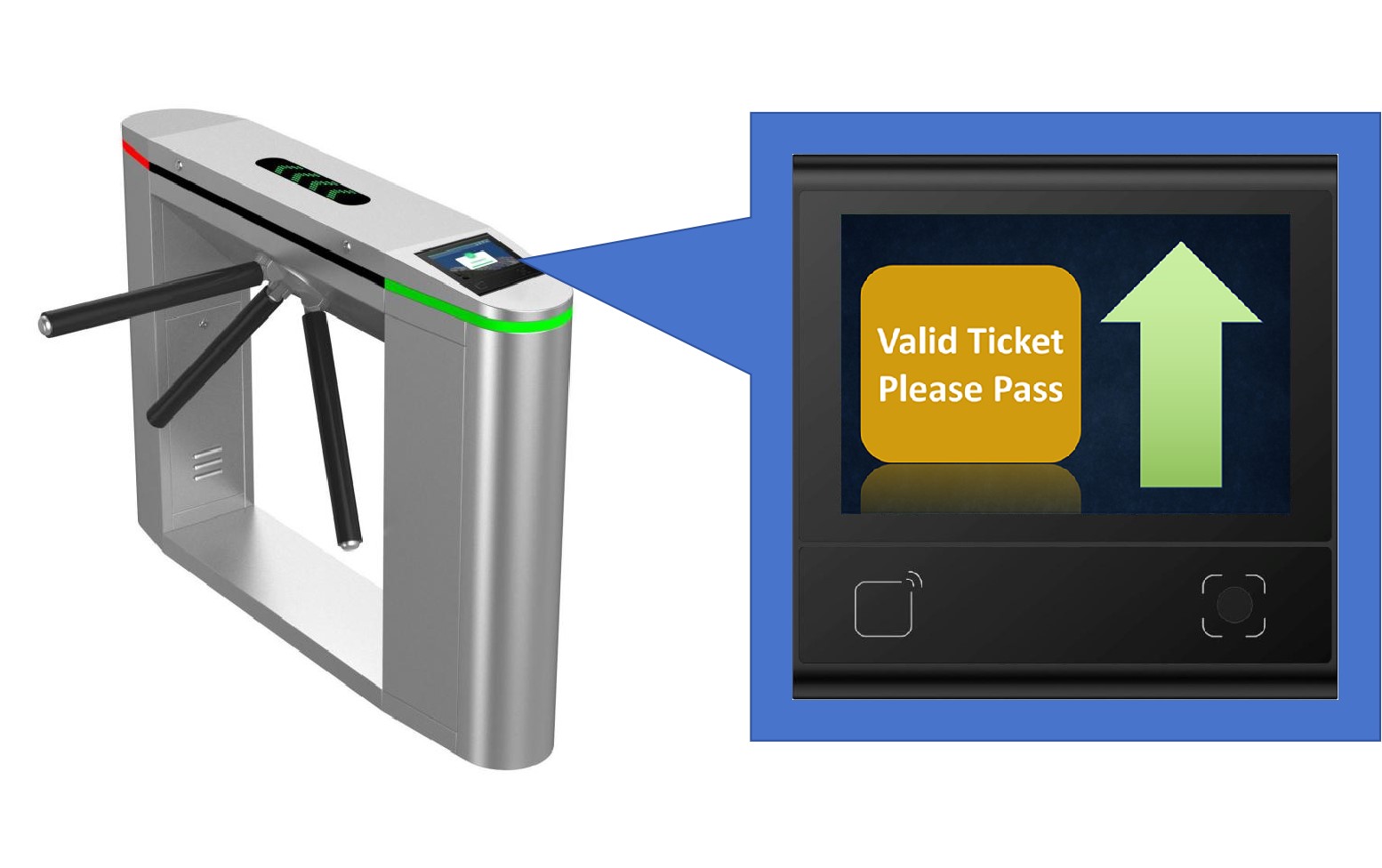

Turnstile gate embedded:
