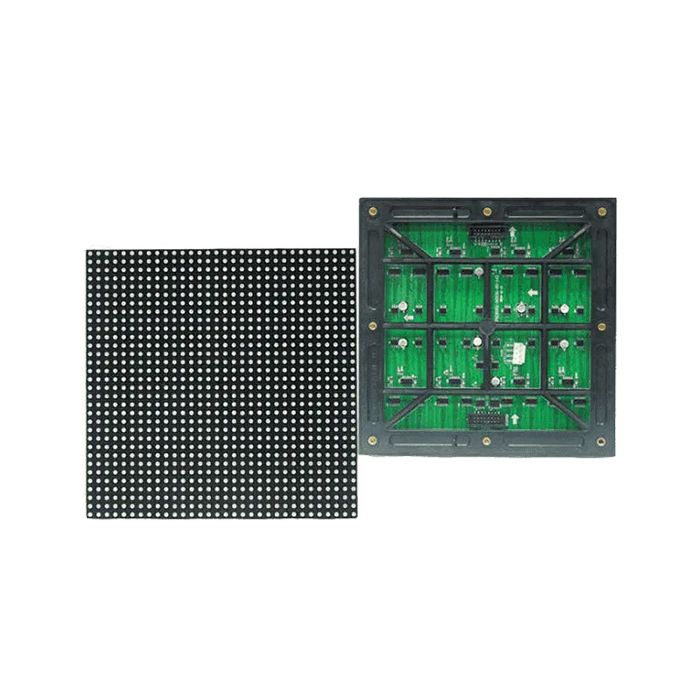

P8 SMD Outdoor LED Module
P8 SMD Outdoor LED Module
Pixel Pitch: 8.0 mm
LED Type: SMD 3535
Module Size: 320 mm × 160 mm
Module Resolution: 40 (H) × 20 (V) pixels
Brightness (White): ~5,500–6,000 cd/m² (typical)
Viewing Angle (H / V): ~140° / ~140°
P8 SMD Outdoor LED Module
The P8 mm SMD Outdoor LED Display Module features an 8 mm pixel pitch with high-brightness SMD3535 LEDs in a robust outdoor-rated design (320×160 mm panel size) for clear visuals from distance, making it perfect for outdoor signage, billboards and large-scale displays.
Key Features
-
8 mm pixel pitch (P8) for outdoor viewing distances with sharp clarity.
-
SMD3535 full-colour LED package ensures vibrant colour output and excellent uniformity under daylight conditions.
-
Standard module size 320 × 160 mm (resolution 40 × 20 pixels) for flexible cabinet assembly and efficient outdoor installation.High brightness of approximately 5,500–6,000 cd/m² (or higher) for strong daylight visibility.
-
Wide viewing angles (~140° horizontal and vertical) and high refresh rate (≥1,920 Hz) for smooth motion and large audience coverage.
-
Weather-proof design with front protection rated at IP65, built for reliable outdoor operation under harsh conditions.
-
Constant-current driving with 1/4 or 1/5 scan options, delivered with data & power cables and waterproof rubber ring for longevity.
Technical Specifications:
|
Specification |
Detail |
|
Pixel Pitch |
8.0 mm |
|
LED Type / Package |
SMD 3535 |
|
Module Size |
320 mm × 160 mm |
|
Module Resolution |
40 (H) × 20 (V) pixels |
|
Brightness (White) |
~5,500–6,000 cd/m² (typical) |
|
Viewing Angle (H / V) |
~140° / ~140° |
|
Best Viewing Distance |
Approx. 8 m and up |
|
Driving / Scan Mode |
Dynamic constant-current, 1/4 or 1/5 scan |
|
Maximum Power Consumption |
~750 W/m² |
|
Average Power Consumption |
~350 W/m² |
|
Operating Temperature |
-20 °C to +60 °C |
|
Protection Rating |
IP65 (front) |
|
Lifetime |
≥ 100,000 hours |
| Call for Price | No |
|---|---|
| Brand | Varito |
